ArtilleryIn service
Self-propelled artillery
M109 howitzer is a self-propelled artillery originating in United States. The cited manufacturer or builder is Cadillac General Motors Chrysler BMY Harsco , formerly Bowen & McLaughlin York (1974–1994) United Defense (1994–2005) BAE Systems Inc. (2005–present) Samsung (1985–2015) Hanwha (2015–present).

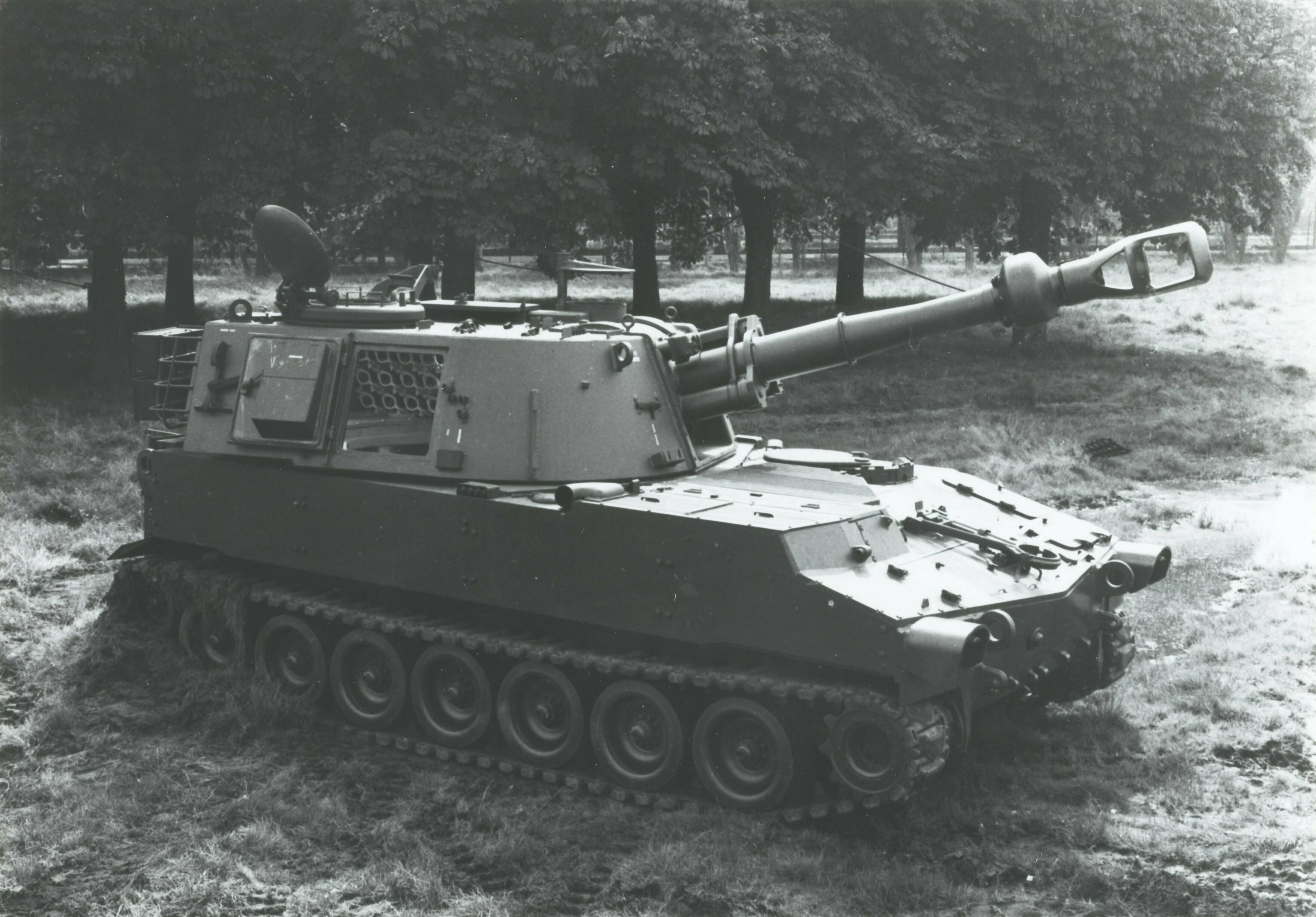

United StatesEarly Dutch Army M109 howitzer, viewed from the right front. Source dates the photograph between 1975 and 1985; configuration may differ from later variants.
Leger Film- en Fotodienst (LFFD) · CC BY-SA 4.0 · CC BY-SA 4.0 · Source ↗Technical data
Self-propelled artillery
United States
M109: 1963–present M109A1: 1973–present M109A2: 1979–present M109A6: 1994–present M109A7: 2015–present
See Operators
Vietnam War Cambodian Civil War Yom Kippur War Western Sahara War Iran–Iraq War 1982 Lebanon war South Lebanon conflict (1985–2000) Persian Gulf War Iraq War Gaza War 2014 Israel–Gaza conflict War in Iraq (2013-2017) Yemeni Civil War (2014–present) , Saudi Arabian-led intervention in Yemen Syrian Civil War Russian invasion of Ukraine Gaza war 2025 Cambodian–Thai clashes
1952–1962
Cadillac General Motors Chrysler BMY Harsco , formerly Bowen & McLaughlin York (1974–1994) United Defense (1994–2005) BAE Systems Inc. (2005–present) Samsung (1985–2015) Hanwha (2015–present)
M109A1/A2/A3/A4/A5: empty weight of 52,000 lbs (23.6 metric tons) and combat weight of 55,000 lbs (24.95 metric tons) M109A6: non-combat weight of 56,400 lbs (25.6 metric tons) and combat weight of 62,000 lbs to 63,615 lbs (28.1 metric tons to 28.9 metric tons) M109A7: non- combat weight of 74,000 to 78,000 lbs (33.6 metric tons to 35.4 metric tons) and combat weight of 84,000 lbs (38 metric tons)
M109: hull length of 20.3 ft and length with gun forward of 30 ft M109A1/A2/A3/A4/A5/A6/A7: hull length of 20.3 ft, length with gun forward of 32 ft
10 ft 4 in (3.15 m)
10 ft 8 in (3.25 m)
6 (commander, driver, gunner, 3 loaders) M109A6–A7: 4 (commander, driver, gunner, loader)
separate loading, bagged charge
interrupted screw
360°
Maximum: 4 rpm/3 min. Sustained: 1 rpm
M109A1–A4: 18.1 km (11.2 mi) (M107, HE) 23.5 km (14.6 mi) (M549A1, RAP/HE) M109A5–A7: HE: 21 km (13 mi) RAP : 30 km (19 mi) Excalibur : 40 km (25 mi)
Aluminum alloy
M109: M126 155 mm 23 caliber, 28 rounds M109A1–A4: Watervliet Arsenal M185 155 mm 39 caliber, 28 rounds (A1) or 36 rounds (A2–A4) M109A5–A7: M284 155 mm 39 caliber
.50 caliber (12.7 mm) M2 machine gun
M109: Detroit Diesel 8V71T 8-cylinder water-cooled turbocharged diesel engine 390 hp @ 2,300 rpm M109A1–A4: Detroit Diesel 8V71T 8-cylinder water-cooled supercharged diesel engine 405 hp @ 2.300 rpm M109A5–A6: Detroit Diesel 8V71T 8-cylinder water-cooled supercharged diesel engine 440 hp M109A7: V903 675 hp
Allison Transmission XTG-411-2A, 4 forward, 2 reverse M109A6: Allison Transmission XTG-411-4 M109A7: HMPT-800
torsion bar
M109A7: longitudinal slope: 60 % lateral slope: 40 % trench: 72 in (1.8 m) fording: 42 in (1.07 m)
216 mi (350 km) M109A7: 186 mi (300 km)
35 mph (56 km/h) M109A7: 38 mph (61 km/h)
Djibouti
Greece
Iraq
Iran
Jordan
Morocco
Saudi Arabia
Brazil
Chile
Egypt
Kuwait
Lebanon
Pakistan
Peru
Spain
Taiwan
Ukraine
United Arab Emirates
Indonesia
Austria
Bahrain
Israel
Latvia
Portugal
Thailand
United States
Switzerland
Republic of Korea
Main armament M109: M126 155 mm 23 caliber, 28 rounds M109A1–A4: Watervliet Arsenal M185 155 mm 39 caliber, 28 rounds (A1) or 36 rounds (A2–A4) M109A5–A7: M284 155 mm 39 caliber
Other Paladin specifications include the following: • Crew: Paladin, four; FAASV, five • Combat loaded weight: Paladin, 32 Tons; FAASV, 28 tons
Other Paladin specifications include the following: • Crew: Paladin, four; FAASV, five
Cruising range: Paladin, 214 miles; FAASV, 220 miles
Max./sustained rates of fire: 4/1 rounds/min.
Maximum range: High Explosive Rocket Assisted Projectile (HE/ RAP), 22/30 (km)
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 23,600 kg | Wikipedia contributors | superseded |
| 28 Sept 2026 | 23,600 kg | Wikipedia contributors | superseded |
| 28 Sept 2026 | 23,600 kg | Wikipedia contributors | superseded |
| 28 Sept 2026 | 23,600 kg | Wikipedia contributors | approved |
| 28 Sept 2026 | 23,600 kg | Wikipedia contributors | superseded |
| 28 Sept 2026 | 23,600 kg | Wikipedia contributors | superseded |
| 28 Sept 2026 | 23,600 kg | Wikipedia contributors | superseded |
M109 howitzer equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
AustriaReported count for M109 PzHb M109 A5Ö. Country-wide list; no individual service specified. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 53. Origin: United States Austria. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
BahrainArmy exact named equipment holdings: M109A5. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
BrazilArmy exact named equipment holdings: M109A5; M109A3. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
ChileArmy exact named equipment holdings: M109A3. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / SP 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
DjiboutiReported count for M109L. Service scope: Djiboutian Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 10. Origin: United States Italy. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
EgyptArmy exact named equipment holdings: M109A5. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
GreeceGreece Army holdings only. Combined listed M109 variants; no invented subtype split.
IndonesiaIndonesia Army holdings only. M109A4 self-propelled howitzers.
IranReported count for M109A1. Service scope: Iranian Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): quantity: 150. Origin: United States Iran. The listed variants/roles are the scope, not an immediately deployable count. Dates are the count-cell citations' stated source period (2026), not the article revision. 2026 cited source edition. Edition or publication years do not claim an exact inventory census day.
IraqArmy exact named equipment holdings: M109A5. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
IsraelArmy exact named equipment holdings: M109A5. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
ItalyReported count for M109 howitzers. Service scope: Italian Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 11. Origin: unstated. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
JordanReported count for M109A2. Service scope: Royal Jordanian Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): number: 358. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Kuwait
LatviaReported count for M109A5Ö / M109 Rechenstellenpanzer M109. Service scope: Latvian Land Forces; does not replace a national total. 2 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 47 / quantity: 10. Origin: United States Austria. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
LebanonArmy exact named equipment holdings: M109A5. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / SP 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
MoroccoArmy exact named equipment holdings: M109A5. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
OmanReported count for M109A0. Service scope: Royal Army of Oman; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): quantity: 15. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
PakistanArmy exact named equipment holdings: M109A5. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
PeruArmy holdings of the exact named M109A2 component, counted as equipment units: active, operational reserve and training equipment, excluding equipment in store. Service-scoped IISS observation, not a national total or combat-readiness figure. No parent, sibling, mounted-weapon or heading aggregate quantity inherited.
PortugalArmy exact named equipment holdings: M109A5. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / SP 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
Saudi ArabiaSaudi Arabia Army holdings only. M109A1B/A2 combined self-propelled howitzer holdings.
South KoreaSouth Korea Army holdings only. Army M109A2/K55/K55A1 category in source; no unreported subtype split.
SpainArmy exact named equipment holdings: M109A5. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / SP 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
SwitzerlandOperations Command exact named equipment holdings: M109 KAWEST. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / SP 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
TaiwanTaiwan Army holdings only. Army M109A2/A5 combined self-propelled howitzer holdings.
ThailandArmy exact named equipment holdings: M109A5. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / SP 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
UkraineReported count for M109 · M109A3GN M109A3DK M109A4BE M109A5Ö M109L M109A6 "Paladin". Country-wide list; no individual service specified. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): number: 90. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. Dates are the count-cell citations' stated source period (2024), not the article revision. 2024 cited reference period. Edition or publication years do not claim an exact inventory census day.
United Arab EmiratesUnited Arab Emirates Army holdings only. Army M109L47 self-propelled howitzers.
United StatesUS Army exact named equipment holdings: M109A6; M109A7 (ε850 more M109A6 in store). Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: ARTILLERY / SP 155mm. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
Djibouti, Greece, Iraq, Iran, Jordan, Morocco, Saudi Arabia, Brazil, Chile, Egypt, Kuwait, Lebanon, Pakistan, Peru, Spain, Taiwan, Ukraine, United Arab Emirates, Indonesia, Austria, Bahrain, Israel, Latvia, Portugal, Thailand, United States, Switzerland, Republic of Korea
Equipment reference ↗Reported count for M109. Service scope: modern equipment of the Brazilian Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): number: 109 (37 M109A3, 40 M109A5, 32 M109A5+). Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. Dates are the count-cell citations' stated source period (2024), not the article revision. 2024 cited publication year. Edition or publication years do not claim an exact inventory census day.
Reported count for M109A3 CL M109A5 CL. Service scope: current equipment of the Chilean Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): numbers: 48. Origin: US. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Reported count for M109. Service scope: Egyptian Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): number: 325. Origin: United States Egypt. The listed variants/roles are the scope, not an immediately deployable count. Dates are the count-cell citations' stated source period (2024), not the article revision. 2024 cited source edition. Edition or publication years do not claim an exact inventory census day.
Reported count for M109. Service scope: current equipment of the Iraqi Ground Forces; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): quantity: 220. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. Dates are the count-cell citations' stated source period (2024), not the article revision. 2024 cited source edition. Edition or publication years do not claim an exact inventory census day.
Lower-bound count for M109. Service scope: Royal Moroccan Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): quantity: >300. Origin: unstated. The listed variants/roles are the scope, not an immediately deployable count. Dates are the count-cell citations' stated source period (2024), not the article revision. 2024 cited source edition. Edition or publication years do not claim an exact inventory census day.
Reported count for M109A5. Service scope: Portuguese Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 18. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Reported count for M109A5E. Service scope: Spanish Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 96. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Reported count for M-109 KAWEST WE. Service scope: Swiss Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): quantity (2024): 133. Origin: United States Switzerland. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Reported count for M109. Service scope: Royal Thai Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 20. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Reported count for M109A6 Paladin. Service scope: United States Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): numbers: 370. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
