Military transport & logistics1996–present
Family of 4×4 and 6×6 tactical trucks with 2.5-ton, 5-ton, 9-ton and 10-ton payload (U.S. tons)
Family of Medium Tactical Vehicles is a family of 4×4 and 6×6 tactical trucks with 2.5-ton, 5-ton, 9-ton and 10-ton payload (U.S. tons) originating in United States. The cited manufacturer or builder is Stewart & Stevenson (original) Armor Holdings (acquired Stewart & Stevenson) BAE Systems (acquired Armor Holdings) Oshkosh Corporation (current; won rebuy competition).
United StatesFamily of Medium Tactical Vehicles

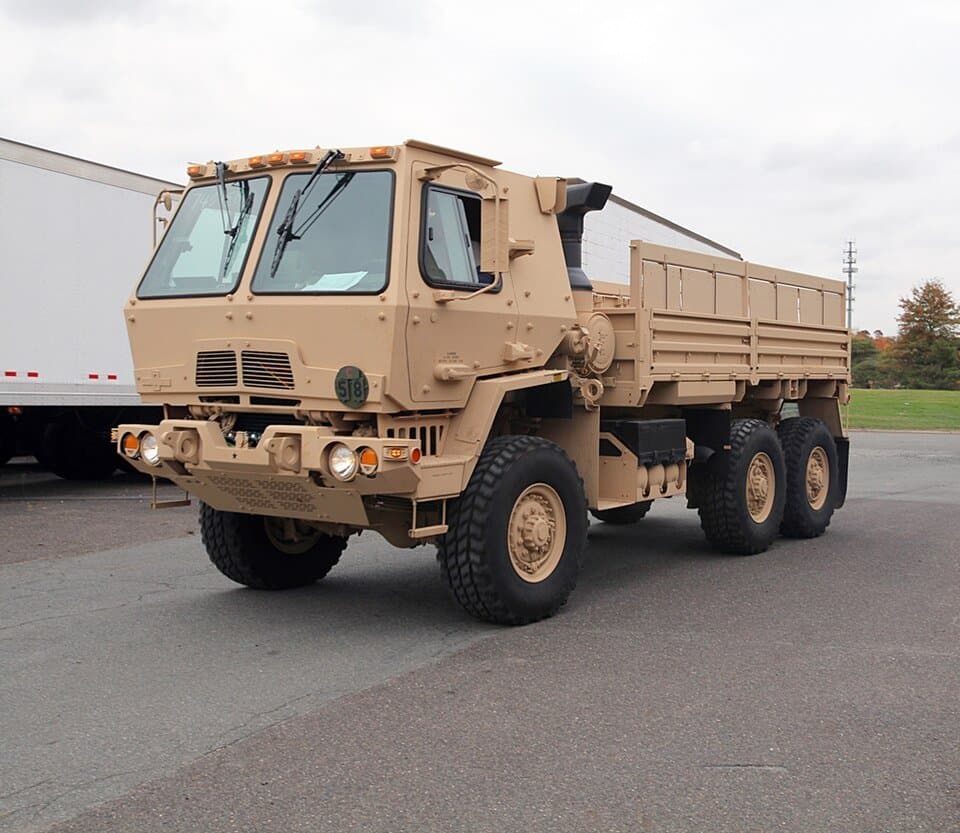

http://www.defense.gov · Public domain · Resized · Public domain · Source ↗ · ModifiedFamily of 4×4 and 6×6 tactical trucks with 2.5-ton, 5-ton, 9-ton and 10-ton payload (U.S. tons)
United States
1996–present
United States Army and others (see Operators)
Steyr of Austria (original); Stewart & Stevenson for FMTV requirement. IP of the FMTV is owned by U.S. government
1988 (for FMTV requirement by Stewart & Stevenson)
Stewart & Stevenson (original) Armor Holdings (acquired Stewart & Stevenson) BAE Systems (acquired Armor Holdings) Oshkosh Corporation (current; won rebuy competition)
1982–present
BAE Systems and legacy companies – 74,000 trucks and trailers Oshkosh Defense – 40,500 trucks and trailers as of August 2021 (production continues)
( full details and National Stock Numbers (NSNs) in main text ) M1078 (LMTV Cargo) M1079 (LMTV Van) M1080 (LMTV Chassis (3.9 m)) M1081 (LMTV Cargo-airdrop LVAD) M1082 (LMTV Trailer) M1083 (MTV Cargo) M1084 (MTV Cargo with MHE) M1085 (MTV Long Wheelbase Cargo) M1086 (MTV Long Wheelbase Cargo with MHE) M1087 (MTV Expansible Van) M1088 (MTV Tractor) M1089 (MTV Wrecker) M1090 (MTV Dump) M1091 (MTV 1,500 gallon Fuel Tanker) M1092 (MTV Chassis (4.1 m)) M1093 (MTV Cargo-airdrop LVAD) M1094 (MTV Dump-airdrop LVAD) M1095 (MTV Trailer) M1096 (MTV Long Wheelbase (4.5 m) Chassis) M1140 (HIMARS, launcher chassis) M1147 (Trailer, FMTV Load Handling System) M1148 (Load handling system, 8 metric tonnes) M1157 (10-ton dump) XM1160 (10-ton MEADS air defence chassis (5.5 m wheelbase)) Mongoose Mobile Launcher Chassis (MLC) (cancelled) M1273 (MTV 10-ton chassis)
10,390 kg (22,904 lbs) (curb w/fuel); 2,268 kg (5000 lbs) (payload)
6.739 m (22.1 feet)
2.438 m (7.99 feet)
2.83 m (9.28 feet)
2
a-kit/b-kit; U.S. Army Long Term Armor Strategy (LTAS) compliant
Caterpillar (CAT) C7, 7.2-liter, 6-cylinder inline water-cooled diesel developing 275 hp (EPA 2007)
rated at 2.5 U.S. tons
Allison 3700 SP 7-speed automatic with integral single speed transfer case
Parabolic tapered leaf springs and telescopic shock-absorbers
212 litres (56 US Gallons)
483 km (300 miles)
94 km/h (58 mph)
Power-assisted, front axle
Albania
Afghanistan
Argentina
Canada
Cameroon
Greece
Djibouti
Iraq
Israel
Jordan
Kenya
Kosovo
Kuwait
Lebanon
Moldova
New Zealand
Poland
Romania
Saudi Arabia
Singapore
Somalia
South Korea
Taiwan
Thailand
Tunisia
United Arab Emirates
Uganda
United States
Ukraine
The Light Medium Tactical Vehicle (LMTV) has a 2.5-ton capacity (cargo and van models).
The Medium Tactical Vehicle (MTV) has a 5-ton capacity (cargo and long-wheelbase-cargo with and without materiel handling equipment, tractor, van, wrecker, and dump truck models).
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 6.739 m | Wikipedia contributors | superseded |
Family of Medium Tactical Vehicles equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
Afghanistan
Albania
Argentina
CameroonReported count for FMTV. Service scope: Cameroon Army; does not replace a national total. 1 distinct quantity component(s) from the same source list; shared rowspan cells counted once. Explicit source inventory scope: active; no other stock status or total inferred. Count column(s): in service: 2. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Reported count for FMTV. Service scope: Cameroon Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): in service: 2. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Canada
Djibouti
GreeceReported count for FMTV. Service scope: Hellenic Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 300. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
IraqApproximate count for FMTV. Service scope: current equipment of the Iraqi Ground Forces; does not replace a national total. 1 distinct quantity component(s) from the same source list; shared rowspan cells counted once. Explicit source inventory scope: active; no other stock status or total inferred. Count column(s): in service: ≈500. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Israel
JordanApproximate count for FMTV. Service scope: Royal Jordanian Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): number: ≈ 300. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Kenya
Kosovo
Kuwait
LebanonReported count for Oshkosh FMTV. Country-wide list; no individual service specified. 2 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): quantity: 57 at least / quantity: 5. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Lithuania
Moldova
New Zealand
North MacedoniaLower-bound count for Oshkosh FMTV. Service scope: Army of North Macedonia; does not replace a national total. 1 distinct quantity component(s) from the same source list; shared rowspan cells counted once. Explicit source inventory scope: active; no other stock status or total inferred. Count column(s): in service: 10+. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Poland
Romania
Saudi ArabiaReported count for FMTV · ?. Service scope: Saudi Arabian Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 100. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Singapore
Somalia
South Korea
Taiwan
Thailand
Tunisia
Uganda
UkraineLower-bound count for MTV. Country-wide list; no individual service specified. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): number: 600+. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
United Arab Emirates United StatesReported count for Family of Medium Tactical Vehicles. Country-wide list; no individual service specified. 1 distinct quantity component(s) from the same source list; shared rowspan cells counted once. Explicit source inventory scope: active; no other stock status or total inferred. Count column(s): quantity: 108,800 (Active in all services). Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Approximate count for FMTV. Service scope: current equipment of the Iraqi Ground Forces; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): in service: ≈500. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Lower-bound count for Oshkosh FMTV. Service scope: Army of North Macedonia; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): in service: 10+. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Reported count for Family of Medium Tactical Vehicles. Country-wide list; no individual service specified. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): quantity: 108,800 (Active in all services). Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
