Combat aircraftIn service
Close air support attack aircraft
Fairchild Republic A-10 Thunderbolt II is a close air support attack aircraft originating in United States. It was built by Fairchild Republic. Reported operators include United States Air Force.
United StatesFairchild Republic A-10 Thunderbolt II

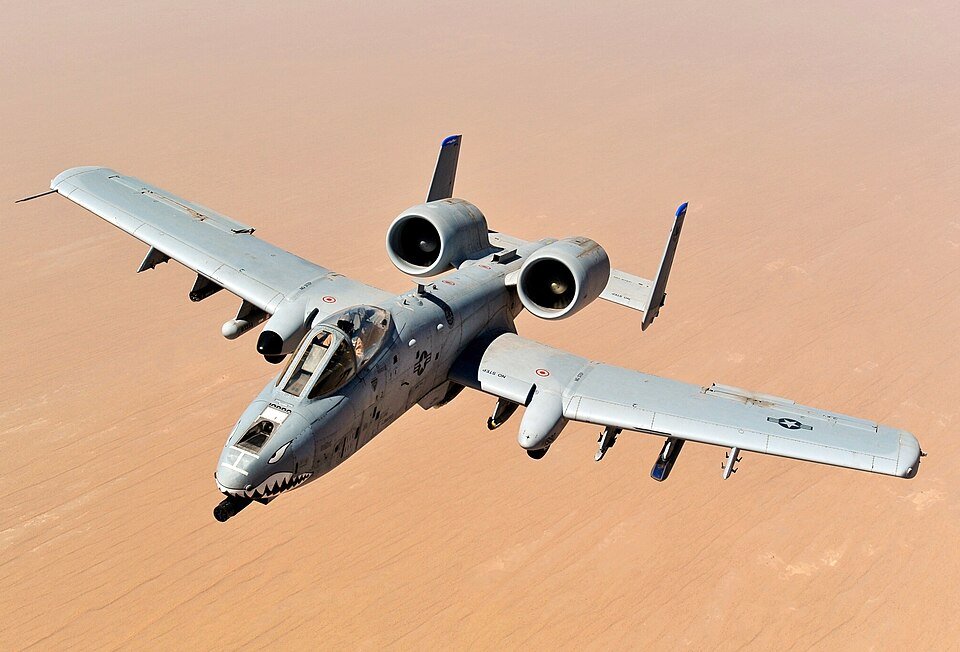

Master Sgt. William Greer, U.S. Air Force · Public domain · Resized · Public domain · Source ↗ · ModifiedTechnical data
Close air support attack aircraft
United States
Fairchild Republic
In service
United States Air Force
716
1972–1984
October 1977
10 May 1972 ( 1972-05-10 )
1
53 ft 4 in (16.26 m)
57 ft 6 in (17.53 m)
14 ft 8 in (4.47 m)
506 sq ft (47.0 m 2 )
24,959 lb (11,321 kg)
30,384 lb (13,782 kg) Close air support (CAS) mission: 47,094 lb (21,361 kg) Anti-armor mission: 42,071 lb (19,083 kg)
46,000 lb (20,865 kg)
11,000 lb (4,990 kg) internal
2 × General Electric TF34 -GE-100A turbofans , 9,065 lbf (40.32 kN) thrust each
381 kn (439 mph, 706 km/h) at sea level, clean
300 kn (340 mph, 560 km/h)
250 nmi (288 mi, 463 km) CAS mission: 250 nmi (290 mi; 460 km) representing a 1 hour 53 minute of loiter time at 5,000 ft (1,500 m), and 10 minutes of combat Anti-armor mission: 252 nmi (290 mi; 467 km) with sea-level penetration and exit, 30 min combat
2,240 nmi (2,580 mi, 4,150 km) with 50 knots (58 mph; 26 m/s) headwinds, 20 minutes reserve
45,000 ft (13,700 m)
6,000 ft/min (30 m/s)
1× 30 mm (1.18 in) GAU-8/A Avenger rotary cannon with 1,174 rounds
11 (8× under-wing and 3× under-fuselage pylon stations) with a capacity of 16,000 lb (7,260 kg), with provisions to carry combinations of: Rockets: 4× LAU-61/LAU-68 rocket pods (each with 19×/7× Hydra 70 mm/ APKWS rockets, respectively) 6× LAU-131 rocket pods (each with 7× Hydra 70 rockets) Missiles: 4× AIM-9 Sidewinder air-to-air missiles for self-defense 6× AGM-65 Maverick air-to-ground missiles Bombs: Mark 80 series of unguided 'iron' bombs or Mk 77 incendiary bombs or BLU-1, BLU-27/B, CBU-20 Rockeye II, BL755 and CBU-52/58/71/87/89/97 cluster bombs or Paveway series of Laser-guided bombs or Joint Direct Attack Munition (JDAM) (A-10C) or Wind Corrected Munitions Dispenser Other: SUU-42A/A Flares/infrared decoys and chaff dispenser pod or 2× 600 US gal (2,300 L) Sargent Fletcher drop tanks for increased range/loiter time.
NACA 6716 root, NACA 6713 tip
47,094 lb (21,361 kg)
42,071 lb (19,083 kg)
120 kn (138 mph, 220 km/h) at 30,000 lb (14,000 kg)
450 kn (518 mph, 833 km/h) at 5,000 ft (1,500 m) with 18 Mark 82 bombs
250 nmi (290 mi; 460 km) representing a 1 hour 53 minute of loiter time at 5,000 ft (1,500 m), and 10 minutes of combat
99 lb/sq ft (482 kg/m 2 )
0.47
4× LAU-61/LAU-68 rocket pods (each with 19×/7× Hydra 70 mm/ APKWS rockets, respectively) 6× LAU-131 rocket pods (each with 7× Hydra 70 rockets)
4× AIM-9 Sidewinder air-to-air missiles for self-defense 6× AGM-65 Maverick air-to-ground missiles
Mark 80 series of unguided 'iron' bombs or Mk 77 incendiary bombs or BLU-1, BLU-27/B, CBU-20 Rockeye II, BL755 and CBU-52/58/71/87/89/97 cluster bombs or Paveway series of Laser-guided bombs or Joint Direct Attack Munition (JDAM) (A-10C) or Wind Corrected Munitions Dispenser
SUU-42A/A Flares/infrared decoys and chaff dispenser pod or 2× 600 US gal (2,300 L) Sargent Fletcher drop tanks for increased range/loiter time.
AN/AAQ-28(V)4 LITENING or AN/AAQ-33(V)1/2 Sniper
AN/ALQ-131 or AN/ALQ-184(V)-11/12 ECM pods
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 16.26 m | Wikipedia contributors | superseded |
Fairchild Republic A-10 Thunderbolt II equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
United StatesUS Air Force (USAF) exact named equipment holdings: A-10C Thunderbolt II. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: AIRCRAFT / ATK. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
Air National Guard 104,850 reservists exact named equipment holdings: A-10C Thunderbolt II. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: AIRCRAFT / ATK. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
Air Force Reserve Command 65,450 reservists exact named equipment holdings: A-10C Thunderbolt II. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: AIRCRAFT / ATK. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
Reported count for A-10C Thunderbolt II. Service scope: Air Force; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): inventory: 162. Origin: USA. The listed variants/roles are the scope, not an immediately deployable count. Dates are the count-cell citations' stated source period (2025), not the article revision. Cited source 2025-06-27. Edition or publication years do not claim an exact inventory census day.
