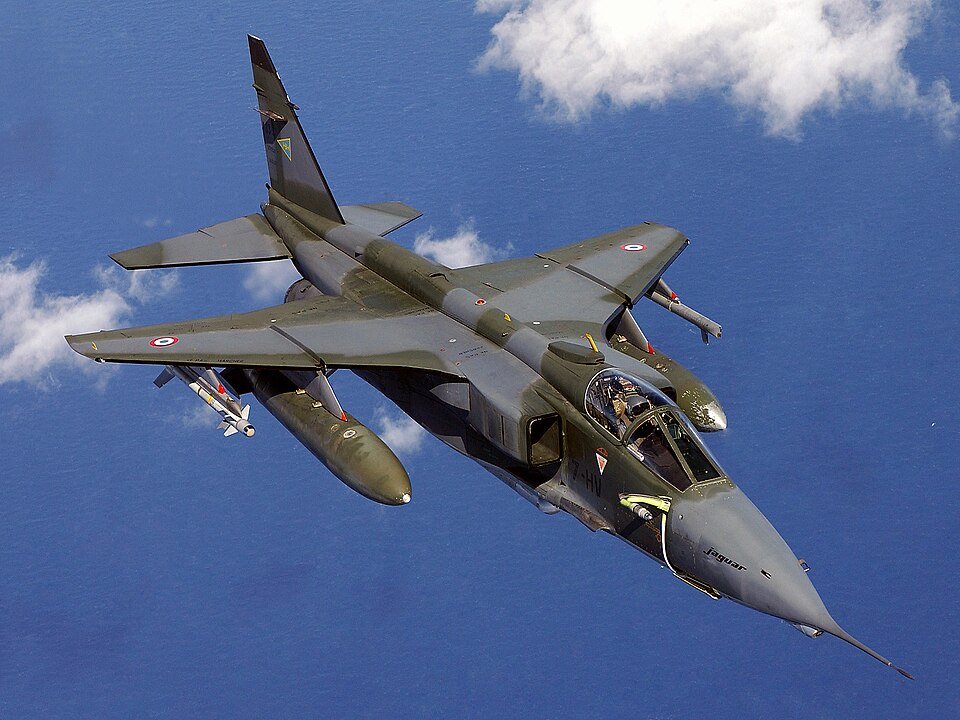

SEPECAT Jaguar

1. SEPECAT Jaguar · Wikipedia revision 1376725143 ↗

   Type

   Infobox · Type

   Attack aircraft

   National origin

   Infobox · National origin

   France / United Kingdom

   Manufacturer

   Infobox · Manufacturer

   SEPECAT ( Breguet / BAC )

   Built by

   Infobox · Built by

   SEPECAT / HAL

   Status

   Infobox · Status

   In service

   Primary users

   Infobox · Primary users

   Indian Air Force Royal Air Force (historical) French Air Force (historical) Royal Air Force of Oman (historical)

   Number built

   Infobox · Number built

   573

   Manufactured

   Infobox · Manufactured

   1968–1981

   Introduction date

   Infobox · Introduction date

   1973

   First flight

   Infobox · First flight

   8 September 1968

   Retired

   Infobox · Retired

   2005 (France) / 2007 (UK) / 2014 (Oman)

   Crew

   Specifications (Jaguar A / S) · Crew

   1 (A and S); 2 (B and E)

   Length

   Specifications (Jaguar A / S) · Length

   16.83 m (55 ft 3 in)

   Wingspan

   Specifications (Jaguar A / S) · Wingspan

   8.69 m (28 ft 6 in)

   Height

   Specifications (Jaguar A / S) · Height

   4.89 m (16 ft 1 in)

   Wing area

   Specifications (Jaguar A / S) · Wing area

   24.18 m 2 (260.3 sq ft)

   Empty weight

   Specifications (Jaguar A / S) · Empty weight

   7,000 kg (15,432 lb) typical, (dependent on variant and role)

   Gross weight

   Specifications (Jaguar A / S) · Gross weight

   10,954 kg (24,149 lb) full internal fuel and 120 rpg

   Max takeoff weight

   Specifications (Jaguar A / S) · Max takeoff weight

   15,700 kg (34,613 lb) with external stores

   Fuel capacity

   Specifications (Jaguar A / S) · Fuel capacity

   4,200 L (1,100 US gal; 920 imp gal) internal, with provision for three 1,200 L (320 US gal; 260 imp gal) drop tanks on inboard and centreline pylons

   Powerplant

   Specifications (Jaguar A / S) · Powerplant

   2 × Rolls-Royce Turbomeca Adour Mk.102 afterburning turbofan engines, 22.75 kN (5,110 lbf) thrust each dry, 32.5 kN (7,300 lbf) with afterburner

   Maximum speed

   Specifications (Jaguar A / S) · Maximum speed

   1,350 km/h (840 mph, 730 kn) Mach 1.1 at sea level

   Combat range

   Specifications (Jaguar A / S) · Combat range

   815 km (506 mi, 440 nmi) hi-lo-hi (internal fuel)

   Ferry range

   Specifications (Jaguar A / S) · Ferry range

   1,902 km (1,182 mi, 1,027 nmi) with full internal and external tanks

   Service ceiling

   Specifications (Jaguar A / S) · Service ceiling

   14,000 m (46,000 ft)

   Guns

   Specifications (Jaguar A / S) · Guns

   2× 30 mm (1.181 in) calibre DEFA cannon with up to 150 rounds/gun

   Hardpoints

   Specifications (Jaguar A / S) · Hardpoints

   7 (4× under-wing, 2× over-wing and 1× centreline) with a capacity of 10,000 lb (4,500 kg), with provisions to carry combinations of: Rockets: 8× Matra rocket pods with 18× SNEB 68 mm rockets each Missiles: Air-to-air missiles : 2× AIM-9 Sidewinder on outboard pylons ( French Air and Space Force ) or 2× AIM-9 Sidewinder on overwing pylons 2× R.550 Magic on outboard pylons ( French Air and Space Force ) ASRAAM ( Indian Air Force ) Astra ( Indian Air Force ) Air-to-surface missiles : AS-30L ( French Air and Space Force ) Rampage ( Indian Air Force ) Anti-ship missiles : Harpoon ( Indian Air Force ) Sea Eagle ( Indian Air Force ) Anti-radiation missiles : AS.37 Martel Rudram-1 ( Indian Air Force ) Precision-guided munition : Smart Anti-Airfield Weapon ( Indian Air Force ) Bombs: various unguided or laser-guided bombs Nuclear bombs : 2× WE177 A nuclear bombs 1× AN-52 nuclear bomb ( French Air and Space Force ) Other: external drop tanks for extended range/loitering time.

   Aspect ratio

   Specifications (Jaguar A / S) · Aspect ratio

   3.12

   g limits

   Specifications (Jaguar A / S) · g limits

   +8.6 (ultimate load +12)

   Time to altitude

   Specifications (Jaguar A / S) · Time to altitude

   9,145 m (30,003 ft) in 1 minute 30 seconds

   Wing loading

   Specifications (Jaguar A / S) · Wing loading

   649.3 kg/m 2 (133.0 lb/sq ft) maximum

   Thrust/weight

   Specifications (Jaguar A / S) · Thrust/weight

   Adour Mk.102: 0.422

   Take-off run

   Specifications (Jaguar A / S) · Take-off run

   580 m (1,900 ft) with typical tactical load

   Take-off run to 15 m (49 ft)

   Specifications (Jaguar A / S) · Take-off run to 15 m (49 ft)

   940 m (3,080 ft) with typical tactical load

   Landing run from 15 m (49 ft)

   Specifications (Jaguar A / S) · Landing run from 15 m (49 ft)

   785 m (2,575 ft) with typical tactical load

   Landing run

   Specifications (Jaguar A / S) · Landing run

   470 m (1,540 ft) with typical tactical load

   Landing speed

   Specifications (Jaguar A / S) · Landing speed

   213 km/h (132 mph; 115 kn)

   Rockets

   Specifications (Jaguar A / S) · Rockets

   8× Matra rocket pods with 18× SNEB 68 mm rockets each

   Missiles

   Specifications (Jaguar A / S) · Missiles

   Air-to-air missiles : 2× AIM-9 Sidewinder on outboard pylons ( French Air and Space Force ) or 2× AIM-9 Sidewinder on overwing pylons 2× R.550 Magic on outboard pylons ( French Air and Space Force ) ASRAAM ( Indian Air Force ) Astra ( Indian Air Force ) Air-to-surface missiles : AS-30L ( French Air and Space Force ) Rampage ( Indian Air Force ) Anti-ship missiles : Harpoon ( Indian Air Force ) Sea Eagle ( Indian Air Force ) Anti-radiation missiles : AS.37 Martel Rudram-1 ( Indian Air Force ) Precision-guided munition : Smart Anti-Airfield Weapon ( Indian Air Force )

   Bombs

   Specifications (Jaguar A / S) · Bombs

   various unguided or laser-guided bombs Nuclear bombs : 2× WE177 A nuclear bombs 1× AN-52 nuclear bomb ( French Air and Space Force )

   Other

   Specifications (Jaguar A / S) · Other

   external drop tanks for extended range/loitering time.
