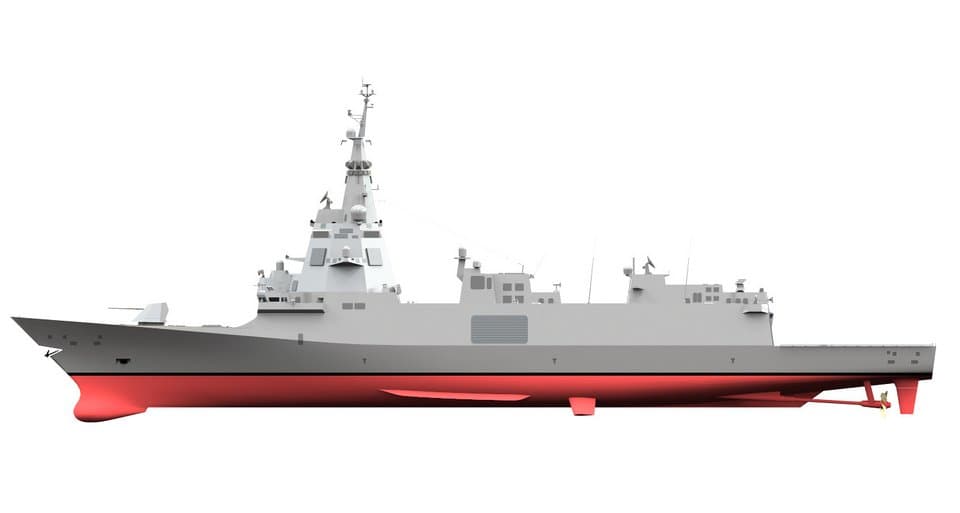

F110-class frigate

1. F110-class frigate · Wikipedia revision 1372073120 ↗

   Name

   Infobox · Name

   Bonifaz class (F110)

   Builders

   Infobox · Builders

   Navantia

   Operators

   Infobox · Operators

   Spanish Navy

   Preceded by

   Infobox · Preceded by

   Álvaro de Bazán class

   Cost

   Infobox · Cost

   € 4.3 billion (US$5.09 billion) for five units € 860 million (US$1.02 billion) per unit

   Planned

   Infobox · Planned

   5 ordered (+ 2 potentially)

   Building

   Infobox · Building

   4

   Type

   Infobox · Type

   Guided missile frigate ASW frigate

   Displacement

   Infobox · Displacement

   Flight I: 6,100 t (6,000 long tons ) Flight II / IAMD: 6,700 t (6,600 long tons )

   Length

   Infobox · Length

   Flight I: 145 m (475 ft 9 in) Flight II / IAMD: 150 m (492 ft 2 in)

   Beam

   Infobox · Beam

   18 m (59 ft 1 in)

   Draft

   Infobox · Draft

   5 m (16 ft 5 in)

   Propulsion

   Infobox · Propulsion

   CODLOG : 1 × GE LM2500 turbine 4 × MTU 4000 diesel engines Propellers Kongsberg Maritime controllable pitch propellers

   Speed

   Infobox · Speed

   Flight I: > 35 knots (65 km/h; 40 mph) Flight II / IAMD: 29 knots (54 km/h; 33 mph)

   Complement

   Infobox · Complement

   Flight I: 150 Flight II / IAMD: 170

   Sensors & processing systems

   Infobox · Sensors & processing systems

   Combat systems SCOMBA (Navantia Combat Management System) International Aegis Fire Control Loop (IAFCL) Underwater combat suite: Thales CAPTAS-4 towed array sonar Thales BlueMaster UMS 4110 hull mounted sonar BlueScan digital acoustic system TUUM-6 underwater communication system Radars AN/SPY-7(V)2 Communication systems Rohde & Schwarz external communications systems Navigation systems GMV’ SENDA

   Armament

   Infobox · Armament

   F110 Flight I: Torpedoes: 2 × Mark 32 Mod 9 Missiles: 16-cells (2 × 8 Mk 41 VLS ) with RIM-162 ESSM Block 2 (quad-packs per cell) 2 × 4-cell NSM launchers Guns: 1 × 127 mm OTO 127/64 LW Vulcano naval gun with Vulcano guided ammunition 2 × 30 mm and .50 in (12.7 mm) machine guns F110 Flight II / IAMD: Torpedoes: 2 × Mark 32 Mod 9 with Mk54 lightweight torpedo Missiles: 16-cells (2 × 8 Mk 41 Tactical Length VLS ) 48-cells (6 × 8 Mk 41 Strike Length VLS ) 2 × 4-cell NSM launchers Guns: 1 × 127 mm OTO 127/64 LW Vulcano naval gun with Vulcano guided ammunition 2 × Escribano E&M Sentinel 30 RWS (30 mm) 4 × Escribano E&M Sentinel 12.7 RWS (12.7 mm) Decoys: 6 × Mark 36 SRBOC (counter anti-ship missile / loitering munitions)

   Aircraft carried

   Infobox · Aircraft carried

   1 × SH-60 Seahawk or NH-90 helicopter

   National origin

   Lead · stated nationality (Spanish)

   The origins of the F110 class project are in the planned replacement for the Spanish Navy's Santa María -class frigates , as contemplated in the ALTAMAR Plan, a Spanish naval white book to modernize the Spanish Navy, with five frigates originally to be built as an enlarged version of the Álvaro de Bazán -class frigates .
