Warships2017– present
Guided-missile frigate

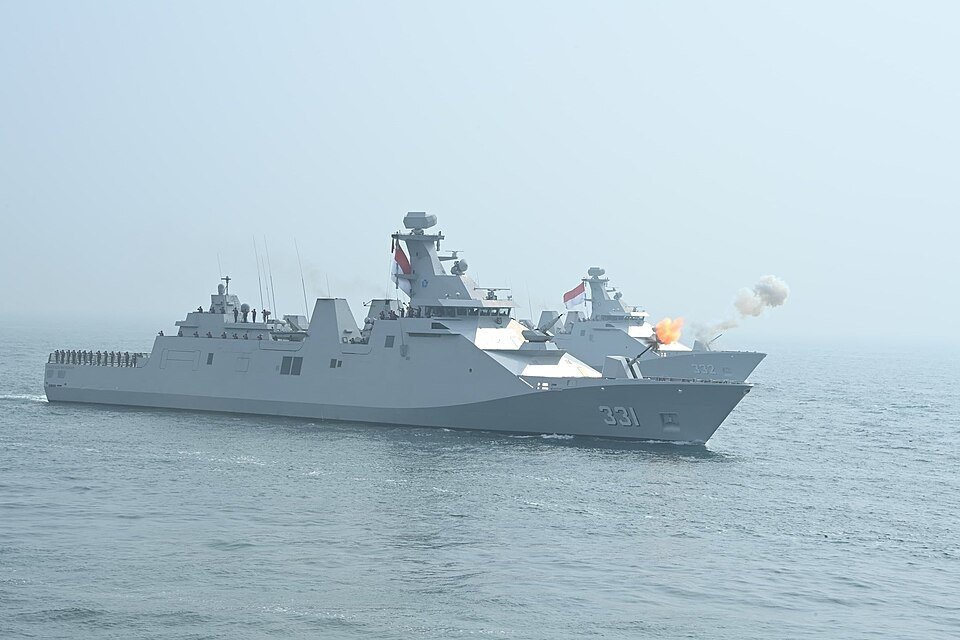

Martadinata-class frigate is a guided-missile frigate. It was built by Damen Schelde Naval Shipbuilding PT PAL Indonesia. Reported operators include Indonesian Navy.
IndonesiaMartadinata-class frigate
Kementerian Pertahanan RI · Public domain · Resized · Public domain · Source ↗ · ModifiedDamen Schelde Naval Shipbuilding PT PAL Indonesia
Indonesian Navy
Ahmad Yani class
Brawijaya class Balaputradewa class İstif class
US$222 million (hull only)
2014–2018
2017– present
4
2
2
2
Guided-missile frigate
2,365 tons 2,946 tons ( full load )
105.11 m (344 ft 10 in)
14.02 m (46 ft 0 in)
3.75 m (12 ft 4 in)
Combined Diesel or Electric (CODOE) 2 x 10000 kW MCR diesel propulsions 2 x 1300 kW MCR electric propulsions 2 x shafts with controllable pitch propellers
28 knots (52 km/h; 32 mph) on maximum power 15 knots (28 km/h; 17 mph) on Electric-propulsion
5,000 nmi (9,300 km; 5,800 mi) at 14 knots (26 km/h; 16 mph)
20 days at sea
2 x RHIB
122 persons
Combat management system: Thales TACTICOS Baseline 2 CMS (10x MOC Mk.4 consoles) Surveillance radar: Thales SMART-S Mk2 3D Air and surface surveillance radar Fire control system: Thales STIR 1.2 EO Mk2 Radar/EO fire control system Sonar: Thales UMS 4132 KINGKLIP Medium frequency active/passive ASW hull-mounted sonar Datalink: Thales Link-Y Mk2 Datalink system IFF system: Thales TSB2520 IFF system
ESM: Thales Vigile 100S Mk2 Tactical multi-purpose RESM ECM: Thales Scorpion 2L RECM Decoy launchers: Terma SKWS DL-12T 130 mm 12-tube decoy launcher
Guns : 1 x OTO Melara Super Rapid 76 mm main gun 1 x Rheinmetall Oerlikon Millennium Gun 35 mm CIWS 2 x Denel Vektor GA-1 20 mm secondary guns Missiles : 12 x VL MICA-M short-ranged surface-to-air missiles 8 x Exocet MM40 Block III antiship cruise missiles Torpedoes : 2 x WASS B515/3 triple-tubed torpedo launchers WASS A244-S Mod.3 324 mm lightweight torpedoes
1 x Eurocopter AS565 Panther
Helicopter deck and centerline hangar
Indonesia 0 references
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 29 Sept 2026 | 105.11 m | Wikipedia contributors | approved |
| 29 Sept 2026 | 105.11 m | Wikipedia contributors | superseded |
| 29 Sept 2026 | 105.11 m | Wikipedia contributors | superseded |
Martadinata-class frigate equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
