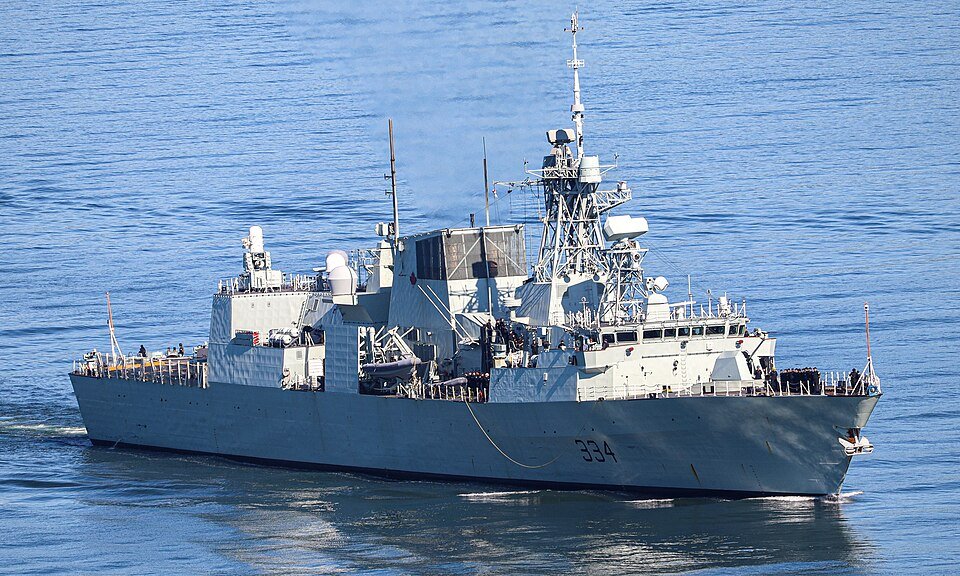

Halifax-class frigate

1. Halifax-class frigate · Wikipedia revision 1374079994 ↗

   Name

   Infobox · Name

   Halifax class

   Builders

   Infobox · Builders

   Saint John Shipbuilding Ltd. , Saint John MIL Davie Shipbuilding , Lauzon

   Operators

   Infobox · Operators

   Royal Canadian Navy

   Preceded by

   Infobox · Preceded by

   Annapolis class

   Succeeded by

   Infobox · Succeeded by

   River class

   Built

   Infobox · Built

   1987–1996

   In commission

   Infobox · In commission

   1992–present

   Completed

   Infobox · Completed

   12

   Active

   Infobox · Active

   12

   Type

   Infobox · Type

   Guided-missile frigate

   Displacement

   Infobox · Displacement

   4,735 t (4,660 long tons )

   Length

   Infobox · Length

   134.1 m (440 ft 0 in)

   Beam

   Infobox · Beam

   16.4 m (53 ft 10 in)

   Draught

   Infobox · Draught

   4.9 m (16 ft 1 in)

   Propulsion

   Infobox · Propulsion

   CODOG 2 × General Electric LM2500 gas turbines, generating 47,500 shp (35,400 kW) 1 × SEMT Pielstick 20PA6V280 diesel engine, generating 8,800 shp (6,600 kW) 1 × Royal de Schelde cross-connect gearbox 2 × Escher Wyss controllable pitch propellers 4 × 830 kW Hitzinger generators driven by 4 × C32 ACERT Caterpillar engines

   Speed

   Infobox · Speed

   30 knots (56 km/h; 35 mph)

   Range

   Infobox · Range

   9,500 nmi (17,600 km; 10,900 mi)

   Complement

   Infobox · Complement

   255

   Sensors & processing systems

   Infobox · Sensors & processing systems

   Combat management system: Lockheed Martin Canada CMS 330 with integrated Saab 9LV Mk 4 elements Air/Surface search and surveillance radars: Saab Sea Giraffe AMB 3D and Thales SMART-S Mk 2 3D Fire control radar : 2 × Saab CEROS-200 Integrated platform management system: L3 MAPPS IPMS Identification Friend or Foe (IFF) System: Telephonics Mk XII Electro-optical infrared search and track system: DRS Canada and Thales Nederland Sirius Tactical data link: SATCOM Link 11 , Link 16 , Link 22 Active/Passive sonar : GDMS-Canada AN/SQS-510 hull mounted sonar Towed array sonar : GDMS-Canada TLFAS (variable depth) Sonobuoy processing system: GDMS-Canada AN/UYS-503

   Electronic warfare & decoys

   Infobox · Electronic warfare & decoys

   Countermeasure dispensing system: 3 × TKWA/MASS Electronic warfare suite: AN/SLQ-503 RAMSES (4 × RAMSES radomes ) Signals intelligence COMINT and SIGINT Suite: Southwest Research Institute AN/SRD-506 Electronic support measure: Elisra NS9003A-V2HC Inflatable decoy system: Surface Off-Board Passive Decoy (SOPD) Towed torpedo countermeasure: Argon ST AN/SLQ-25 Nixie

   Armament

   Infobox · Armament

   2 × quad Mk 141 canisters for 8 × RGM-84 Harpoon block II missiles AShM/LAM 2 × 8-cell Mk 48 vertical launch system (VLS) firing 16 × RIM-162 Evolved Sea Sparrow block II SAM/SSM 1 × Bofors 57 mm (2.2 in) Mk 3 gun 1 × Phalanx CIWS (Mk 15 Mod 21 (Block 1B)) 4 × 12.7 mm (0.50 in) M2HQ Mini Typhoon remote weapon stations 2 × twin 324 mm (12.8 in) Mk 32 torpedo tubes for 24 × Honeywell Mk 46 Mod 5 torpedoes

   Aircraft carried

   Infobox · Aircraft carried

   1 × CH-148 Cyclone helicopter armed with: 2 × Mk 54 lightweight torpedoes 1 × C6 FLEX 7.62 mm (0.30 in) GPMG

   Aviation facilities

   Infobox · Aviation facilities

   Landing pad with recovery assist, secure and traverse system (RAST) Hangar

   Notes

   Infobox · Notes

   Government of Canada is acquiring up to six uncrewed aircraft system (UAS) to provide over the horizon situational awareness, intelligence, and targeting capabilities to the class.

2. Wikidata contributors ↗

   Country of origin

   Structured reference · explicit country of origin (P495) statement

   {"datatype": "wikibase-item", "datavalue": {"type": "wikibase-entityid", "value": {"entity-type": "item", "id": "Q16", "numeric-id": 16}}, "hash": "8ce7020b3a7cc8df1fb419a989a1c88db64e49e8", "property": "P495", "snaktype": "value"}

Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
