Support aircraftIn service
Airborne Warning and Control System (AWACS)

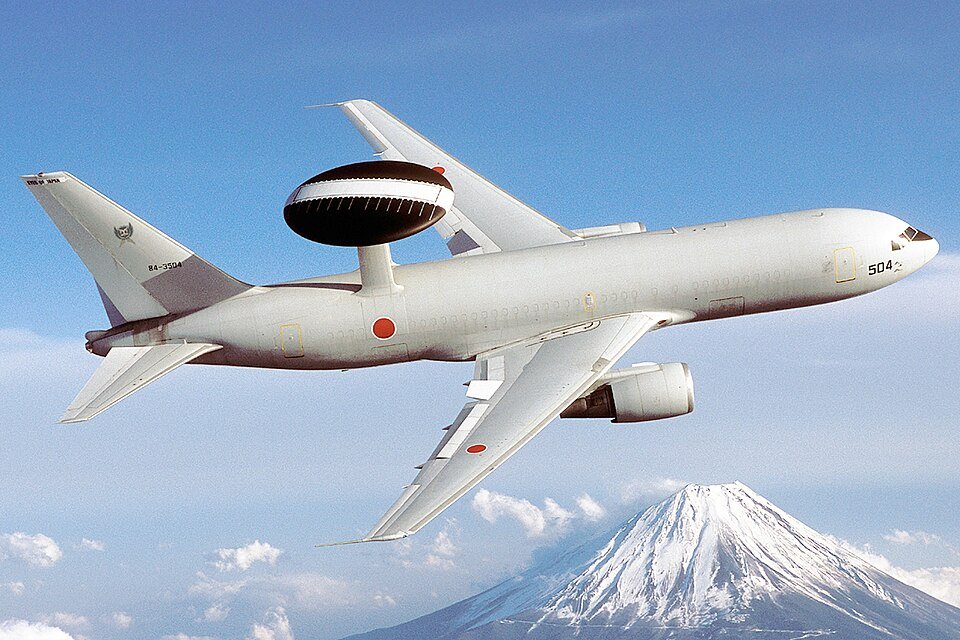

Boeing E-767 is a airborne Warning and Control System (AWACS) originating in United States. It was built by Boeing Integrated Defense Systems. Reported operators include Japan Air Self-Defense Force.
United StatesAirborne Warning and Control System (AWACS)
United States
Boeing Integrated Defense Systems
In service
Japan Air Self-Defense Force
4
10 May 2000
4 October 1994 (without rotodome) 9 August 1996 (with rotodome )
Boeing 767
Flight: 2; Mission: 8-10
159 ft 2 in (48.5 m)
156 ft 1 in (47.6 m)
52 ft 0 in (15.8 m)
188,705 lb (85,595 kg)
284,110 lb (128,870 kg)
385,000 lb (175,000 kg)
2 × General Electric CF6-80C2 turbofan , 61,500 lbf (274 kN) thrust each
Mach 0.86
460 kn (530 mph, 851 km/h)
5,600 nmi (6,440 mi, 10,370 km)
40,100 ft (12,200 m)
9.25 hours on station at 1,000 nautical-mile radius; 13 hours at 300-nautical mile radius (no aerial refueling capability).
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 48.5 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 48.5 m | Wikipedia contributors | approved |
Boeing E-767 equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
JapanReported count for Boeing E-767. Service scope: Japan Air Self-Defense Force; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): in service: 4. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. Dates are the count-cell citations' stated source period (2026), not the article revision. 2026 cited source edition. Edition or publication years do not claim an exact inventory census day.
