Warships1950s-1990sProfile in progress

Type 062 gunboat

Name: Type 062 gunboat specifications
Creator: ForceTally

Gunboat

Type 062 gunboat is a gunboat. Reported operators include People's Liberation Army Navy.

Origin: China
Manufacturer: Not reported

Compare

Image credit

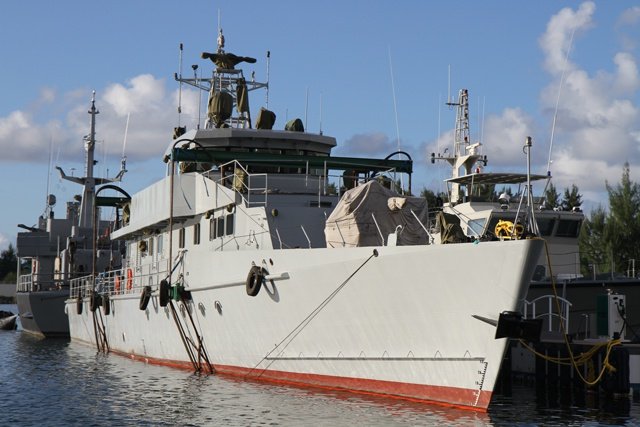

Type 062 gunboat

Mervyn Marie / Seychelles News Agency · CC BY 4.0 · Resized · CC BY 4.0 · Source ↗ · Modified

Length: 38.78mShanghai-II class
Beam: 5.5mShanghai-I class
Displacement: 135t
Speed: 53km/hMaximum
Range: 1,390km19.0 mph)
Complement: 36

Technical data

Specifications

19 fields · 2 sources · retrieved 28 Sept 2026

Dimensions & mass

Displacement: Shanghai-I class : 125 tonnes (123 long tons; 138 short tons) full Shanghai-II class : 135 tonnes (133 long tons; 149 short tons) full¹
Length: Shanghai-I class : 36 m (118 ft 1 in) Shanghai-II class : 38.78 m (127 ft 3 in)¹

True scale

Size in context

Length · Shanghai-II class: 38.78 m
Person: 1.75 m
Bus: 12 m

Sourced dimensions beside a 1.75 m human reference.

Measurement history Earlier and superseded figures

Evidence over time

Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.

Observation / report period	Value	Source	Claim state
28 Sept 2026	36 m	Wikipedia contributors	approved
28 Sept 2026	36 m	Wikipedia contributors	superseded
28 Sept 2026	36 m	Wikipedia contributors	superseded
28 Sept 2026	36 m	Wikipedia contributors	superseded
28 Sept 2026	36 m	Wikipedia contributors	superseded

Sources & original excerpts2 references

Type 062 gunboat · Wikipedia revision 1352159871 ↗
Name
Infobox · Name
Shanghai I & II class
Operators
Infobox · Operators
People's Liberation Army Navy
Preceded by
Infobox · Preceded by
Shantou & Huangpu classes
Succeeded by
Infobox · Succeeded by
Type 062I (Shanghai III class)
Subclasses
Infobox · Subclasses
Shanghai I-class gunboat Shanghai II-class gunboat
In commission
Infobox · In commission
1950s-1990s
Completed
Infobox · Completed
30 (PLAN)
Retired
Infobox · Retired
30 (PLAN)
Type
Infobox · Type
Gunboat
Displacement
Infobox · Displacement
Shanghai-I class : 125 tonnes (123 long tons; 138 short tons) full Shanghai-II class : 135 tonnes (133 long tons; 149 short tons) full
Length
Infobox · Length
Shanghai-I class : 36 m (118 ft 1 in) Shanghai-II class : 38.78 m (127 ft 3 in)
Beam
Infobox · Beam
Shanghai-I class : 5.5 m (18 ft 1 in) Shanghai-II class : 5.41 m (17 ft 9 in)
Draft
Infobox · Draft
Shanghai-I class : 1.6 m (5 ft 3 in) Shanghai-II class : 1.55 m (5 ft 1 in)
Propulsion
Infobox · Propulsion
2 × Soviet M50F-4 diesel engines , 1,200 hp (895 kW) 2 × 12D6 diesel engines, 910 hp (679 kW) 4 × shafts
Speed
Infobox · Speed
28.5 knots (52.8 km/h; 32.8 mph)
Range
Infobox · Range
750 nmi (1,390 km) at 16.5 knots (30.6 km/h; 19.0 mph)
Complement
Infobox · Complement
36
Sensors & processing systems
Infobox · Sensors & processing systems
1 × navigational or surface search radar
Armament
Infobox · Armament
Shanghai-I class : 1 × twin Type 66 57 mm (2.2 in) gun 4 × Type 61 25 mm (0.98 in) guns (2×2) 8 × Depth charges Shanghai-II class : 4 × Chinese Type 61 37 mm (1.5 in) guns (2×2) 4 × Chinese Type 61 25 mm (0.98 in) guns (2×2) 1 × Chinese 81 mm (3.2 in) recoilless gun (some) 8 × Depth charges
Active
Infobox · Active
17 (PLAN) Unknown export number
Wikipedia contributors ↗
Country of origin
List of ships of the Egyptian Navy · Current and future ships · Fast Attack Craft (30) · table 5, row 8 · revision 1368866269 · explicit Origin column2,sourcecell8/2
Shanghai II-class China Gunboat 4 active 135 tonnes

Reference text from Wikipedia contributors, used under CC BY-SA 4.0.

Operator countries

6 countries documented

Type 062 gunboat equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.

China
Egypt
4Reported holdingsType 062 gunboat · reported variantsEstimate · Period Date of the source the list cites · Wikipedia list · original not yet checked
Count scope
Number column of the Wikipedia list table under "Fast Attack Craft (30)". The list's own wording applies; it is a compiled secondary source, not an official census.
North Korea
Sri Lanka
9Reported holdingsType 062 gunboat · reported variants · Sri Lanka NavyEstimate · Period Source snapshot 2026-09-30 · inventory date unstated · Wikipedia list · original not yet checked
Count scope
Reported count for Lushun class / Shanghai II class / Shanghai III class. Service scope: Sri Lanka Navy; does not replace a national total. 3 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): total: 2 / total: 3 / total: 4. Origin: unstated. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Tanzania
Vietnam
≥2Reported holdingsType 062 gunboat · reported variants · Vietnam People's NavyEstimate · Period Source snapshot 2026-09-30 · inventory date unstated · Wikipedia list · original not yet checked
Count scope
Lower-bound count for Type 062. Service scope: Vietnam People's Navy; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 2+. Origin: China. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
