HelicoptersIn service
Attack helicopter

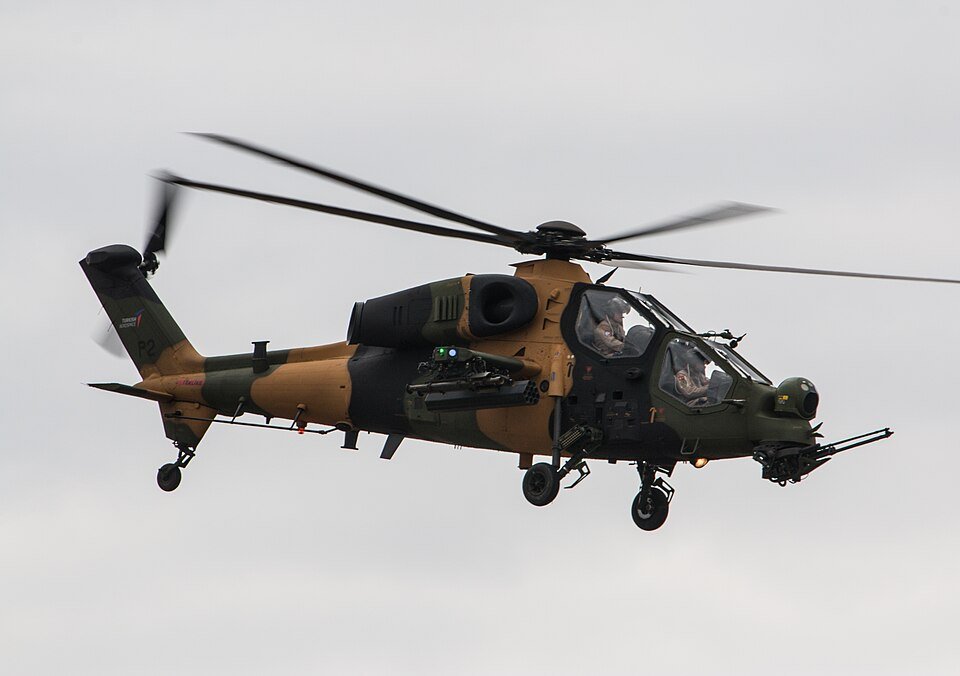

TAI/AgustaWestland T129 ATAK is a attack helicopter originating in Turkey. It was built by Turkish Aerospace Industries (TAI).
TurkeyAttack helicopter
Turkey
Turkish Aerospace Industries (TAI)
Turkish Aerospace Industries (TAI) / AgustaWestland ( Leonardo from 2017)
In service
Turkish Army Gendarmerie General Command General Directorate of Security (Turkey) Philippine Air Force
100 (+7 prototypes) (2023)
2009–present
2014
28 September 2009
Agusta A129 Mangusta
2
14.54 m (47 ft 8 in)
3.4 m (11 ft 2 in)
5,056 kg (11,147 lb)
2 × LHTEC CTS800-4A turboshaft , 1,024 kW (1,373 hp) each
11.9 m (39 ft 1 in)
281 km/h (175 mph, 152 kn) ("maximum cruise speed")
537 km (334 mi, 290 nmi)
1,000 km (620 mi, 540 nmi)
3 hr
4,572 m (15,000 ft)
13.26 m/s (2,610 ft/min) , vertical climb rate 7.3 m/s
1× M197 20x102 mm (0.787 in) three-barrel rotary cannon (500 rounds)
4 , with provisions to carry combinations of: Rockets: maximum 4 pods with 76 (19×4) / 48 (12×4): 70 mm (2.75 in) unguided rockets such as MKE FFAR , Hydra 70 , CRV7 Missiles: 8 (4×2) UMTAS : 160 mm UMTAS and L-UMTAS anti-tank guided missiles . 16 (4×4) Cirit : 70 mm guided missile used against lightly armored / unarmored targets 8 (2×4) Air-to-Air Stinger (ATAS) : short range air-to-air missile Other: 2 (1×2) Drop tanks : 294 kg each
111.22 m 2 (1,197.2 sq ft)
maximum 4 pods with 76 (19×4) / 48 (12×4): 70 mm (2.75 in) unguided rockets such as MKE FFAR , Hydra 70 , CRV7
8 (4×2) UMTAS : 160 mm UMTAS and L-UMTAS anti-tank guided missiles . 16 (4×4) Cirit : 70 mm guided missile used against lightly armored / unarmored targets 8 (2×4) Air-to-Air Stinger (ATAS) : short range air-to-air missile
2 (1×2) Drop tanks : 294 kg each
Length 14.54 m 47.70 ft
Height 3.40 m 11.20 ft
Main Rotor Diameter 11.90 m 39.00 ft
MTOW 5065 kg 11166 Ib
Crew 2
Range 537 km 290 nm
Service Ceiling 4572 m 15000 ft
Rotor Diameter 11.90 m
Speed 281 km/h
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 14.54 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 14.54 m | Wikipedia contributors | approved |
TAI/AgustaWestland T129 ATAK equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
Iraq
PhilippinesDated directory active-fleet estimate for T129, grouped under TAI/AgustaWestland T129 ATAK. Only the explicitly listed service/role Active cells are included. Ordered, stored and upgrade aircraft are excluded. This is the directory coverage of these source types, not a national total, complete owned-fleet census or readiness count.
TürkiyeDirectory active-fleet estimate for the source types T129, grouped under TAI/AgustaWestland T129 ATAK. Sums only the listed service and role rows; includes training and special-mission versions where explicitly listed. Excludes the separate Ordered column, aircraft in storage, aircraft undergoing or awaiting upgrades, and the directory's other exclusions. This is the dated directory coverage of these types, not a complete owned-fleet census or a readiness count.
Turkish Army Gendarmerie General Command General Directorate of Security (Turkey) Philippine Air Force
