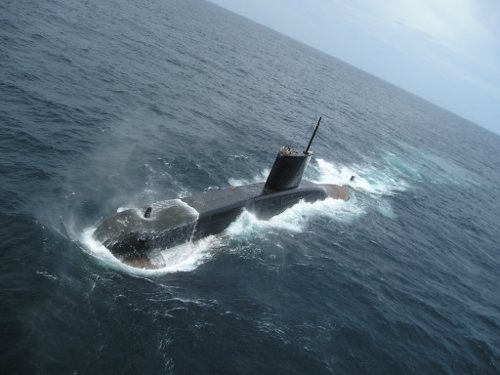

Shishumar-class submarine

1. Shishumar-class submarine · Wikipedia revision 1370921161 ↗

   Name

   Infobox · Name

   Shishumar class

   Builders

   Infobox · Builders

   Howaldtswerke-Deutsche Werft Mazagon Dock Limited

   Operators

   Infobox · Operators

   Indian Navy

   Preceded by

   Infobox · Preceded by

   Vela class

   Succeeded by

   Infobox · Succeeded by

   Kalvari class

   Cost

   Infobox · Cost

   €300 million each

   In commission

   Infobox · In commission

   1986–present

   Planned

   Infobox · Planned

   6

   Completed

   Infobox · Completed

   4

   Cancelled

   Infobox · Cancelled

   2

   Active

   Infobox · Active

   4

   Type

   Infobox · Type

   Attack submarine

   Displacement

   Infobox · Displacement

   1,450 t (1,427 long tons ) standard 1,660 t (1,634 long tons ) surfaced 1,850 t (1,821 long tons) submerged

   Length

   Infobox · Length

   64.4 m (211 ft 3 in)

   Beam

   Infobox · Beam

   6.5 m (21 ft 4 in)

   Draught

   Infobox · Draught

   6 m (19 ft 8 in)

   Propulsion

   Infobox · Propulsion

   4 × MTU 12V 493 AZ80 GA31L diesel-electric motors, 2,400 hp (1,790 kW) each 1 × Siemens motor, 4,600 hp (3,430 kW) 4 × 1.8 MW Siemens alternators 1 shaft

   Speed

   Infobox · Speed

   11 knots (20 km/h; 13 mph) surfaced 22 knots (41 km/h; 25 mph) submerged

   Range

   Infobox · Range

   8,000 nmi (15,000 km; 9,200 mi) at 8 kn (15 km/h; 9.2 mph) 13,000 nmi (24,000 km; 15,000 mi) at 10 kn (19 km/h; 12 mph)

   Complement

   Infobox · Complement

   40 (8 officers)

   Sensors & processing systems

   Infobox · Sensors & processing systems

   Atlas Elektronik CSU 83 sonar Thomson Sintra DUUX-5 passive sonar Thomson-CSF Calypso surface search radar

   Electronic warfare & decoys

   Infobox · Electronic warfare & decoys

   Argo Phoenix II AR 700 or Kollmorgen Sea Sentry C 303 acoustic decoys

   Armament

   Infobox · Armament

   14 × AEG-SUT Mod-1 torpedoes 24 × external strap-on mines UGM-84L Harpoon Block II missiles (S46 and S47 only)
