Military transport & logisticsProduced: 1992–present
Tank transporter

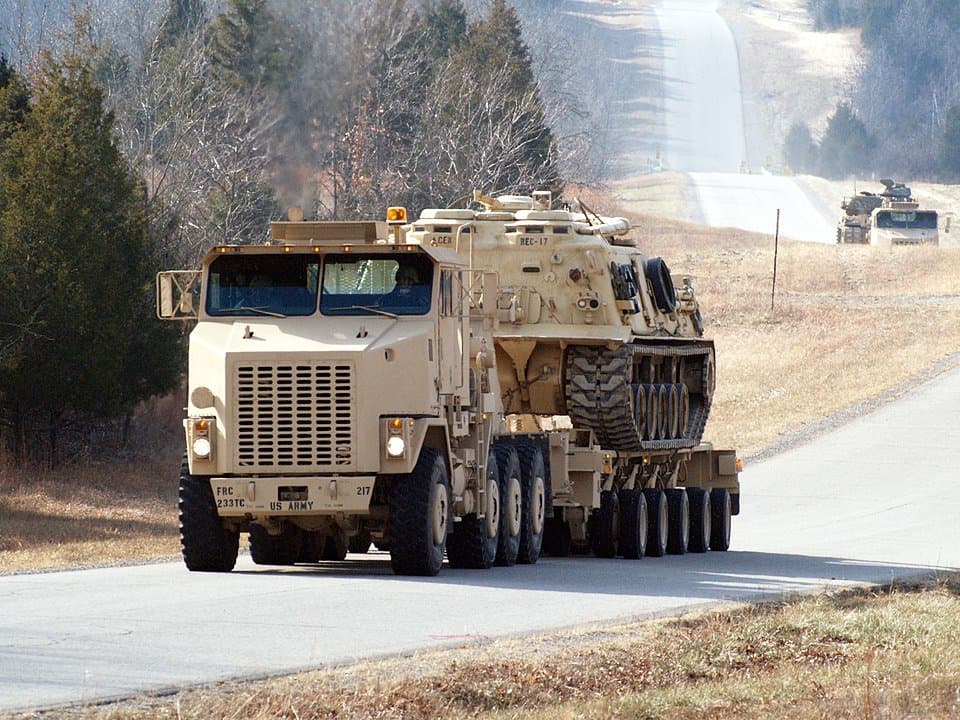

Oshkosh M1070 is a tank transporter originating in United States. It was built by Oshkosh Corporation. Reported operators include U.S. Army and others (see Operators).
United StatesTank transporter
United States
U.S. Army and others (see Operators)
Oshkosh Corporation
Oshkosh Corporation
1992–present
M1070A0, M1070A1, M1300
Unladen (tractor) 18598 kg / 20657 kg. Fifth wheel load (at GCW) 20411 kg / 20884 kg. GCWR 104961 kg / 108461
9.093 m / 9.677 m
2.591 m / 2.591 m
3.962 m / 3.708 m
2 operators (driver + 1) + 4 additional spaces (4 seats or 2 bunks)
Protection levels classified; 796 add-on kits delivered for M1070A0 by BAE Systems; M1070A1 is a-kit/b-kit; U.S. Army Long Term Armor Strategy (LTAS) compliant
Detroit Diesel Model 8V-92TA DDEC II, 12.06-litre diesel developing 500 hp at 2100 rpm and 1993 Nm torque at 1200 rpm / Caterpillar Inc C-18 18.01-litre turbocharged and intercooled 4-stroke diesel developing 700 hp at 2100 rpm
Allison CLT-754 5-speed automatic, TC-496 torque converter and Oshkosh 55000 2-speed transfer case / Allison 4800SP 7-speed, TC-496 torque converter and Oshkosh 30000 single-speed transfer case
The front Rockwell / AxleTech 5000 Series steer-drive axle is sprung by Hendrickson parabolic taper leaf springs . The rear Rockwell / AxleTech 5000 Series tridem unit is sprung by Hendrickson-Turner air suspension
947 litres / 947 litres (568 (L) & 379 (R))
724 km / 523 mi @ GCWR and an average 48 km/h
72 km/h (primary road at GCW) / 81 km/h (primary road at GCW)
power-assisted with front and rear axle co-ordinated steer; twin pump (main and auxiliary)
Egypt
Iraq
Israel
Jordan
Morocco
Oman
Romania
Saudi Arabia
Taiwan
Ukraine
United Arab Emirates
United Kingdom
United States
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 9.093 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 9.093 m | Wikipedia contributors | approved |
| 28 Sept 2026 | 9.093 m | Wikipedia contributors | superseded |
Oshkosh M1070 equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
Egypt
GreeceReported count for Oshkosh M1070A1. Service scope: Hellenic Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 60. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
IraqReported count for Oshkosh M1070. Service scope: current equipment of the Iraqi Ground Forces; does not replace a national total. 1 distinct quantity component(s) from the same source list; shared rowspan cells counted once. Explicit source inventory scope: active; no other stock status or total inferred. Count column(s): in service: 60. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Israel
JordanReported count for Oshkosh M1070. Service scope: Royal Jordanian Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): number: 110. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
LebanonReported count for Oshkosh M1070. Country-wide list; no individual service specified. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): quantity: 8. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Morocco
Oman
Romania
Saudi ArabiaReported count for Oshkosh HET · M1070A0 M1070. Service scope: Saudi Arabian Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 50. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
TaiwanReported count for Oshkosh M1070. Service scope: Republic of China Army; does not replace a national total. 1 distinct quantity component(s) from the same source list; shared rowspan cells counted once. Explicit source inventory scope: active; no other stock status or total inferred. Count column(s): in service: 16. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
UkraineReported count for M1070 HET. Country-wide list; no individual service specified. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): number: 15. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
United Arab EmiratesReported count for Oshkosh HET. Service scope: United Arab Emirates Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): number: 20. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
United Kingdom United StatesReported count for Oshkosh M1070. Service scope: current equipment of the Iraqi Ground Forces; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): in service: 60. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Reported count for Oshkosh M1070. Service scope: Republic of China Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): in service: 16. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
