Support aircraftIn serviceProfile in progress
STOL utility transport

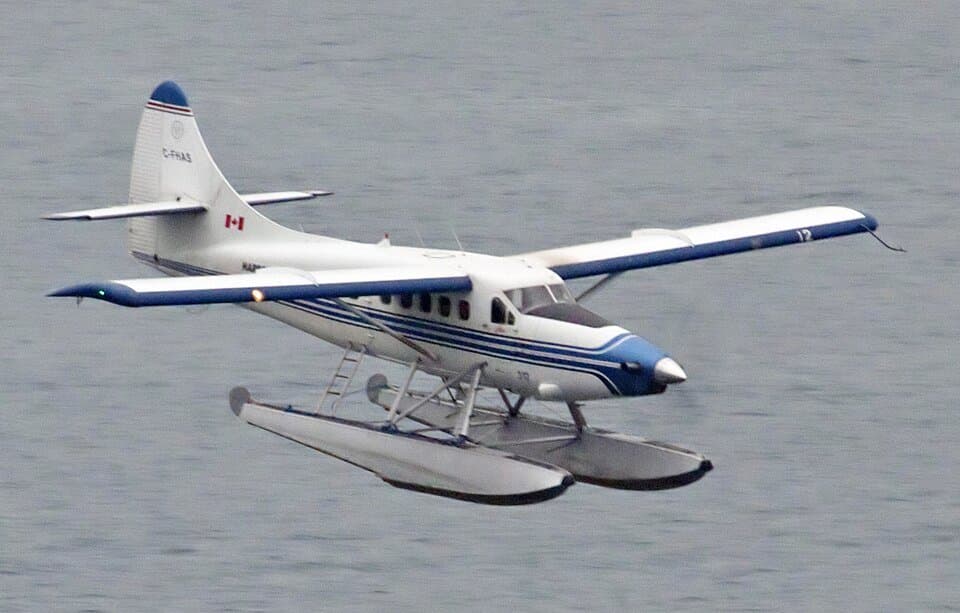

De Havilland Canada DHC-3 Otter is a sTOL utility transport. It was built by de Havilland Canada.
Canadaen.wikipedia.org ↗ · Field absent
Checked 30 Sept 2026Recorded cached-source extraction and article inspection. No matching scoped field was extracted; this is not a claim that all five sources were checked.
Retained English infobox, specifications and article text
DHC-3 Otter A DHC-3T Turbine Otter General information Type STOL utility transport Manufacturer de Havilland Canada Status In service Number built 466 History Manufactured 1951–1967 Introduction date 1953 First flight 12 December 1951 Developed into DHC-6 Twin Otter The de Havilland Canada DHC-3 Ott
No check recorded yet.
No check recorded yet.
No check recorded yet.
No check recorded yet.
STOL utility transport
de Havilland Canada
In service
466
1951–1967
1953
12 December 1951
DHC-6 Twin Otter
1 or 2
9–11 passengers (optional 10th seat in main cabin) / 6 stretchers with 4 seats / 2-3 stretchers with 7 seats
41 ft 10 in (12.75 m)
58 ft 0 in (17.68 m)
12 ft 7 in (3.84 m)
375 sq ft (34.8 m 2 )
4,108 lb (1,863 kg)
8,000 lb (3,629 kg)
Total fuel 178 imp gal (214 US gal; 809 L) in :- 51 imp gal (61 US gal; 232 L) front tank ; 85 imp gal (102 US gal; 386 L) middle tank group (two cells) ; 42 imp gal (50 US gal; 191 L) rear tank
1 × Pratt & Whitney R-1340-S1H1-G Wasp 9-cylinder air-cooled radial piston engine, 600 hp (450 kW)
160 mph (260 km/h, 140 kn) at 5,000 ft (1,524 m)
138 mph (222 km/h, 120 kn) 66% power at 5,000 ft (1,524 m)
960 mi (1,540 km, 830 nmi) full internal fuel at 5,000 ft (1,524 m)
9 hours 24 minutes at 5,000 ft (1,524 m)
18,800 ft (5,700 m) S1H1-G engine
735 ft/min (3.73 m/s) at sea level
15 ft 0 in (5 m)
16 ft 5 in (5 m)
5 ft 2 in (2 m)
4 ft 11 in (1 m)
272 cu ft (7.7 m 3 )
38 cu ft (1.1 m 3 )
8.97
NACA 63A516 mod
4,361 lb (1,978 kg)
4,475 lb (2,030 kg)
3-bladed Hamilton Standard , 10 ft 10 in (3.30 m) diameter constant-speed propeller
158 mph (137 kn; 254 km/h) at 5,000 ft (1,524 m)
304 m) S3H1-G engine
aplane S1H1-G engine
aplane S3H1-G engine
iplane S1H1-G engine
iplane S3H1-G engine
1,310 ft (399 m)
975 ft (297 m)
{"datatype": "wikibase-item", "datavalue": {"type": "wikibase-entityid", "value": {"entity-type": "item", "id": "Q16", "numeric-id": 16}}, "hash": "8ce7020b3a7cc8df1fb419a989a1c88db64e49e8", "property": "P495", "snaktype": "value"}
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 12.75 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 12.75 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 12.75 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 12.75 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 12.75 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 12.75 m | Wikipedia contributors | approved |
De Havilland Canada DHC-3 Otter equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
Argentina
BangladeshNumber column of the Wikipedia list table under "Fixed Wing Aircraft". The list's own wording applies; it is a compiled secondary source, not an official census.
United StatesDirectory active-fleet estimate for the source types DHC-3, grouped under De Havilland Canada DHC-3 Otter. Sums only the listed service and role rows; includes training and special-mission versions where explicitly listed. Excludes the separate Ordered column, aircraft in storage, aircraft undergoing or awaiting upgrades, and the directory's other exclusions. This is the dated directory coverage of these types, not a complete owned-fleet census or a readiness count.
Reported count for NU-1B Otter. Service scope: Navy; does not replace a national total. 1 distinct quantity component(s) from the same source list; shared rowspan cells counted once. Explicit source inventory scope: active; no other stock status or total inferred. Count column(s): in service: 1. Origin: Canada. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
