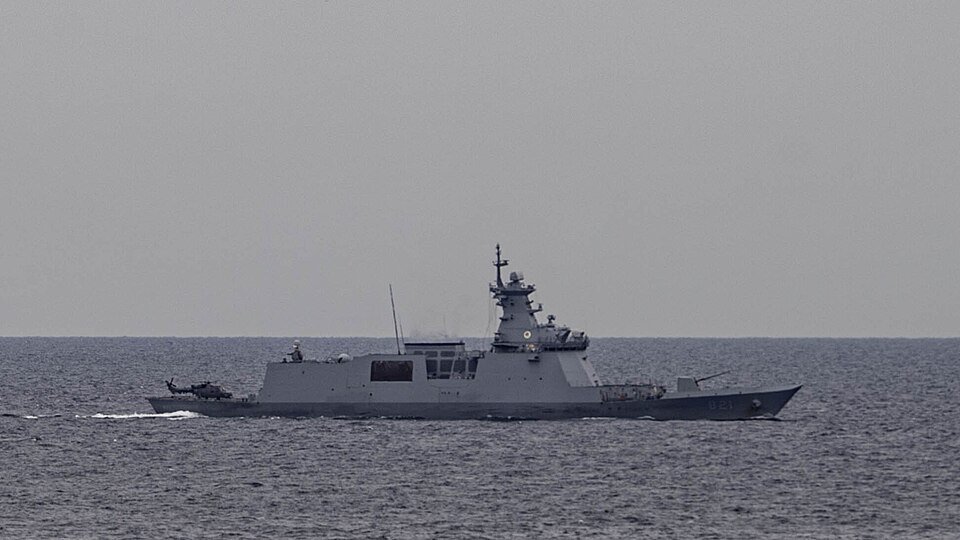

Daegu-class frigate

1. Daegu-class frigate · Wikipedia revision 1365657057 ↗

   Name

   Infobox · Name

   Daegu class

   Builders

   Infobox · Builders

   Daewoo Shipbuilding & Marine Engineering Hyundai Heavy Industries

   Operators

   Infobox · Operators

   Republic of Korea Navy

   Preceded by

   Infobox · Preceded by

   Incheon class

   Succeeded by

   Infobox · Succeeded by

   Chungnam class

   In commission

   Infobox · In commission

   2018–present

   Planned

   Infobox · Planned

   8

   Completed

   Infobox · Completed

   8

   Active

   Infobox · Active

   8

   Type

   Infobox · Type

   Guided missile frigate

   Displacement

   Infobox · Displacement

   3,100 t (empty), 3,600 t (full load)

   Length

   Infobox · Length

   122 m (400 ft 3 in)

   Beam

   Infobox · Beam

   14 m (45 ft 11 in)

   Draft

   Infobox · Draft

   4 m (13 ft 1 in)

   Propulsion

   Infobox · Propulsion

   Combined diesel–electric or gas 1 × Rolls-Royce MT30 gas turbine 4 × MTU 12V 4000 M53B diesel engine 2 × Leonardo DRS electric motors

   Speed

   Infobox · Speed

   30 knots (56 km/h; 35 mph) (max) 18 knots (33 km/h; 21 mph) (cruising)

   Range

   Infobox · Range

   4,500 nmi (8,300 km; 5,200 mi)

   Complement

   Infobox · Complement

   140

   Sensors & processing systems

   Infobox · Sensors & processing systems

   SPS-550K air search 3D radar SPG-540K fire control radar SQS-240K hull-mounted sonar SQR-250K towed array sonar system SAQ-540K EOTS Hanwha Systems SAQ-600K IRSTs Naval Shield Integrated Combat Management System

   Electronic warfare & decoys

   Infobox · Electronic warfare & decoys

   LIG Nex1 SLQ-200(V)K Sonata electronic warfare suite SLQ-261K torpedo acoustic counter measures MASS decoy launchers

   Armament

   Infobox · Armament

   1 × 5-inch (127 mm)/L62 caliber Mk 45 Mod 4 naval gun 1 × 20 mm Phalanx CIWS 6 × K745 Blue Shark torpedo in triple torpedo tubes 16-cell K-VLS for: Haegung K-SAAM quadpacked in 4 per cell Haeryong VL-Tactical Land Attack Missiles K745A1 Red Shark

   Aircraft carried

   Infobox · Aircraft carried

   Super Lynx or AW159 helicopter

   Aviation facilities

   Infobox · Aviation facilities

   Flight deck and enclosed hangar for one medium-lift helicopter
