Warships2016–present
Guided missile frigate

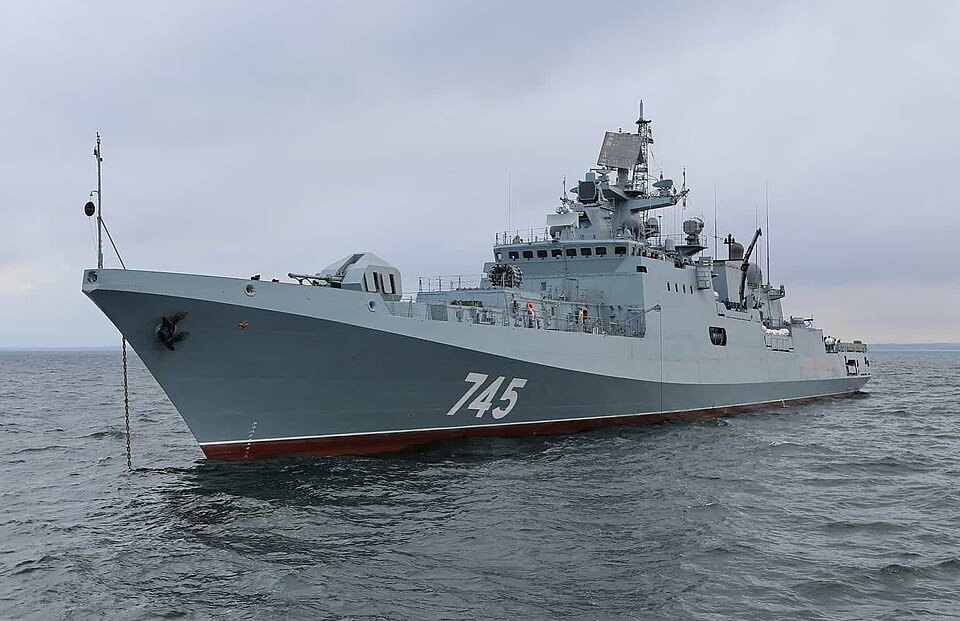

Admiral Grigorovich-class frigate is a guided missile frigate. It was built by Yantar Shipyard , Kaliningrad Goa Shipyard. Reported operators include Russian Navy.
RussiaAdmiral Grigorovich class
Yantar Shipyard , Kaliningrad Goa Shipyard
Russian Navy
Krivak class
Talwar class
2010–present
2016–present
6
1
5
5
Guided missile frigate
Standard: 3,620 tons Full: 4,000 tons
124.8 m (409 ft 5 in)
15.2 m (49 ft 10 in)
4.2 m (13 ft 9 in)
2 shaft COGAG ; 2 DS-71 cruise gas turbines 8,450 shp (6,300 kW); 2 DT-59 boost gas turbines 22,000 shp (16,000 kW) ; Total: 60,900 shp (45,400 kW) or 2 x M90FR FRU 20 (25/28) MW boost , 2 x cruise M70FRU-2 14 MW , 8 MW Total: 56 – 68 MW
30 knots (56 km/h; 35 mph)
4,850 nmi (8,980 km; 5,580 mi) at 14 knots (26 km/h; 16 mph)
30 days
200
Air search radar : Fregat M2M Surface search radar : 3Ts-25 Garpun-B (Plank Shave), MR-212/201-1 (Palm Frond), Nucleus-2 6000A Fire control radar : JSC 5P-10 Puma FCS, 3R14N-11356 FCS, MR-90 Orekh SAM FCS Sonar : MGK-335EM-03 sonar system with Vinyetka-EM towed array
EW suite: TK-25-5; Countermeasures: 4 × KT-216
1 × 100 mm A-190E-01 naval gun 8 (2 × 4) UKSK VLS cells for Kalibr , Oniks or Tsircon cruise missiles 8 BrahMos missiles for India variants 24 (2 × 12) 3S90M Shtil-1 VLS cells for 9M317M/ME surface-to-air-missiles 2 × AK-630 CIWS 8 × Igla-S or Verba MANPADS 2 × DTA-53-11356 twin-tube torpedo launchers 1 × RBU-6000 rocket launcher
1 × Ka-27 series helicopter
Helipad and hangar for one helicopter
{"datatype": "wikibase-item", "datavalue": {"type": "wikibase-entityid", "value": {"entity-type": "item", "id": "Q159", "numeric-id": 159}}, "hash": "00a52fef3ddf91ab8a1d9fcd7f76c683b3340e5e", "property": "P495", "snaktype": "value"}
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 124.8 m | Wikipedia contributors | superseded |
Admiral Grigorovich-class frigate equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
