Submarines1981–present
Attack submarine
Cakra-class submarine is a attack submarine. It was built by Howaldtswerke-Deutsche Werft. Reported operators include Indonesian Navy.

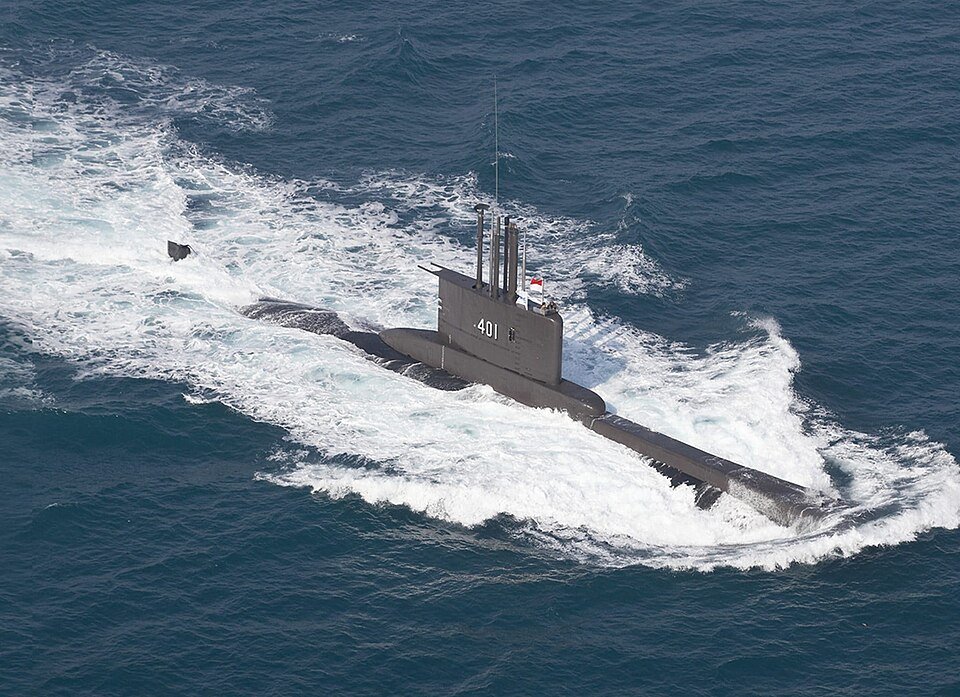

GermanyCakra-class submarine
Indonesian Navy · Public domain · Resized · Public domain · Source ↗ · ModifiedCakra class
Howaldtswerke-Deutsche Werft
Indonesian Navy
Whiskey class
Nagapasa class
1977–1981
1981–present
2
1
1
Attack submarine
1,285 tons surfaced 1,390 tons submerged
59.5 m (195 ft 3 in)
6.2 m (20 ft 4 in)
5.4 m (17 ft 9 in)
4 x MTU 12V493 AZ80 GA31L diesel engines rated at 1.8 MW (2,400 hp ) 4 x Siemens alternators rated at 2,300 hp (1.7 MW ) 1 x Siemens motor rated at 3.4 MW (4,600 hp ) 1 x shaft
11 knots (20 km/h; 13 mph) surfaced 21.5 knots (39.8 km/h; 24.7 mph) submerged
8,200 nmi (15,200 km; 9,400 mi) at 8 kn (15 km/h; 9.2 mph)
50 days
240 m (790 ft)
33
Signaal Sinbad weapons control system Thomson-CSF Calypso, I-band surface search radar Atlas Elektronik CSU 3-2 active/passive search and attack sonar PRS-3/4 passive ranging
ESM : Thomson-CSF DR2000U
8 × 533 mm (21 in) bow tubes 14 x AEG SUT torpedoes
The Cakra class ( Cakra read " chakra " which is a Sanskrit derived word referring to "wheel") is a class of two Type 209/1300 attack submarines developed by Howaldtswerke-Deutsche Werft of Germany that were bought and commissioned by the Indonesian Navy in the 1980s. The second member of the class, KRI Nanggala sank in 2021 with all hands during an exercise . The lead submarine , KRI Cakra , remains in service.
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 29 Sept 2026 | 59.5 m | Wikipedia contributors | superseded |
Cakra-class submarine equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
IndonesiaNavy exact named equipment holdings of Cakra (GER Type-209/1300). Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only, not a national or parent-force total or combat-readiness measure. Source role(s): SUBMARINES / SSK. No heading aggregate, carried armament, crew, payload, factory production or future order count inherited. The leading printed inventory count is retained; separately stated extra reserve, nonoperational or repair quantities inside parentheses are not added to it and remain verbatim in the excerpt. Source parentheses retain employment, lease, reporting designation, alternate model, or included-subset scopes exactly. Own fetched primary and alternate/model identity declarations are retained. Numbers inside an included subset are part of the printed count and are never added again; no sibling or parent specification is copied.
