Armoured vehiclesIn serviceProfile in progress
Infantry fighting vehicle
AIFV is a infantry fighting vehicle originating in United States. Reported operators include Operators.
United StatesTrue scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 5.26 m | Wikipedia contributors | approved |
| 28 Sept 2026 | 5.26 m | Wikipedia contributors | superseded |
Infantry fighting vehicle
United States
Operators
1989 Philippine coup d'état attempt Yugoslav Wars War in Afghanistan Syrian Civil War Battle of Marawi Sinai insurgency Russo-Ukrainian War Russian invasion of Ukraine
Variants
13.6 metric tons (combat load)
5.26 m
2.82 m
2.62 m (to turret roof)
3+7
Aluminum hull with spaced laminate steel appliqué armor on the front and sides
25 mm KBA-B02 cannon (180 rounds ready; 144 in reserve)
7.62×51mm NATO machine gun (230 rounds ready; 1,610 in reserve)
Detroit Diesel Allison 6V-53T 267 hp (195 kW) at 2800 rpm
19.29 hp/t
TX100-1A
Torsion bar in tube
490 km (300 mi)
61 km/h (38 mph)
Bahrain , 25 Netherlands-origin YPR-765 ACV delivered in 1996, 42 Belgium-origin AIFV-IFV delivered in 2008, 8 (est.) Belgium-origin AIFV-APC delivered in 2008
Chile , 139 YPR-765s purchased from the Netherlands and Belgium.
Egypt , More than 1,000 YPR-765s purchased from the Netherlands and Belgium since 1996.
Jordan , 441 YPR-765s purchased from the Netherlands, 58 AIFV-Bs purchased from Belgium.
Lebanon , 16 ex-Belgian AIFV-B-C25 vehicles.
Morocco , 90 ex-Belgian AIFV-B-C25 and 20 AIFV-B-.50, delivered in 2008.
Netherlands , now only uses the YPR-806 A1 PRB (pantserrupsberging) and YPR-KMar (Koninklijke Marechaussee).
Malaysia , 267 FNSS ACV-15 vehicles received.
Philippines , 58 vehicles, composed of 45 AIFV-25 and 6 AIFV-ARV received from the United States in 1979, 6 ACV-300 APCs and 1 ACV-ARV received from FNSS of Turkey in 2010 and 2004, respectively. 6 Units of AIFV-25 Operated by Presidential Security Group
Russia , at least 3 YPR-765 captured in Ukraine during the 2022 Russian invasion of Ukraine .
Serbia , undisclosed number of Dutch YPR-765 captured in Bosnian War 1992–1995, currently 2 in use by Serbian Gendarmerie
Turkey , 2,249 were produced under licence (1,698 between 1990 and 2000 and 551 between 2001 and 2004) 1,380 × AAPC 650 × AIFV 48 × ATV 170 × AMV also some engineering and ambulance variants.
Ukraine , 196 received from the Netherlands.
United Arab Emirates , 133 vehicles received from Turkey.
Belgium , all vehicles replaced by MOWAG Piranha III
Netherlands 2,079 vehicles. Known locally as the YPR-765. Most have been replaced by a combination of CV9035NL , Fennek and Boxer vehicles.

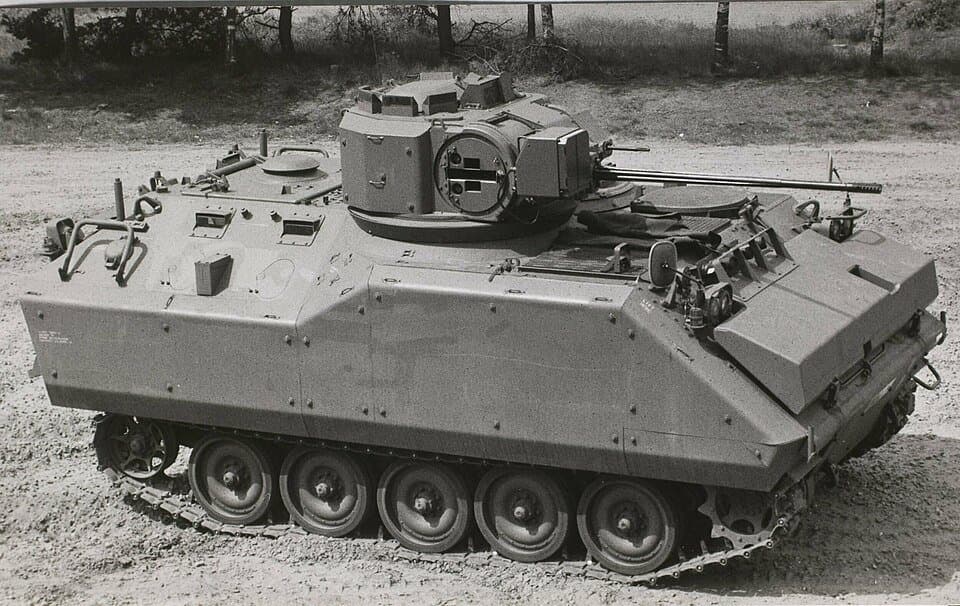

The AIFV ( Armored Infantry Fighting Vehicle ) is an American tracked light armored vehicle that serves as an infantry fighting vehicle (IFV) in the armies of several countries.
The Philippines also received 45 vehicles in 1979, these were intended to take 25mm cannons, although some were later modified to fit 12.7mm machine guns.
Turkey selected the AIFV in 1989, after a competition involving the Alvis Vickers Warrior IFV , Krauss-Maffei PUMA and United Defense LP Armoured Infantry Fighting Vehicle. The total value of the contract for 1,698 vehicles was US$1.076 billion. The first 285 hulls were produced in Belgium, the remaining vehicles were produced entirely in Turkey. A little way into the production run, with 200 vehicles completed, the Turkish AIFV specification was updated to include a more powerful powerpack developing 300 horsepower, an Allison X-200-4 transmission and hydrostatic steering from the M113A3. During the production run, a number of changes were made to the armament of the vehicle, including different turret packages, and powerpacks.
The turret is fitted on the right side of the hull behind the engine. The turret, which has electro-hydraulic traverse, can elevate from -10 to +50° and can traverse and elevate at a speed of 60°/sec. The turret mounts an Oerlikon KBA 25 mm B02 cannon with a dual ammunition feed and 180 rounds of ready use ammo, with another 144 rounds stored in the hull. Mounted to the left of this gun is a 7.62 mm FN MAG machine gun, which has 230 rounds of ready ammo, with a further 1,610 in the hull. There is a six-barrel smoke discharger mounted at the front, just above the large trim vane.
The troop compartment is at the rear of the hull; a large power operated ramp allows access through the rear of the vehicle, a door is also provided in the ramp. Additionally a single piece hatch covers the top of the troop compartment. The compartment contains seven troops in the Dutch variant, with six sitting back to back facing outwards and a single passenger sitting between the command and the turret facing backwards. There are two firing ports in each side of the hull and a single firing port in the rear. The side firing ports are provided with M17 periscopes, the rear one is fitted with an M27 periscope.
AIFV-B — A revised Dutch variant that was fitted with the same suspension as the M113A1-B (similar to the M113A2), an NBC system and a Halon fire suppression system; it entered service in September 1985. Surplus vehicles have been sold to Chile, Indonesia, and the Philippines, with the remaining carriers being phased out in favor of wheeled vehicles. AIFV-B-C25 with a 25 mm Oerlikon KBA -B02 cannon — with smoke grenade launchers fitted on the side of the turret AIFV-B-MILAN with a MILAN anti-tank missile launcher AIFV-B-.50 with a 12.7 mm CWS cupola, two Lyran 71 mm mortars and a pintle mount for a MILAN missile launcher. AIFV-B-CP — command post vehicle with a 12.7 mm cupola (M113 type), a tent, generator and telescopic mast. AIFV-B-TRG — driver training vehicle.
YPR-765 PRI ( pantser-rups-infanterie ) — primary infantry fighting vehicle with a 25 mm Oerlikon KBA -B02 cannon and a coaxial FN MAG machine gun contained in a turret (EWS - Enclosed Weapon Station); crew of three plus seven passengers (normally only five carried); outward-facing bench seats in the rear compartment. YPR-765 PRI.50 — armored personnel carrier with a .50-caliber M2 HB machine gun on an M113-type cupola in place of a turret.
YPR-765 PRCO-series ( pantser-rups-commando , i.e. command post vehicle) YPR-765 PRCO-B — company commander's vehicle with the same EWS-turret as the pri; crew of six plus two passengers; folding table in the rear compartment with two inward-facing seats on either side.
YPR-765 PRCO-C-1 — battalion commander's vehicle with a .50-caliber M2 HB machine gun on an M26 cupola; crew of five plus four passengers; folding table in the rear compartment with a three-seat bench on the left and two seats on the right, all facing inward.
YPR-765 PRRDR ( pantser-rups-radar ) — vehicle equipped with a ZB-298 battlefield surveillance radar, armed with a .50-caliber M2 HB machine gun on an M113-type cupola; crew of four plus two passengers; folding table in the rear compartment, with one inward-facing seat on either side. Each tank battalion and each armored infantry battalion had three of these in its staff and support company. YPR-765 PRDRR-C — radar platoon command vehicle. Withdrawn from service.
YPR-765 PRGWT ( pantser-rups-gewondentransport ) — armored medical evacuation vehicle (AMEV); unarmed; crew of three plus five passengers; rear compartment has two forward-facing seats on the left, bins for the personal equipment of the wounded on either side, and can hold two stretchers on either side, suspended from chains. The vehicle is equipped with a diesel-heater.
YPR-765 PRMR ( pantser-rups-mortiertrekker ) — armored mortar tractor for MO-120-RT 120 mm mortar with a .50-caliber M2 HB machine gun on an M26 cupola; crew of seven, including mortar crew; rear compartment has an inward-facing, three-seat bench on the left and a mortar ammunition rack on the right. Storage racks for 150 mortar rounds.
AIFV-25 — basic infantry fighting vehicle armed with a 25 mm Oerlikon KBA -B02 cannon and a coaxial machine gun
ACV-300 APC — with a 12.7 mm M2 machine gun in a shielded gun cupola; later upgraded with FNSS Saber turrets with either 40mm AGL or 12.7mm M2 machine gun paired with 7.62mm machine gun
ACV-AAPC (advanced armored personnel carrier) — with a one-man turret with a 12.7 mm machine gun and a 7.62 mm machine gun; 13 troops carried.
ACV-AIFV (advanced infantry fighting vehicle) — fitted with a stabilized 25 mm one-man Sharpshooter Turret and has the capacity of carrying 11 personnel. AIFV with FMC EWS (assembled by DAF Special Products) turret with a 25 mm Oerlikon Contraves 25 mm cannon and a coaxial 7.62 mm machine gun AIFV with Giat Dragar turret with a 25 mm M811 cannon and a coaxial 7.62 mm machine gun.
ACV-ATV — Armored Tow Vehicle. Fitted with a Norwegian one-man turret with two BGM-71 TOW missiles in a ready to launch position, and four troops carried.
ACV-AMV — Armored Mortar Vehicle. Fitted with an 81 mm mortar and a 7.62 mm machine gun.
120mm AMV — A private venture, armed with a TDA 120 mm recoiling mortar in the rear of the vehicle. Not in service.
ACV-300 — Fitted with a 300 hp (220 kW) powerpack similar to the M113A3.
ACV-350 — Fitted with a 350 hp (260 kW) powerpack.
ACV-S/ACV-19 — A stretched version of the AIFV with an additional road wheel and extra armor giving resistance to 14.5 mm AP projectiles, with an upgraded 350 or 400 hp (300 kW) powerpack. Weight is 18,000 kg. A variety of turrets are available, including 12.7 mm, 25 mm ( FNSS Sharpshooter Turret ) and 30 mm as well as an Eryx missile launcher and 120 mm mortar turret.
AIFV-B Utility armoured vehicle US N/A They are units that use dozer blades.
AIFV United States Armoured personnel carrier 123 19 AIFV-B-.50 + 90 AIFV-B-C25 + 1 AIFV-B-CP
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
AIFV equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
BahrainReported count for IFV. Service scope: Royal Bahraini Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): number: 75. Origin: United States Netherlands. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
