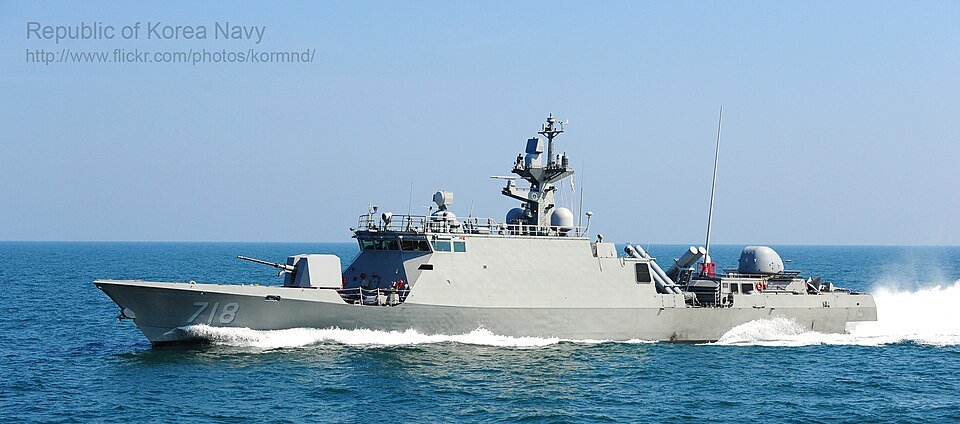

Yoon Youngha-class patrol vessel

1. Yoon Youngha-class patrol vessel · Wikipedia revision 1371776265 ↗

   Name

   Infobox · Name

   Yoon Youngha class

   Builders

   Infobox · Builders

   Hanjin Heavy Industries, STX

   Operators

   Infobox · Operators

   Republic of Korea Navy

   Preceded by

   Infobox · Preceded by

   Chamsuri class

   Subclasses

   Infobox · Subclasses

   PKX-A(PKG) ( Yoon Youngha class) PKX-B(PKMR)

   Cost

   Infobox · Cost

   ₩ 48.8 billion $37.7 million (constant 2009 USD)

   In commission

   Infobox · In commission

   2008–present

   Planned

   Infobox · Planned

   PKX-A(PKG): 18, PKX-B(PKMR): 34

   Completed

   Infobox · Completed

   PKX-A(PKG): 18, PKX-B(PKMR): 16

   Active

   Infobox · Active

   PKX-A(PKG): 18, PKX-B(PKMR): 16

   Type

   Infobox · Type

   Patrol boat

   Displacement

   Infobox · Displacement

   570 tonnes (561 long tons)

   Length

   Infobox · Length

   63 m (206 ft 8 in)

   Beam

   Infobox · Beam

   9 m (29 ft 6 in)

   Draft

   Infobox · Draft

   3 m (9 ft 10 in)

   Propulsion

   Infobox · Propulsion

   Combined diesel and gas (CODAG) 2 × Hanwha Techwin / GE LM500 gas turbine 4,570 kW (6,130 hp) 2 × Doosan / MTU 12V 595 TE90 3,240 kW (4,340 hp) (711) 2 × STX/ MTU 16V 1163 TB93 5,920 kW (7,940 hp) (712~733) 3 × Doosan Heavy Industries waterjets

   Speed

   Infobox · Speed

   44 knots (81 km/h; 51 mph)

   Range

   Infobox · Range

   1,998 nmi (3,700 km) at 15 kn (28 km/h; 17 mph)

   Complement

   Infobox · Complement

   40

   Sensors & processing systems

   Infobox · Sensors & processing systems

   STX RadarSys SPS-100K surface search radar LIG Nex1 SPS-540K 3D surveillance radar Saab CEROS 200 Fire Control Radar and optronic sight Hanwha systems electro-optical targeting system

   Electronic warfare & decoys

   Infobox · Electronic warfare & decoys

   2 × T.S Tech K-RBOC Mk36 chaff/flare dispenser LIG Nex1 Sonata SLQ-200(V)K ECM/ECCM suite

   Armament

   Infobox · Armament

   Hyundai Wia (after 3rd ship) 76 mm gun S&T Dynamics 'Nobong' 40L/70K dual 40 mm gun 4 × LIG Nex1 SSM-700K Haesung anti-ship cruise missile 2 × S&T Dynamics K6 12.7 mm machine guns

   Alternative designation

   Infobox · Name · exact equipment identity

   Name Yoon Youngha class
