Military transport & logisticsIn serviceProfile in progress

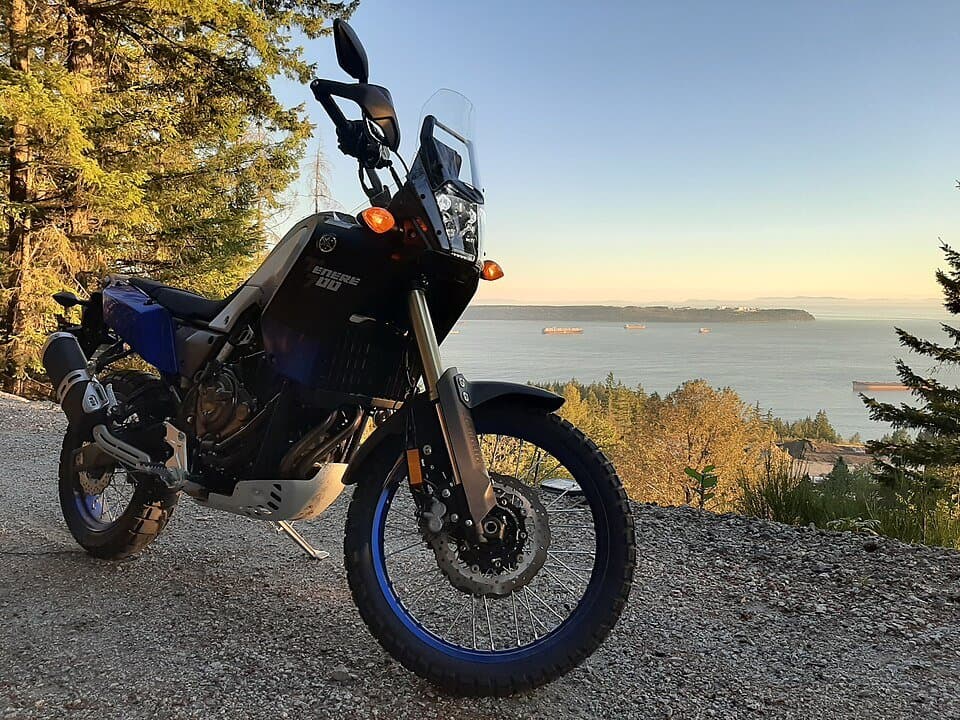

Yamaha Ténéré 700 is documented in the equipment reference catalogue. It was built by Yamaha Motor Company.
Technical data
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 30 Sept 2026 | 2.37 m | Bundeswehr | superseded |
| 30 Sept 2026 | 2.37 m | Bundeswehr | superseded |
| 30 Sept 2026 | 2.37 m | Bundeswehr | approved |
en.wikipedia.org ↗ · Field absent
Checked 30 Sept 2026Recorded cached-source extraction and article inspection. No matching scoped field was extracted; this is not a claim that all five sources were checked.
Retained English infobox, specifications and article text
Yamaha Ténéré 700 Manufacturer Yamaha Motor Company Production Since 2019 Predecessor Yamaha XT660Z Ténéré Class Dual-sport Engine 689.6 cc (42.08 cu in) liquid-cooled 4-stroke 8-valve DOHC parallel-twin with crossplane crankshaft Bore / stroke 80.0 mm × 68.6 mm (3.1 in × 2.7 in) Compression ratio 1
No check recorded yet.
No check recorded yet.
No check recorded yet.
No check recorded yet.
Yamaha Motor Company
Since 2019
Yamaha XT660Z Ténéré
Dual-sport
689.6 cc (42.08 cu in) liquid-cooled 4-stroke 8-valve DOHC parallel-twin with crossplane crankshaft
80.0 mm × 68.6 mm (3.1 in × 2.7 in)
11.5:1
53.8 kW (72.1 hp) @ 9,000 rpm
68.00 N⋅m (50.15 lbf⋅ft) @ 5,500 rpm
6-speed wet multiplate clutch; chain drive
Front: USD Telescopic forks Rear: Monoshock
Front: 282 mm twin discs Rear: 245 mm single disc
Front: 90/90R21 Rear: 150/70R18
24.8° / 90 mm (3.5 in)
1,590 mm (63 in)
L : 2,365 mm (93.1 in) W : 915 mm (36.0 in) H : 1,455 mm (57.3 in)
875 mm (34.4 in)
205 kg (452 lb) ( wet )
16 L (3.5 imp gal; 4.2 US gal)
3 L (3.2 US qt)
XT1200Z Super Ténéré , XT660R
Hersteller Yamaha
Motor Zweizylinder-Viertaktmotor, flüssigkeitsgekühlt, 700 ccm Hubraum
Leistung 54 kW (74 PS) bei 9.000 U/min
Leistung 54 kW (74 PS) bei 9.000 U/min
Länge / Breite / Höhe 2,37 m / 0,90 m / 1,45 m
Länge / Breite / Höhe 2,37 m / 0,90 m / 1,45 m
Länge / Breite / Höhe 2,37 m / 0,90 m / 1,45 m
Radstand 1,59 m
Gewicht 208 kg
Tankinhalt 16 l
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
Yamaha Ténéré 700 equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
Germany
