Victory-class corvette

1. Victory-class corvette · Wikipedia revision 1341167142 ↗

   Name

   Infobox · Name

   Victory class

   Builders

   Infobox · Builders

   Friedrich Lürssen Werft / ST Engineering (Marine)

   Operators

   Infobox · Operators

   Republic of Singapore Navy

   Succeeded by

   Infobox · Succeeded by

   Victory-class MRCV

   Completed

   Infobox · Completed

   6

   Active

   Infobox · Active

   6

   Type

   Infobox · Type

   Corvette

   Displacement

   Infobox · Displacement

   595 t (586 long tons; 656 short tons)

   Length

   Infobox · Length

   62 m (203 ft 5 in)

   Beam

   Infobox · Beam

   8.5 m (27 ft 11 in)

   Draught

   Infobox · Draught

   2.6 m (8 ft 6 in)

   Propulsion

   Infobox · Propulsion

   4× Maybach MTU 16 V 538 TB93 high speed diesels coupled to 4× shafts Total output: 16,900 hp (12,600 kW)

   Speed

   Infobox · Speed

   Maximum: 37 knots (69 km/h; 43 mph) Cruising: 18 knots (33 km/h; 21 mph)

   Range

   Infobox · Range

   4,000 nmi (7,400 km) at 18 knots (33 km/h; 21 mph)

   Complement

   Infobox · Complement

   49 with 8 officers

   Sensors & processing systems

   Infobox · Sensors & processing systems

   Search radar : Ericsson/Radamec Sea Giraffe 150HC (G/H band) / Saab Sea Giraffe AMB post-2011 SLEP Navigation radar : Kelvin Hughes 1007 ( I band ) Weapon control : Elbit MSIS optronic director Sonar : Thomson Sintra TSM 2064 VDS

   Electronic warfare & decoys

   Infobox · Electronic warfare & decoys

   ESM : Elisra SEWS ECM : RAFAEL RAN 1101 Jammer Decoys : 2× Plessey Shield 9-barrelled chaff launchers, 2× twin RAFAEL long range chaff launchers fitted below the bridge wings

   Armament

   Infobox · Armament

   Anti-ship : 8 × Boeing Harpoon Anti-air : 2 × 8-cell VLS for IAI / RAFAEL Barak Anti-submarine : EuroTorp A244/S Mod 1 torpedoes launched from 2 × triple-tubes(all removed) Main gun : 1 × Oto Melara 76mm Super Rapid gun Machine guns : 4 × STK 50MG 12.7 mm (0.50 in) HMGs

   Aircraft carried

   Infobox · Aircraft carried

   1× Boeing ScanEagle unmanned aerial vehicle (UAV)

   Notes

   Infobox · Notes

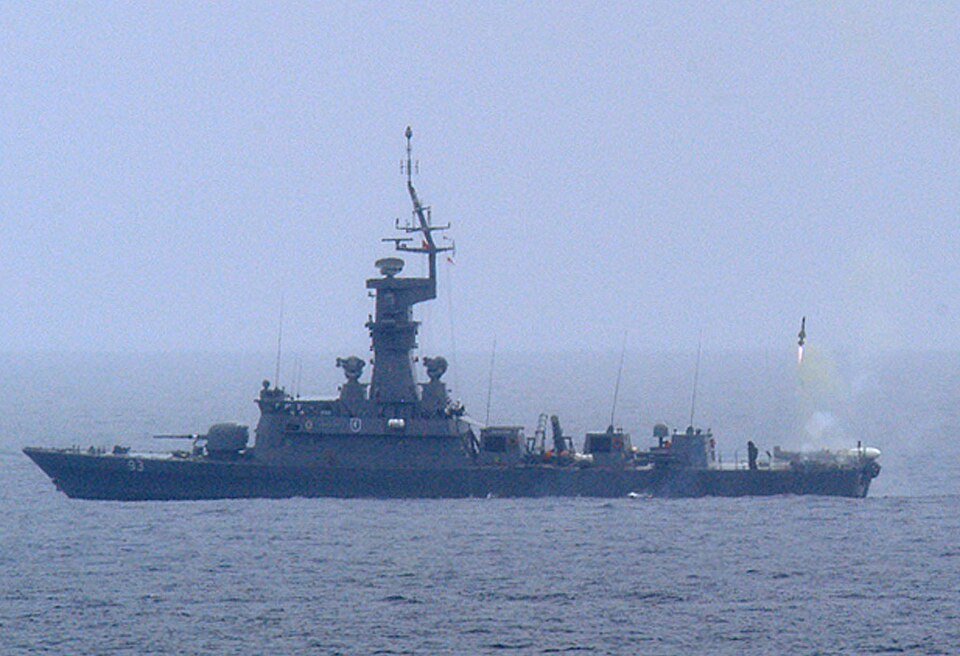

   Ships in class include: RSS Victory (88) RSS Valour (89) RSS Vigilance (90) RSS Valiant (91) RSS Vigour (92) RSS Vengeance (93)

2. Wikidata contributors ↗

   Country of origin

   Wikidata P495 · Q2260304$869BE53E-DC43-4057-83D0-424399BB62B8

   Germany 0 references
