Armoured vehicles1998–present

URO VAMTAC

Name: URO VAMTAC specifications
Creator: ForceTally

Multi-purpose armored vehicle

URO VAMTAC is a multi-purpose armored vehicle originating in Spain. The cited manufacturer or builder is UROVESA.

Origin: Spain
Manufacturer: UROVESA

Compare

Image credit

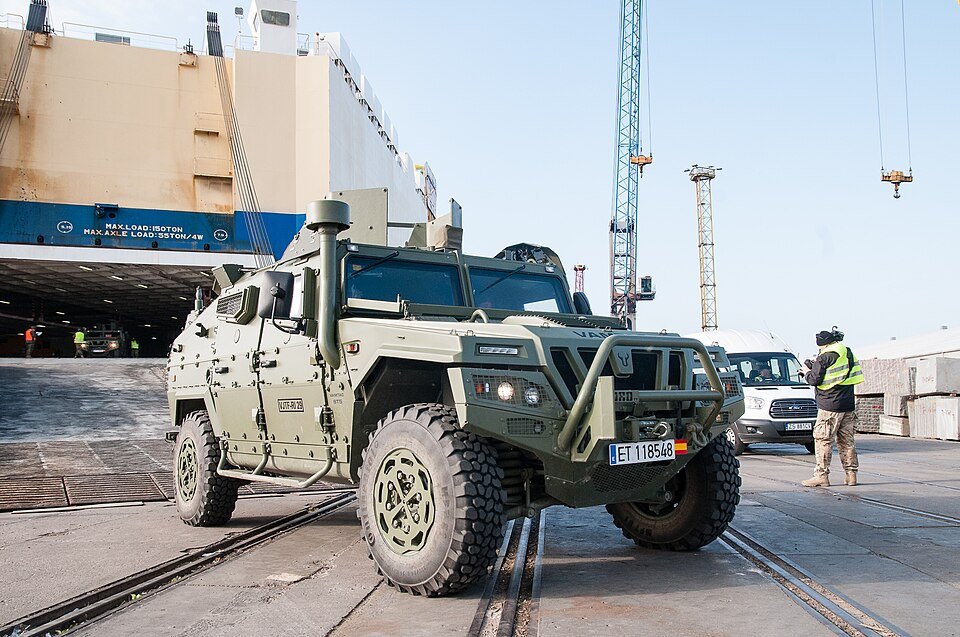

URO VAMTAC

Multinational Corps Northeast · CC BY 2.0 · Resized · CC BY 2.0 · Source ↗ · Modified

Length: 5.55m
Width: 2.18m
Speed: 135km/hMaximum
Range: >600km>
Power: 183kW
Height: 1.9m

Technical data

Specifications

30 fields · 2 sources · retrieved 28 Sept 2026

Dimensions & mass

Length: 4.845 metres (15.90 ft) / 5.55 metres (18.2 ft)¹
Width: 2.175 metres (7 ft 1.6 in)¹

True scale

Size in context

Length: 5.55 m
Height: 1.9 m
Person: 1.75 m

Sourced dimensions beside a 1.75 m human reference.

Measurement history Earlier and superseded figures

Evidence over time

Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.

Observation / report period	Value	Source	Claim state
28 Sept 2026	4.845 m	Wikipedia contributors	superseded
28 Sept 2026	4.845 m	Wikipedia contributors	superseded
28 Sept 2026	4.845 m	Wikipedia contributors	superseded
28 Sept 2026	4.845 m	Wikipedia contributors	superseded
28 Sept 2026	4.845 m	Wikipedia contributors	superseded
28 Sept 2026	4.845 m	Wikipedia contributors	superseded
28 Sept 2026	4.845 m	Wikipedia contributors	approved

Sources & original excerpts2 references

URO VAMTAC · Wikipedia revision 1371631770 ↗
Type
Infobox · Type
Multi-purpose armored vehicle
Place of origin
Infobox · Place of origin
Spain
In service
Infobox · In service
1998–present
Used by
Infobox · Used by
See operators
Designer
Infobox · Designer
UROVESA
Manufacturer
Infobox · Manufacturer
UROVESA
No. built
Infobox · No. built
at least 4,500
Variants
Infobox · Variants
VAMTAC I3, S3, and ST5
Length
Infobox · Length
4.845 metres (15.90 ft) / 5.55 metres (18.2 ft)
Width
Infobox · Width
2.175 metres (7 ft 1.6 in)
Height
Infobox · Height
1.9 metres (6 ft 3 in)
Crew
Infobox · Crew
1+3
Engine
Infobox · Engine
Steyr 6.7L 6-cylinder turbocharged diesel 245 HP
Payload capacity
Infobox · Payload capacity
1500–2000 kg
Transmission
Infobox · Transmission
6 speed automatic
Suspension
Infobox · Suspension
4-wheel independent (double wishbones with coil-springs)
Fuel capacity
Infobox · Fuel capacity
110 litres (24 imp gal; 29 US gal)
Operational range
Infobox · Operational range
>600 kilometres (370 mi)
Maximum speed
Infobox · Maximum speed
135 kilometres per hour (84 mph)
Reported operator · Dominican Republic
Operators · Current operators
Dominican Republic
Reported operator · Ghana
Operators · Current operators
Ghana
Reported operator · Indonesia
Operators · Current operators
Indonesia
Reported operator · Iraq
Operators · Current operators
Iraq
Reported operator · Malaysia
Operators · Current operators
Malaysia
Reported operator · Mali
Operators · Current operators
Mali
Reported operator · Morocco
Operators · Current operators
Morocco
Reported operator · Portugal
Operators · Current operators
Portugal
Reported operator · Romania
Operators · Current operators
Romania
Reported operator · Saudi Arabia
Operators · Current operators
Saudi Arabia
Reported operator · Singapore
Operators · Current operators
Singapore
Reported operator · Spain
Operators · Current operators
Spain
Reported operator · Oman
Operators · Current operators
Oman
Reported operator · Ukraine
Operators · Current operators
Ukraine
UROVESA ↗
Engine
Specifications (ST5) · ST5 / VAMTAC / Labelled li: Engine
Engine: 187-245 HP
Gross weight
Specifications (ST5) · ST5 / VAMTAC / Labelled li: GVW
GVW: 5.300 -11.000 Kg

Reference text from Wikipedia contributors, used under CC BY-SA 4.0.

Operator countries

15 countries documented

URO VAMTAC equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.

Dominican Republic
80Reported holdingsURO VAMTAC · reported variants · Dominican ArmyEstimate · Period Source snapshot 2026-09-30 · inventory date unstated · Wikipedia list · original not yet checked
Count scope
Reported count for URO VAMTAC ST5. Service scope: Dominican Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 80. Origin: Spain. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Ghana
Indonesia
57Reported holdingsURO VAMTAC · reported variants · Indonesian ArmyEstimate · Period Source snapshot 2026-09-30 · inventory date unstated · Wikipedia list · original not yet checked
Count scope
Reported count for URO VAMTAC. Service scope: Indonesian Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 57. Origin: Spain. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Iraq
Malaysia
≥103Reported holdingsURO VAMTAC · reported variants · Malaysian ArmyEstimate · Period Source snapshot 2026-09-30 · inventory date unstated · Wikipedia list · original not yet checked
Count scope
Lower-bound count for URO VAMTAC S3. Service scope: Malaysian Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 103+. Origin: Spain. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Mali
Morocco
Oman
Philippines
2Reported holdingsURO VAMTAC · reported variants · Philippine Marine CorpsEstimate · Period Source snapshot 2026-09-30 · inventory date unstated · Wikipedia list · original not yet checked
Count scope
Reported count for URO VAMTAC · ST5. Service scope: Philippine Marine Corps; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): in service: 2. Origin: Spain. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Portugal
139Reported holdingsURO VAMTAC · reported variants · Portuguese ArmyEstimate · Period Source snapshot 2026-09-30 · inventory date unstated · Wikipedia list · original not yet checked
Count scope
Reported count for URO Vamtac ST5 BN3. Service scope: Portuguese Army; does not replace a national total. 4 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 107 / quantity: 12 / quantity: 7 / quantity: 13. Origin: Spain. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Romania
Saudi Arabia
30Reported holdingsURO VAMTAC · reported variants · Saudi Arabian ArmyEstimate · Period Source snapshot 2026-09-30 · inventory date unstated · Wikipedia list · original not yet checked
Count scope
Reported count for URO VAMTAC. Service scope: Saudi Arabian Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 30. Origin: Spain. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Singapore
Spain
2,910Reported holdingsURO VAMTAC · reported variants · Spanish ArmyEstimate · Period Source snapshot 2026-09-30 · inventory date unstated · Wikipedia list · original not yet checked
Count scope
Reported count for URO VAMTAC / VAMTAC. Service scope: Spanish Army; does not replace a national total. 2 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 2900 / quantity: 10. Origin: Spain. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Ukraine
