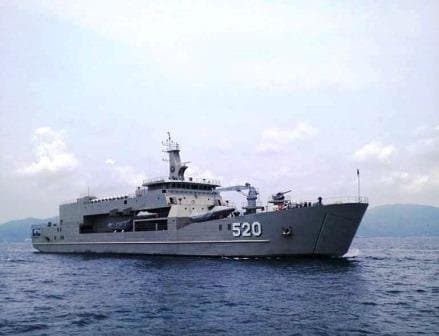

Teluk Bintuni-class tank landing ship

1. Teluk Bintuni-class tank landing ship · Wikipedia revision 1350865356 ↗

   Name

   Infobox · Name

   Teluk Bintuni class

   Builders

   Infobox · Builders

   PT Dok & Perkapalan Kodja Bahari (Persero) PT Daya Radar Utama PT Bandar Abadi Shipyard

   Operators

   Infobox · Operators

   Indonesian Navy

   Preceded by

   Infobox · Preceded by

   Teluk Gilimanuk class

   Cost

   Infobox · Cost

   US$ 16 million per unit

   Built

   Infobox · Built

   2012-present

   In service

   Infobox · In service

   2015–present

   Planned

   Infobox · Planned

   12

   Completed

   Infobox · Completed

   9

   Active

   Infobox · Active

   9

   Type

   Infobox · Type

   Landing ship tank

   Displacement

   Infobox · Displacement

   2,300 tons

   Length

   Infobox · Length

   117–120 m (383 ft 10 in – 393 ft 8 in)

   Beam

   Infobox · Beam

   16–18 m (52 ft 6 in – 59 ft 1 in)

   Height

   Infobox · Height

   11 m (36 ft 1 in)

   Propulsion

   Infobox · Propulsion

   2 x 3,285 kW (4,405 hp ) main engines

   Speed

   Infobox · Speed

   16 knots (30 km/h; 18 mph)

   Range

   Infobox · Range

   6,240 nmi (11,560 km; 7,180 mi) at 12 knots (22 km/h; 14 mph)

   Capacity

   Infobox · Capacity

   10 unit Leopard 2A4 main battle tanks or 15 unit BMP-3F infantry fighting vehicles 4 unit LCVPs 1 unit RIB 10 m rubber boat 2 unit RIB 7 m rubber boat

   Troops

   Infobox · Troops

   361

   Complement

   Infobox · Complement

   119 total

   Armament

   Infobox · Armament

   117 meters variant : 2 x Bofors 40 mm/L70 guns 2 x 12.7 mm machine guns 120 meters variant : 1 x OTO Marlin 40 guns 1 x 20 mm cannon 2 x 12.7 mm machine guns

   Aircraft carried

   Infobox · Aircraft carried

   2 x 10-ton helicopter

   Displacement

   Design · Displacement

   With a crew of 119, consisting of 113 sailors and 6 helicopter crew, she has a displacement of 2,300 tonnes and has a maximum speed of 16 knots (30 km/h; 18 mph).

   Troop capacity

   Infobox · Troops

   Troops 361

   Draught

   Design · Draught

   Teluk Bintuni has a length of 120 metres (393 ft 8 in), a beam measuring 18 metres (59 ft 1 in), and a height of 7.8 metres (25 ft 7 in) with a draft of 3 metres (9 ft 10 in).

2. Wikipedia contributors ↗

   Country of origin

   List of active Indonesian Navy ships · Origin column 5 · teluk-bintuni-class-tank-landing-ship

   Teluk Bintuni class Landing Ship Tank KRI Teluk Kendari (518) Indonesia In active service. (520), (522), (523), (524) features a large hangar to support sustained helicopter operation. Only (520) has the length of 120 meters and 18 meters beam, the rest of the class were 117 meters long and has 16.4 meters wide beam.

Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
