Remote weapon stationsIn service
remote weapon station
Saab Trackfire is a remote weapon station. It was built by Saab Group. Reported operators include Finnish Navy.

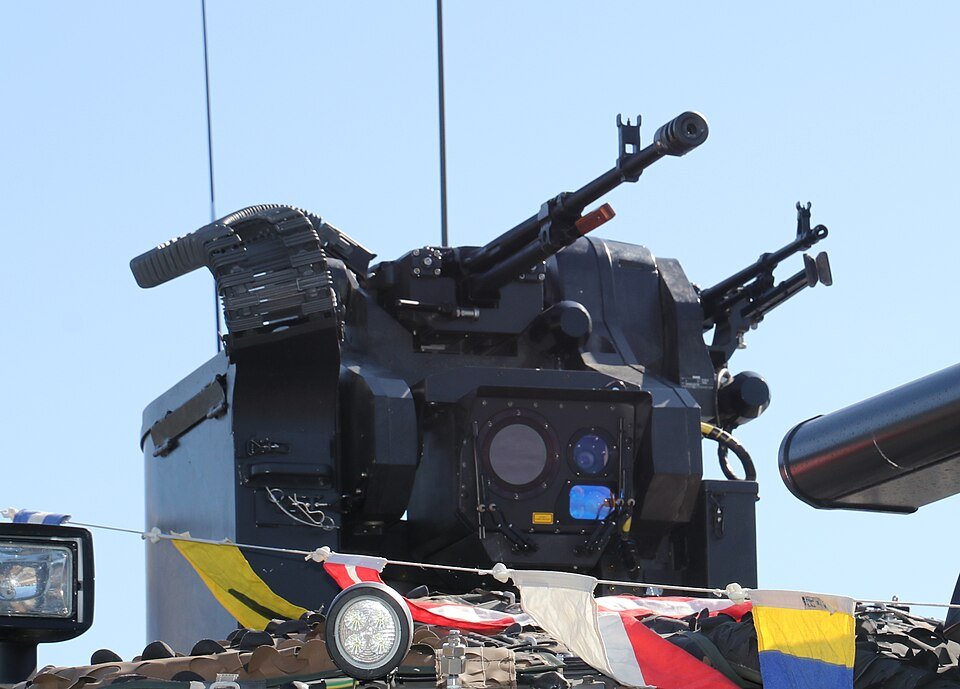

SwedenSaab Trackfire — Jehu U707 reference configuration (2016) — licensed photograph
MKFI · Public domain · Resized · Public domain · Source ↗ · ModifiedIt is manufactured by Saab Group .
is a remote weapon station
i.e. a remotely operated weapon system
can be fitted with either medium or light caliber weapons
It can be mounted on vehicles, ships and stationary platforms
Ships and vessels using the Trackfire in the Finnish Navy
Director Unit: ~280 kg (excl. weapons and ammunition)
Height: ~950 mm
Width: ~1050 mm
Cooled IRV-sensor in spectral band 3 – 5 µm
Day camera with 40°- 2° optical zoom
Laser Range Finder (LRF) (Class 1, Eyesafe): >4000 meter, <+/- 5 m
Elevation: -20° to +55
Azimuth (side): +/-15° relative DU azimuth axis
Example primary weapons: M2 12.7 mm heavy machine gun, 30x113 mm M230LF Bushmaster chain gun.
Example secondary weapon: FN MAG 58 7.62 mm general purpose machine gun
Elevation -20° till +55°
Azimuth: nx360° (full 360-degree continuous rotation)
Angular velocity az & el: 120 deg/s (max)
Acceleration az & el: 400 deg/s²
Temperature (operational): -30°C to +55°C
EMC according to MIL-STD-461F and MIL-STD-810G
Trackfire RWS consists of the following main units: Director Unit (DU) Sensor Module (SM) Human Machine Interface (HMI) Gunners Display (GD) Fire Control Panel (FCP) Control Handle (CH) Video Tracker (VT)
Technical specification Sensor Cooled IRV-sensor in spectral band 3 – 5 µm IRV-sensor is equipped with electrical image processing (NIR- and polarization filter) Day camera with 40°- 2° optical zoom Laser Range Finder (LRF) (Class 1, Eyesafe): >4000 meter, <+/- 5 m
With its fully stabilised, remotely operated weapons and sensor system
Saab Trackfire — Sweden RCWS Remote controlled weapon station 8 (2 × per ship) Pohjanmaa class Selected in 2012 for the Navy. Primary weapon: 1 × NSV (ITKK 96) , or 1 × H&K GMG (40 KRKK 2005) Coaxial weapon: 1 × PKM (7.62 KK PKM) machine gun
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 1 Oct 2026 | 1.05 m | Saab | superseded |
| 1 Oct 2026 | 1.05 m | Saab | superseded |
| 1 Oct 2026 | 1.05 m | Saab | approved |
Saab Trackfire equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
FinlandReported count for Saab Trackfire. Service scope: Finnish Navy; does not replace a national total. 3 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): quantity: 4 (1 × per ship) / quantity: 3 (1 × per ship) / quantity: 12 (1 × per ship). Origin: Sweden. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Sweden
