Military transport & logistics2007–present
Tactical military truck
RMMV HX range of tactical trucks is a tactical military truck originating in Austria (see History ). It was built by Rheinmetall MAN Military Vehicles (RMMV).

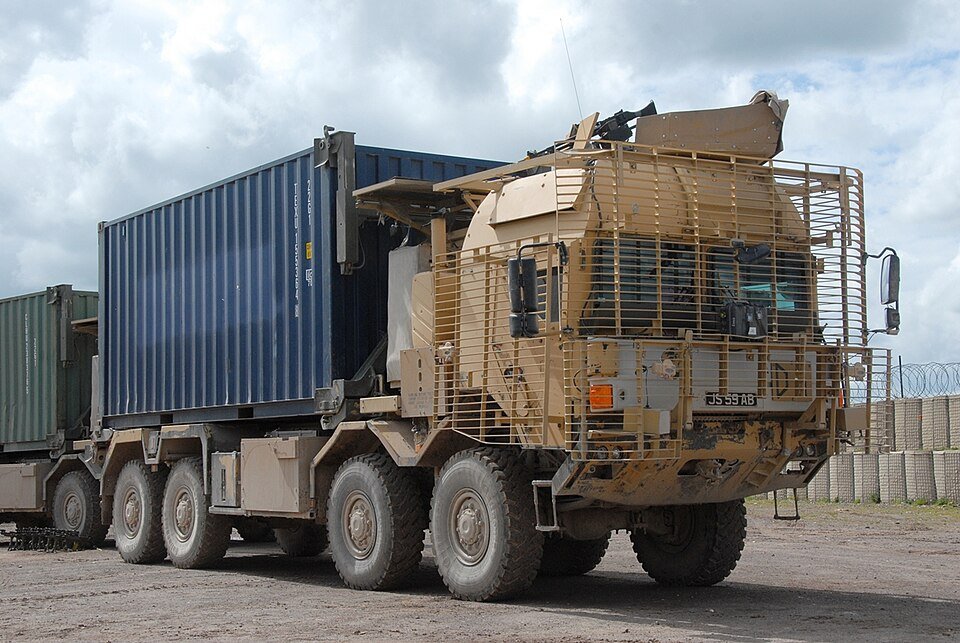

RMMV HX range of tactical trucks
UndateableOne · CC BY-SA 4.0 · Resized · CC BY-SA 4.0 · Source ↗ · ModifiedTactical military truck
Austria (see History )
2007–present
See Operators
RMMV
2002
Rheinmetall MAN Military Vehicles (RMMV)
2005–present
19,535 est. Confirmed orders, not including options/remaining available call-offs on framework contracts, or any figure for Austrian framework contract. Est. 350 for Norway/Sweden as numbers currently unclear, and 270 estimate for Colombia, Egypt, Saudi Arabia, Thailand, Turkey, U.S., UAE, Ukraine (not including cascaded used/surplus) and Vietnam as no accurate data available)
HX60 4×4, HX58 6×6, HX61 6×6, HX77 8×8, HX81 HET 8×8, 40M 4×4 (HX2), 42M 6×6 (HX2), 44M 8×8 (HX2), 45M 10×10 (HX2)
13,500 kg ( chassis cab ); 32,000 kg (laden); 44,000 kg (GCWR)
10.336 m ( chassis cab )
2.5 m
3.3 m (cab, unladen )
Driver + 2 (protected cab options; see main text)
MAN D2066, 10.518-litre, 6-cylinder inline water-cooled EURO 4 compliant diesel developing 440 hp @ 1900 rpm and 2100 Nm torque @ 1000 rpm
17,000 kg (on chassis cab ; approximate 15,000 kg cargo payload)
ZF 12 AS 23010D AS-Tronic (automated) with 12 forward and 2 reverse gears; MAN G172 two-speed transfer case with engageable front axle(s) drive
Parabolic leaf springs with progressively acting rubber assistors and hydraulic telescopic shock absorbers (front); inverted multi-leaf trapezoidal springs with radius rods (rear); anti-roll bar on second rear axle, rear
400 litres
800 km (laden)
100 km/h (technical maximum, unlimited)
power-assisted on front tandem
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 10.336 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 10.336 m | Wikipedia contributors | approved |
RMMV HX range of tactical trucks equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
Australia
AustriaNumber column of the Wikipedia list table under "Logistics", 5 rows summed. The list's own wording applies; it is a compiled secondary source, not an official census.
CanadaReported count for RMMV HX44M Heavy Recovery Vehicle. Country-wide list; no individual service specified. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 100. Origin: Germany Canada. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Denmark
Germany
HungaryReported count for RMMV HX range of tactical trucks · HX77. Service scope: Hungarian Ground Forces; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity in active service: 63. Origin: Austria Germany. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
IrelandReported count for MAN HX60. Service scope: Irish Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): number: 3 or more. Origin: Germany. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
KosovoReported count for HX44M 8×8 (HX2). Country-wide list; no individual service specified. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): number: 15. Origin: Germany. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
New ZealandReported count for RMMV Medium and Heavy Operational Vehicle / RMMB HX44M - Heavy recovery vehicles. Service scope: New Zealand Army; does not replace a national total. 2 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): number: 197 / number: 3. Origin: Austria Germany. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
NorwayReported count for RMMV HX2 / RMMV HX2 8×8. Service scope: Norwegian Army; does not replace a national total. 2 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 103 / quantity: 24. Origin: Germany Austria. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
SlovakiaReported count for MAN HX. Service scope: Slovak Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 20. Origin: Germany. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
UkraineReported count for HX81 Heavy Equipment and Tank Transporters · Heavy Equipment and Tank Transporters / MAN HX · 8x8. Country-wide list; no individual service specified. 2 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): number: 90 / number: 90. Origin: Austria Germany. The listed variants/roles are the scope, not an immediately deployable count. Dates are the count-cell citations' stated source period (2024), not the article revision. Cited source 2024-10-17. Edition or publication years do not claim an exact inventory census day.
United Kingdom
VietnamAustralia, Canada, Germany, Ukraine, United Kingdom
