Naval support & landing craftIn development
Joint support ship

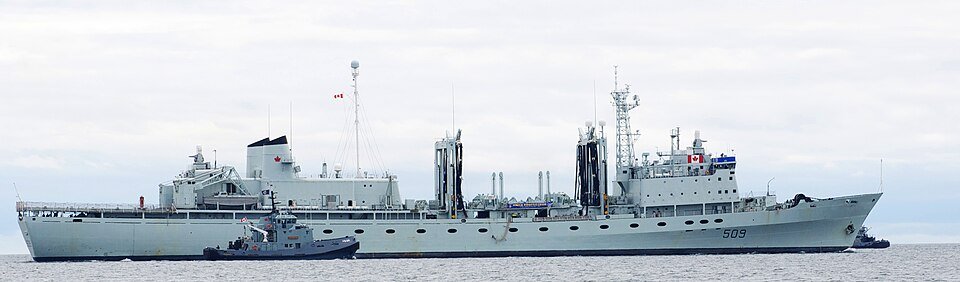

Protecteur-class auxiliary vessel is a joint support ship. It was built by Seaspan ULC , North Vancouver. Reported operators include Royal Canadian Navy.
CanadaProtecteur-class auxiliary vessel
jayscratch · CC BY-SA 2.0 · Resized · CC BY-SA 2.0 · Source ↗ · ModifiedProtecteur class
Seaspan ULC , North Vancouver
Royal Canadian Navy
Protecteur class
CA$2.6 billion (2015 estimate); $4.1bn (2020 estimate)
2
2
1 (Fitting out)
Joint support ship
20,240 t (19,920 long tons )
173.7 m (569 ft 11 in)
24 m (78 ft 9 in)
17.5 m (57 ft 5 in)
7.4 m (24 ft 3 in)
2 × MAN 12V32/44CR propulsion engines 2 × propulsion shafts 1 × bow thruster 4 × MAN diesel generators
20 knots (37 km/h; 23 mph)
10,895 nmi (20,178 km; 12,538 mi) at 15 knots (28 km/h; 17 mph)
2 × Ship-to-Shore Connector pontoon systems
199 core crew 239 with 2 × air detachments
Command & control Lockheed Martin Canada CMS 330 Combat System OSI Maritime Systems Integrated Navigation and Tactical System (INTS) Rhode & Schwartz Communications Systems Surveillance & weapon sensors Saab Sea Giraffe AMB
2 × Phalanx CIWS 4 × .50-calibre RWS
2 × CH-148 Cyclone each armed with: 2 × Mk 54 MAKO Torpedo 1 × C6 FLEX 7.62 mm (0.300 in) GPMG
Hangar and flight deck capable of holding Chinook size helicopters
Canada 0 references
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 29 Sept 2026 | 173.7 m | Wikipedia contributors | superseded |
