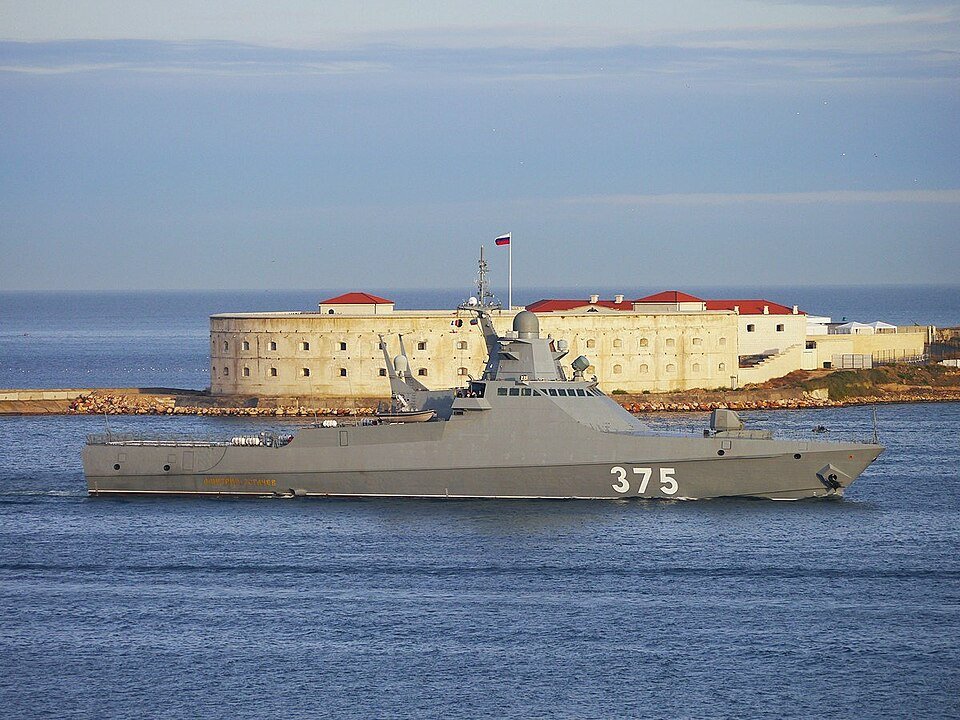

Project 22160 patrol ship

1. Project 22160 patrol ship · Wikipedia revision 1371484601 ↗

   Name

   Infobox · Name

   Project 22160

   Builders

   Infobox · Builders

   Zelenodolsk Shipyard Zaliv Shipyard

   Operators

   Infobox · Operators

   Russian Navy

   Subclasses

   Infobox · Subclasses

   Project 22160

   Built

   Infobox · Built

   2014–present

   In commission

   Infobox · In commission

   2018

   Planned

   Infobox · Planned

   6

   Building

   Infobox · Building

   1

   Completed

   Infobox · Completed

   5

   Active

   Infobox · Active

   4

   Lost

   Infobox · Lost

   1

   Type

   Infobox · Type

   Patrol ship

   Displacement

   Infobox · Displacement

   from 1,300 to 1,700 tons (domestic)

   Length

   Infobox · Length

   94 m (308 ft 5 in)

   Beam

   Infobox · Beam

   14 m (45 ft 11 in)

   Draught

   Infobox · Draught

   3.4 m (11 ft 2 in)

   Installed power

   Infobox · Installed power

   12,000 hp (8,900 kW) (main unit), 400 kW (DGs)

   Propulsion

   Infobox · Propulsion

   CODAG 2 × (Kolomna 16D49) 6,000 hp (4,500 kW) cruise diesels 2 × boost gas turbines (M70FRU or M90FRU) Electric unit (4 diesel generators, 1 emergency DG) CODAG or CODAD

   Speed

   Infobox · Speed

   25 to 30 knots (46 to 56 km/h; 29 to 35 mph), (Domestic CODAD) 27 knots (50 km/h; 31 mph)

   Range

   Infobox · Range

   6,000 nmi (11,000 km; 6,900 mi)

   Endurance

   Infobox · Endurance

   60 days

   Complement

   Infobox · Complement

   80

   Sensors & processing systems

   Infobox · Sensors & processing systems

   Pal-N, Pozitiv-MK radars, Sfera-2 opto-electronic station

   Electronic warfare & decoys

   Infobox · Electronic warfare & decoys

   TK-25

   Armament

   Infobox · Armament

   1 × 76.2 mm AK-176 MA automatic dual-purpose gun Tor-M2KM SAM system (added to active units in 2022) VLS cells with Kalibr-NK system (proposed) 3S90M VLS air defence system (proposed) 3M47 Gibka naval air defence system (offered for export proposals) 2 × 14.5 mm MTPU machine guns DP-65 10-barreled anti-saboteur automatic grenade launcher system DP-64 2-barreled anti-saboteur grenade launcher system A variety of module containers including weapon modules containing 324 mm Paket-NK torpedoes, 3M24 and Kalibr-NK

   Aircraft carried

   Infobox · Aircraft carried

   1 × Ka-27 or Ka-226
