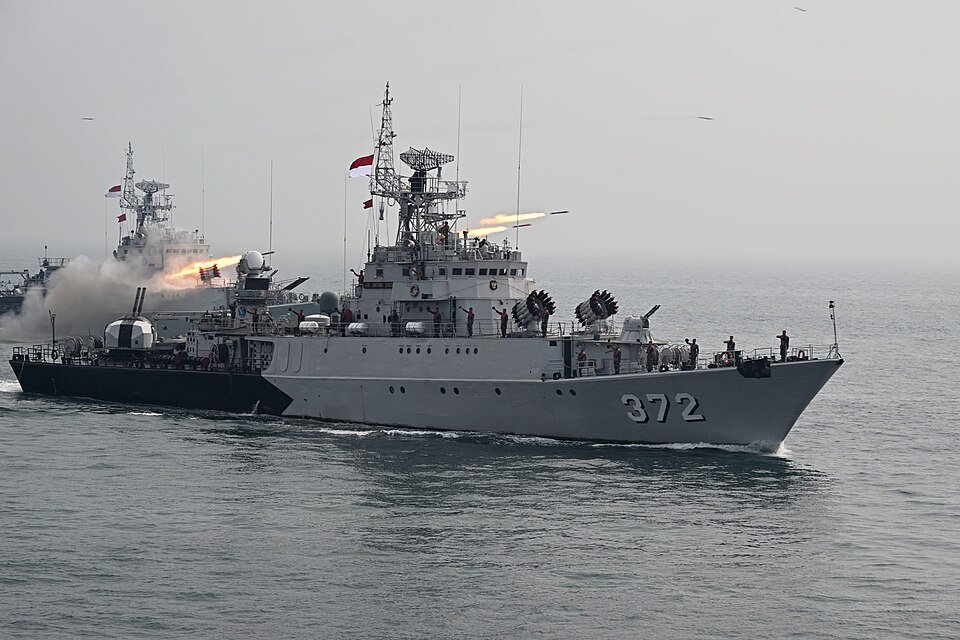

Parchim-class corvette

1. Parchim-class corvette · Wikipedia revision 1363455097 ↗

   Name

   Infobox · Name

   Parchim class

   Builders

   Infobox · Builders

   Peene-Werft , Wolgast

   Operators

   Infobox · Operators

   Volksmarine German Navy Soviet Navy Russian Navy Indonesian Navy

   Built

   Infobox · Built

   1985–1989

   Completed

   Infobox · Completed

   28

   Active

   Infobox · Active

   14 active in Indonesia, 6 active in Russia (Baltic Fleet)

   Retired

   Infobox · Retired

   2 (Indonesian Navy) 6 (Russian Navy)

   Type

   Infobox · Type

   Anti-submarine corvette

   Displacement

   Infobox · Displacement

   800 tons standard, 950 tons full load

   Length

   Infobox · Length

   72 m (236 ft 3 in)

   Beam

   Infobox · Beam

   9.40 m (30 ft 10 in)

   Draught

   Infobox · Draught

   4.60 m (15 ft 1 in)

   Installed power

   Infobox · Installed power

   14,250 hp (10,630 kW)

   Propulsion

   Infobox · Propulsion

   3 shaft M504 diesels

   Speed

   Infobox · Speed

   24.7 knots (45.7 km/h)

   Range

   Infobox · Range

   2,100 nmi (3,900 km) at 14 knots (26 km/h; 16 mph)

   Complement

   Infobox · Complement

   80

   Sensors & processing systems

   Infobox · Sensors & processing systems

   Radar: Positive-E, Spin Trough Bass Tilt Hull Mounted Medium Frequency Sonar

   Armament

   Infobox · Armament

   1x twin 57 mm gun AK-725 1x twin 30 mm gun AK-230 2x SA-N-5 MANPAD positions 2x RBU-6000 anti submarine depth charge rocket launchers 4x 400 mm torpedo tubes 12 depth charges
