Warships1987–present
Frigate

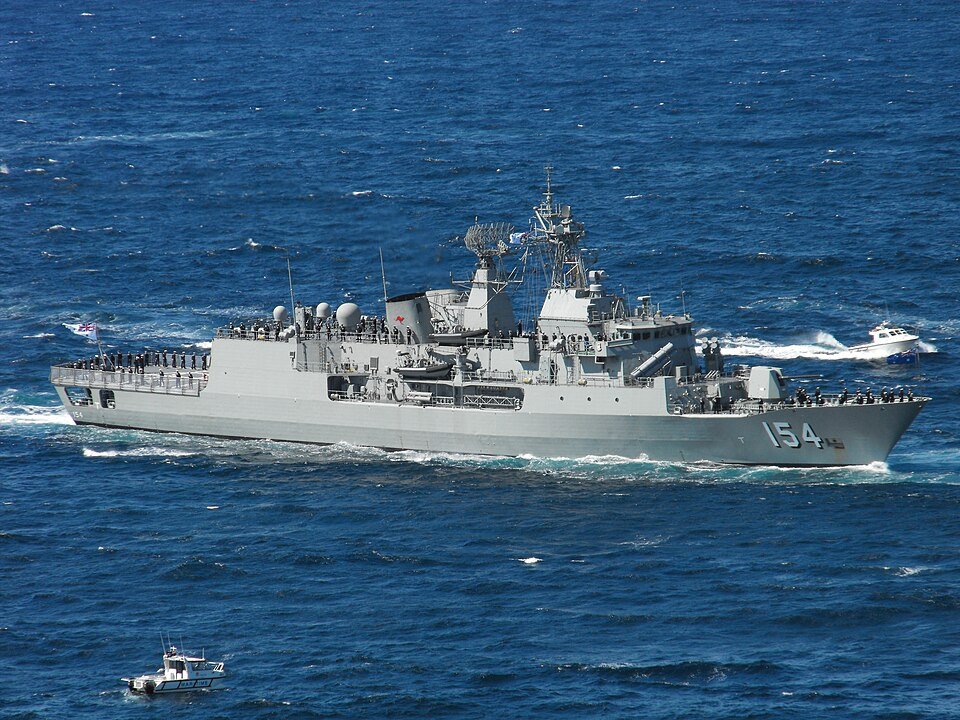

MEKO 200 is a frigate. It was built by Blohm + Voss.
GermanyTechnical data
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 118 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 118 m | Wikipedia contributors | approved |
MEKO 200 MEKO A-200 MEKO A class MEKO D Delta class
Blohm + Voss
See Operators Turkish Naval Forces Royal Australian Navy Hellenic Navy Portuguese Navy Royal New Zealand Navy South African Navy Algerian National Navy Egyptian Navy
1987–present
42
1
34
33
1
Frigate
3,400 tons (full load)
118 m (387 ft)
14.8 m (49 ft)
4.3 m (14 ft)
1 × General Electric LM2500+ gas turbine and 2 × MTU 12V1163 TB83 diesel engines, driving two shafts with controllable pitch propellers in CODOG configuration.
32 knots (59 km/h)
6,000 nautical miles (11,000 km) at 18 knots (33 km/h)
220
Sonars : Thomson Sintra Spherion B Mod 5; hull-mounted; active search and attack; medium frequency. Provision for towed array Air search radar : Raytheon AN/SPS-49(V)8 ANZ (C/D-band) Surface search radar : Saab 9LV 453 TIR (Ericsson Tx/Rx) (G-band) Navigation : Atlas Elektronik 9600 ARPA (I-band)
ESM : Racal modified Sceptre A (radar intercept), Telefunken PST-1720 Telegon 10 (comms intercept) Countermeasures : Decoys: G & D Aircraft SRBOC Mk-36 Mod 1 decoy launchers for SRBOC
Guns : 1 × 5 in/54 (127 mm) Mk-45 Mod 2 naval artillery gun 3 × Phalanx or Sea Zenith CIWS Missiles : Mk-41 Mod 5/Mod 8 VLS for ESSM and Sea Sparrow SAM 2 x 8 × Harpoon or 2 x 8 × RBS-15 SSM Torpedoes : 2 × triple 324 mm Mk-32 Mod 5 tubes Fire control : Saab 9LV 453 (J-band) Combat data systems : Saab 9LV 453 Mk-3 Link 11 Weapons control : Saab 9LV 453 optronic director with Raytheon CW Mk-73 Mod 1
1 × S-70B Seahawk or 1 × SH-2G Super Seasprite
{"datatype": "wikibase-item", "datavalue": {"type": "wikibase-entityid", "value": {"entity-type": "item", "id": "Q183", "numeric-id": 183}}, "hash": "7ace969f65f42c75665109850278ffa517cedf3e", "property": "P495", "snaktype": "value"}
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
MEKO 200 equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
Egypt
GreeceNaval inventory of the source class and listed configurations; excludes orders and construction. Source-year holdings, not immediately deployable strength.
PortugalReported count for Vasco da Gama class MEKO 200 PN. Service scope: Portuguese Navy ships; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): in service: 3. Origin: Germany. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
