Warships1991–present
Multi-purpose frigate
Karel Doorman-class frigate is a multi-purpose frigate. It was built by Damen Schelde Naval Shipbuilding. Reported operators include Royal Netherlands Navy Belgian Navy Chilean Navy Portuguese Navy.

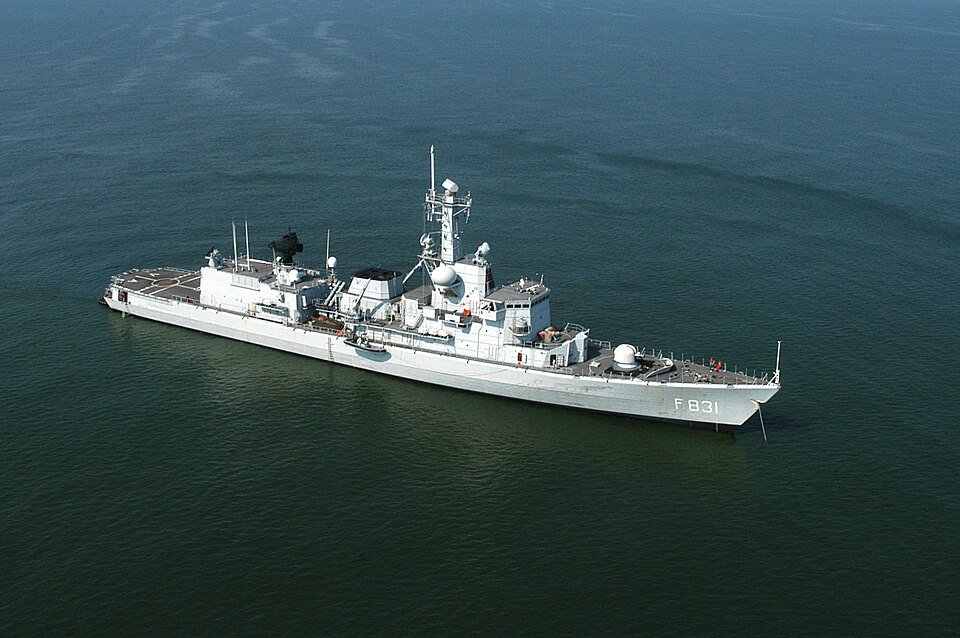

NetherlandsKarel Doorman-class frigate
United States Navy, Photographer’s Mate Airman Jeremy L. Grisham · Public domain · Resized · Public domain · Source ↗ · ModifiedKarel Doorman class
Damen Schelde Naval Shipbuilding
Royal Netherlands Navy Belgian Navy Chilean Navy Portuguese Navy
Netherlands: Kortenaer class / Roofdier class Belgium: Wielingen class Portugal: João Belo class
Netherlands & Belgium: ASWF class
ƒ 445 million per unit
1985–1995
1991–present
8
7
1
Multi-purpose frigate
3,500 tons
401 ft (122 m)
47 ft (14 m)
20 ft (6.1 m)
CODOG-propulsion 2 × Rolls-Royce Spey 1A , 16,700 hp (12,500 kW) gas turbines 2 × Stork-Werkspoor 12SW280- 4,895 hp (3,650 kW) + 4 Stork DRO 218K diesel engines
30 knots (56 km/h; 35 mph)
154
Thales Smart-S Mk.1 long-range 3D surveillance and tracking radar Thales LW08 long-range surveillance radar Thales SeaWatcher 100 active phased array surface detection and tracking radar (NLD and BE ships only) Thales GateKeeper Electro-optical 360° surveillance system (NLD and BE ships only) Thales STIR 1.8 Tracking and Illumination Radar system Thales Scout surface surveillance and tactical navigation radar Thales PHS-36 hull-mounted sonar Thales Anaconda DSBV 61 VLF passive tactical towed array sonar Ultra Electronics Multi-static Low Frequency Active Passive Sonar (NLD ships only)
Thales Vigile APX Radar electronic support measures Mark 36 SRBOC
16 × RIM-7 Sea Sparrow anti-air VLS 8 × Boeing Harpoon anti-ship missile 2–6 × FN MAG 7.62 mm machine gun 2–4 × Browning M2 12.7 mm machine gun 2 × Twin- Mark 46 torpedo tubes 1 × OTO Melara 76 mm gun 1 × Goalkeeper CIWS
Hangar and flight deck
Karel Doorman class M-class 2 Netherlands ASW Frigates Schelde Naval Shipbuilding Van Amstel F831 May 1993 3,300 tonnes Van Speijk inactive due to personnel shortage.
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 29 Sept 2026 | 122 m | Wikipedia contributors | superseded |
| 29 Sept 2026 | 122 m | Wikipedia contributors | superseded |
| 29 Sept 2026 | 122 m | Wikipedia contributors | superseded |
| 29 Sept 2026 | 122 m | Wikipedia contributors | approved |
Karel Doorman-class frigate equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
BelgiumReported count for Karel Doorman class M class. Service scope: Belgian Navy; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): in service: 2. Origin: Netherlands. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
ChileReported count for Karel Doorman class (M class). Service scope: Chilean Navy; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): in service: 2. Origin: unstated. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
NetherlandsNavy exact named equipment holdings of Karel Doorman (1 more in reserve). Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only, not a national or parent-force total or combat-readiness measure. Source role(s): PRINCIPAL SURFACE COMBATANTS / FFGHM. No heading aggregate, carried armament, crew, payload, factory production or future order count inherited. The leading printed inventory count is retained; separately stated extra reserve, nonoperational or repair quantities inside parentheses are not added to it and remain verbatim in the excerpt. Source parentheses retain employment, lease, reporting designation, alternate model, or included-subset scopes exactly. Own fetched primary and alternate/model identity declarations are retained. Numbers inside an included subset are part of the printed count and are never added again; no sibling or parent specification is copied.
PortugalReported count for Bartolomeu Dias class M-class. Service scope: Portuguese Navy ships; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): in service: 2. Origin: Netherlands. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Royal Netherlands Navy Belgian Navy Chilean Navy Portuguese Navy
Equipment reference ↗Reported count for Karel Doorman class M-class. Service scope: Navy combat fleet; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): in service: 2. Origin: Netherlands. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
