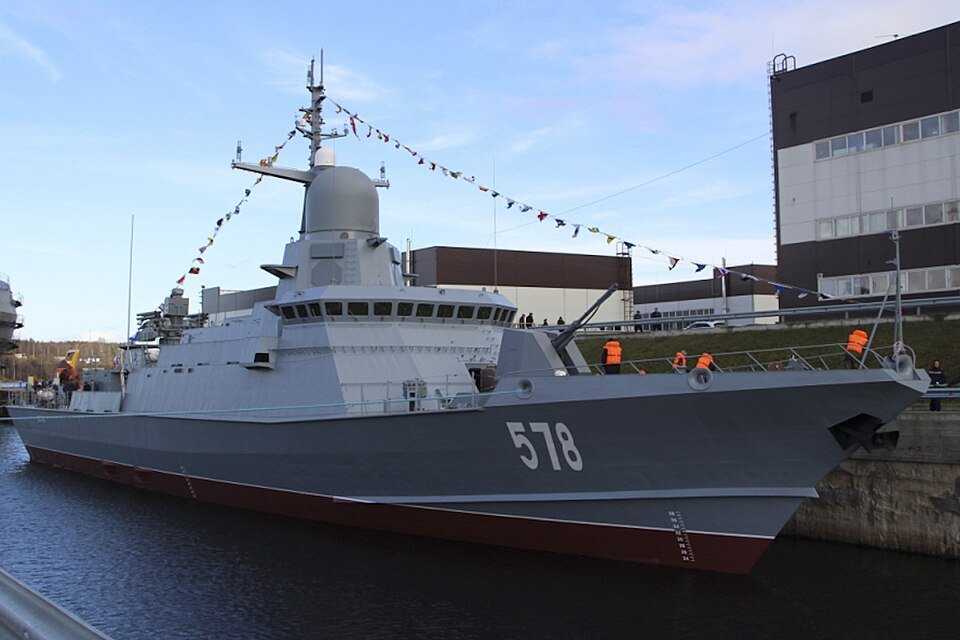

Karakurt-class corvette

1. Karakurt-class corvette · Wikipedia revision 1373616563 ↗

   Name

   Infobox · Name

   Karakurt class

   Builders

   Infobox · Builders

   Pella Shipyard , Saint Petersburg More Shipyard , Feodosia Zaliv Shipbuilding yard , Kerch Zelenodolsk Shipyard , Zelenodolsk Amur Shipyard , Komsomolsk-on-Amur Vostochnaya Verf , Vladivostok

   Operators

   Infobox · Operators

   Russian Navy

   Preceded by

   Infobox · Preceded by

   Buyan class Buyan-M class

   Cost

   Infobox · Cost

   approx. RUB2 billion (2017) (US$34.3 million)

   Built

   Infobox · Built

   2015–present

   In service

   Infobox · In service

   2018–present

   Planned

   Infobox · Planned

   16

   Building

   Infobox · Building

   2

   Completed

   Infobox · Completed

   13

   Active

   Infobox · Active

   7 (+3 likely on trials, one - Askold - heavily damaged, undergoing repairs )

   Lost

   Infobox · Lost

   1 (Tsiklon)

   Type

   Infobox · Type

   Guided-missile corvette

   Displacement

   Infobox · Displacement

   800 tons (860 tons after first two vessels)

   Length

   Infobox · Length

   67 m (219 ft 10 in)

   Beam

   Infobox · Beam

   11 m (36 ft 1 in)

   Draft

   Infobox · Draft

   3.3 m (10 ft 10 in)

   Propulsion

   Infobox · Propulsion

   CODAD : 3 Zvezda M-507D1 112 c or 16D49 16D500 12V ZE1600KZ turbodiesel engine with 3 diesel generators DGAS-315

   Speed

   Infobox · Speed

   30 knots (56 km/h; 35 mph)

   Range

   Infobox · Range

   2,500 nmi (4,600 km; 2,900 mi)

   Endurance

   Infobox · Endurance

   15 days

   Complement

   Infobox · Complement

   50–70

   Sensors & processing systems

   Infobox · Sensors & processing systems

   Mineral-M radar Pozitiv-M 1.2 3D radar AESA type radar Pal-N-4 5P-10-03 Laska Fire-control radar (for naval gun and AK-630 CIWS ) SP-520 Lanzor KT-216 PK-10 MP-405-1 Satellite communication station Tsentavr-NM

   Armament

   Infobox · Armament

   1 × 76.2 mm 59- caliber AK-176 MA or 100 mm A-190 automatic dual-purpose guns 1 × Pantsir-M CIWS with Hermes-K missiles or 1 × 3M89 Palash/ Palma CIWS with Sosna-R missiles (4+4 SAM in total 8 plus under reload units) or 2 × AK-630M-2 CIWS and Tor missile system (on first 2 vessels) 2 × 4 UKSK VLS cells for Kalibr or Oniks anti-ship cruise missiles 2 × 12.7x108 mm Kord machine gun

   Aircraft carried

   Infobox · Aircraft carried

   Launcher for Orlan-10 UAV
