HelicoptersIn serviceProfile in progress
Medium utility helicopter

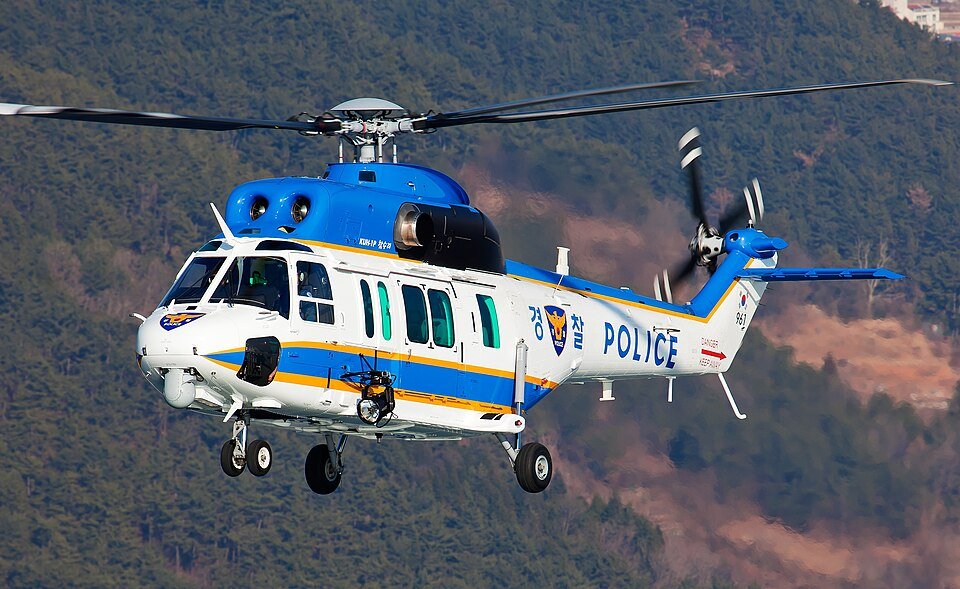

KAI KUH-1 Surion is a medium utility helicopter originating in South Korea. It was built by Korea Aerospace Industries. Reported operators include Republic of Korea Army National Police Agency (South Korea).
South KoreaNo check recorded yet.
ko.wikipedia.org ↗ · Field absent
Checked 29 Sept 2026No mapped field recovered. Stored full text retained for further extraction; this is not a claim that unstructured prose has been manually exhausted.
Mapped labelled specifications
KUH-1 수리온 - 위키백과, 우리 모두의 백과사전 본문으로 이동 주 메뉴 주 메뉴 사이드바로 이동 숨기기 둘러보기 대문 최근 바뀜 요즘 화제 임의 문서로 사용자 모임 사랑방 사용자 모임 관리 요청 편집 안내 소개 도움말 정책과 지침 질문방 검색 검색 외관 기부 계정 만들기 로그인 개인 도구 기부 계정 만들기 로그인 목차 사이드바로 이동 숨기기 처음 위치
www.wikidata.org ↗ · Field absent
Checked 29 Sept 2026No mapped field recovered. Stored full text retained for further extraction; this is not a claim that unstructured prose has been manually exhausted.
Mapped labelled specifications
South Korean multi-role utility helicopter KAI KUH-1 Surion Surion helicopter KUH-1 Surion edit Language Label Description Also known as default for all languages No label defined – English Korea Aero
www.koreaaero.com ↗ · Page not found
Checked 29 Sept 2026No exact name/designation URL in retained manufacturer sitemap
Manufacturer robots/sitemap lookup
<!DOCTYPE html> <html lang="ko"> <head><meta charset="UTF-8" /><meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1" /><!-- Framework Default Script --> <script type='text/javascript' src='/KO/WebResource.axd?d=gCpLJQiOFBKR10-txZG2jHAVd5WyYJ7OxX4xcBRTDPyltF2Xq6lf9hMfpeYdysFZrdouQZyv
www.koreaaero.com ↗ · Page not found
Checked 29 Sept 2026No exact name/designation URL in retained manufacturer sitemap
Manufacturer robots/sitemap lookup
<!DOCTYPE html> <html lang="ko"> <head><meta charset="UTF-8" /><meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1" /><!-- Framework Default Script --> <script type='text/javascript' src='/KO/WebResource.axd?d=gCpLJQiOFBKR10-txZG2jHAVd5WyYJ7OxX4xcBRTDPyltF2Xq6lf9hMfpeYdysFZrdouQZyv
www.koreaaero.com ↗ · Page not found
Checked 29 Sept 2026No exact name/designation URL in retained manufacturer sitemap
Manufacturer robots/sitemap lookup
<!DOCTYPE html> <html lang="ko"> <head><meta charset="UTF-8" /><meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1" /><!-- Framework Default Script --> <script type='text/javascript' src='/KO/WebResource.axd?d=gCpLJQiOFBKR10-txZG2jHAVd5WyYJ7OxX4xcBRTDPyltF2Xq6lf9hMfpeYdysFZrdouQZyv
www.koreaaero.com ↗ · Page does not identify this equipment
Checked 30 Sept 2026['Equipment absent from title and first heading.']
Title and heading identity / source type
KAI KOREA AEROSPACE INDUSTRIES, LTD. TOP logo KOR ENG Company About KAI History Corporate Philosophy CEO Message Core Competence Development Capability Production Capability Integrated Logistics Support CI Corporate Identity Location Business Aircraft Fixed Wing - FA-50 ∙ KT-1 ∙ KC-100 ∙ KF-21 Rotar
No check recorded yet.
No check recorded yet.
Medium utility helicopter
Transport
South Korea
Korea Aerospace Industries
Agency for Defense Development (mission equipment package) Korea Aerospace Industries (with technical assistance from Eurocopter )
In service
Republic of Korea Army National Police Agency (South Korea)
218+ (including derivatives)
22 May 2013
10 March 2010
2013–present
Eurocopter AS332 Super Puma
2 pilots
13 passengers (including 9 troops - KUH-1) - up to 18 passengers with the KUH-1E variant
19 m (62 ft 4 in) including rotors
3.3 m (10 ft 10 in) (fuselage)
5 m (16 ft 5 in) with tail rotor
8,709 kg (19,200 lb)
2 × General Electric / Hanwha Aerospace T700-701K turboshaft , 1,383 kW (1,855 shp) each with dual-channel FADEC
270–283 km/h (168–176 mph, 146–153 kn)
828 km (514 mi, 447 nmi) with auxiliary fuel tank
4,595 m (15,075 ft)
A couple of 7.62mm pintle-mounted machine gun pods Removable pylons or hardpoints for heavier gun pods , air-launched rockets , and/or anti-tank guided missiles
2,700 kg (6,000 lb) of external load
2,717 m (8,915 ft)
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 19 m | Wikipedia contributors | superseded |
KAI KUH-1 Surion equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
South KoreaArmy exact named equipment holdings: KUH-1 Surion. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: HELICOPTERS / Medium. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
Coast Guard exact named equipment holdings: KUH-1 Surion. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: HELICOPTERS / Medium. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
Republic of Korea Army National Police Agency (South Korea)
