Armoured vehicles2024–present
Infantry mobility vehicle
Iveco MTV is a infantry mobility vehicle originating in Italy. It was built by Iveco Defence Vehicles. Reported operators include Netherlands Armed Forces.
ItalyTechnical data
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 29 Sept 2026 | 5.9 m | Wikipedia contributors | superseded |
Infantry mobility vehicle
Italy
2024–present
Netherlands Armed Forces
Iveco Defence Vehicles
200 (as of October 2024, with a total of 1,185 on order)
See variants
± 12.8 t (28,000 lb) (kerb)
5,900 mm (230 in)
2,430 mm (96 in) (without mirrors)
2,760 mm (109 in) (hard top)
Iveco variant: 1 driver + up to 7 pax Hardtop: 2 crew + 2 pax Softtop: 2 crew + 2 pax Utility: 2 Ambulance: 2 crew + 2 injured Military police: 2 + 6
Hardtop: FN deFNder RCWS equipped with an FN MAG ( 7.62×51mm NATO ) Softtop variant, manned ring mount with optionally: M2 Browning ( 12.7×99mm NATO HMG ) H&K GMG ( 40×53 mm HV , AGL ) Spike LR / LR2 ( ATGM )
Softtop variant: lateral swing mount for the softtop variant, with a FN MAG ( 7.62×51mm NATO , GPMG )
FPT NEF N67 280 (6.7 litres, inline-six , turbo-diesel engine , Euro III) Power: 276 hp (206 kW) Torque: 1,000 N⋅m (740 ft⋅lb))
23 hp/t (17 kW/t)
Payload: > 2.0 t (4,400 lb) Towing capacity: 3.5 t (7,700 lb)
Automatic High-low transfer case Permanent 4×4 wheel-drive 3 fully lockable differentials
350 mm (14 in) (vertical obstacle)
600 km (370 mi)
90 km/h (56 mph)

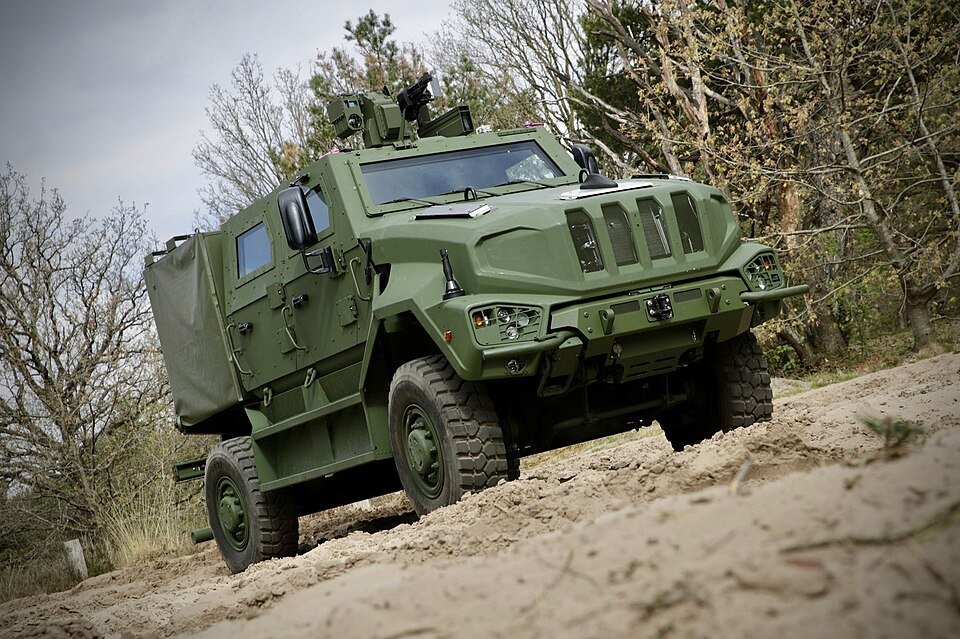

The Iveco MTV (Medium Tactical Vehicle), military designation Manticore , is an infantry mobility vehicle designed and manufactured by Iveco Defence Vehicles for the Netherlands Armed Forces .
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
Iveco MTV equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
NetherlandsReported count for Iveco MTV 12kN Manticore. Service scope: Royal Netherlands Marine Corps; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): quantity: 108. Origin: Italy Netherlands. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
