Patrol & mine warfare vesselsActive

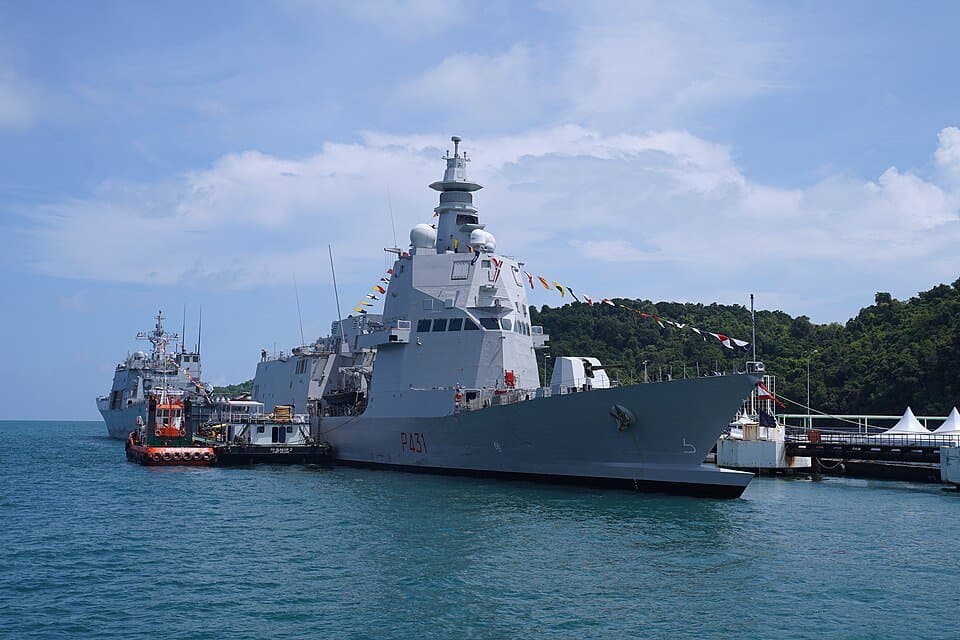

Italian offshore patrol vessel Francesco Morosini is documented in the equipment reference catalogue. It was built by Fincantieri , Muggiano.
ItalyItalian offshore patrol vessel Francesco Morosini
Z3144228 · CC BY-SA 4.0 · Resized · CC BY-SA 4.0 · Source ↗ · ModifiedFrancesco Morosini
Francesco Morosini
2014
Fincantieri , Muggiano
€3.9 billion for 7 ships (unit cost depending on configuration)
16 February 2018
22 May 2020
22 October 2022
Pennant number : P431
Active
Thaon di Revel -class offshore patrol vessel
light displacement: 4,880 t (4,800 long tons) full displacement: 5,830 t (5,740 long tons)
143 m (469 ft 2 in) LOA 133 m (436 ft 4 in) LPP
16.5 m (54 ft 2 in)
10.5 m (34 ft 5 in)
5 m (16 ft 5 in)
CODAG CC scheme 1 × TAG General Electric/Avio LM2500+G4 , 32,000 kW (43,000 hp) 2 × diesel engines MTU 20V 8000 M91L, 10,000 kW (13,000 hp) each 4 x diesel engine generators MAN GenSets 12V175D-MEM 1,640 kW (2,200 hp) 2 × electric engines , 1,350 kW (1,810 hp) each (reversible) 2 x diesel engine emergency generators 1 × thruster , 550 kW (740 hp) 2 × shafts , driving controllable pitch propellers
27 knots (50 km/h; 31 mph) only on TAG 25 knots (46 km/h; 29 mph) only on 2 main diesel engines 18 knots (33 km/h; 21 mph) only on 1 main diesel engine 10 knots (19 km/h; 12 mph) on electric-diesel engine
5,000 nmi (9,300 km; 5,800 mi) at 15 knots (28 km/h; 17 mph)
173 beds (+ 30 on modular rear zone)
PPA Full 120 crew;PPA Light+ + 90;PPA Light 90;( add 24 crew for two helos on board and other 89/59 beds for optional boarding team, marines team, maritime command staffs, etc.)
Leonardo-Finmeccanica naval cockpit Leonardo-Finmeccanica SADOC Mk4 CMS (Command Management System) with 28 MFC (20 on PPA Light version) Leonardo-Finmeccanica SAAM-ESD, AAW system 1 x Leonardo-Finmeccanica LPI air and ground surveillance radar (SPS-732) 2 x Leonardo-Finmeccanica navigation radar, X/Ka dual band radar 1 x Leonardo-Finmeccanica static IRST (InfraRed Search and Track) 1 x Leonardo-Finmeccanica next generation IFF sensors (Identification Friend & Foe) with circular antenna 1 x Leonardo-Finmeccanica Diver Detection Sonar 1 x Leonardo-Finmeccanica Fire Control System, ADT NG NA-30S Mk2 1 x dual-band SATCOM antenna 1 x tri-band SATCOM antenna 1 x SAT-TV antenna 1 x Leonardo-Finmeccanica AESA 3D Dual Band Radar, only X-band radar
Elettronica-ELT Spa ZEUS System RESM (Radar Electronic Support Counter-Measure) RECM (Radar Electronic Counter-Measure) CESM (Communication ESM) 2 x Long Range Acoustic Device (Long Range Acoustic System) SITEP MS-424 FFBNW 2 x Oto Melara ODLS-20 decoy launchers
1 × Oto Melara 127 mm/64 Vulcano with Automated Ammunition Handling System (AAHS) 1 × Oto Melara 76 mm/62 Strales Sovraponte anti-aircraft gun 2 × Oto Melara Oerlikon KBA B06 , remote mounting
2 × SH90 1 × AW101
- double hangar - flight deck 25.5 m × 16.5 m (83 ft 8 in × 54 ft 2 in)
History Italy Name Francesco Morosini Namesake Francesco Morosini Ordered 2014 Builder Fincantieri , Muggiano Cost €3.9 billion for 7 ships (unit cost depending on configuration) Laid down 16 February 2018 Launched 22 May 2020 Commissioned 22 October 2022 Identification Pennant number : P431 Status Active
{"datatype": "wikibase-item", "datavalue": {"type": "wikibase-entityid", "value": {"entity-type": "item", "id": "Q38", "numeric-id": 38}}, "hash": "62faf00998325aad6b60b99fca1465baf1adb5a4", "property": "P495", "snaktype": "value"}
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 143 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 143 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 143 m | Wikipedia contributors | approved |
| 28 Sept 2026 | 143 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 143 m | Wikipedia contributors | superseded |
Country inventory links have not yet been documented for this equipment.
