Combat aircraftIn serviceProfile in progress
The F-15EX Eagle II combines the Eagle airframe’s external stores capacity with digital flight controls, an electronically scanned radar and modern electronic warfare. It is a distinct production configuration; earlier F-15C/D and F-15E fleets should not be counted as F-15EX aircraft.

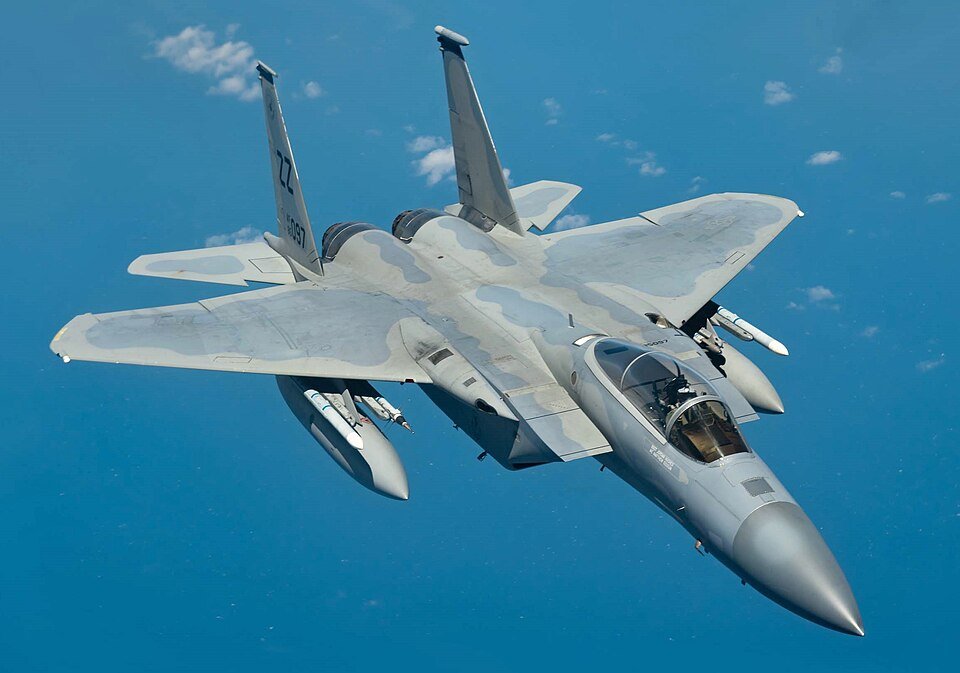

United StatesMcDonnell Douglas F-15 Eagle
Airman 1st Class Matthew Seefeldt · Public domain · Resized · Public domain · Source ↗ · ModifiedAir superiority fighter
United States
McDonnell Douglas Boeing Defense, Space & Security
In service
United States Air Force Japan Air Self-Defense Force Royal Saudi Air Force Israeli Air Force
F-15A/B/C/D/J/DJ: 1,198
1972–1997
9 January 1976 ( 1976-01-09 )
27 July 1972 ( 1972-07-27 )
Mitsubishi F-15J McDonnell Douglas F-15 STOL/MTD
McDonnell Douglas F-15E Strike Eagle
1
63 ft 9 in (19.43 m)
42 ft 10 in (13.06 m)
18 ft 6 in (5.64 m)
608 sq ft (56.5 m 2 )
29,000 lb (13,154 kg)
44,500 lb (20,185 kg)
68,000 lb (30,844 kg)
13,455 lb (6,103 kg) internal, or 25,350 lb (11,500 kg) with 3× 600 U.S. gal external tanks
2 × Pratt & Whitney F100 -PW-220 afterburning turbofans, 14,590 lbf (64.9 kN) thrust each dry, 23,770 lbf (105.7 kN) with afterburner
Mach 2.5, 1,650 mph (1,434 kn; 2,655 km/h) at altitude Mach 1.2, 800 kn (921 mph; 1,482 km/h) at sea level
496 kn (571 mph, 919 km/h)
2,144 nmi (2,467 mi, 3,971 km) with three external fuel tanks
586 nmi (674 mi, 1,085 km) counter-air mission with one external fuel tank 470 nmi (540 mi; 870 km) area intercept with 4× AIM-7, internal fuel 1,061 nmi (1,221 mi; 1,965 km) for interdiction mission with three external fuel tanks
3,000 nmi (3,500 mi, 5,600 km) with conformal fuel tanks and three external fuel tanks
65,000 ft (20,000 m)
67,050 ft/min (340.6 m/s) maximum (with 3 pylons)
1× 20 mm (0.787 in) M61A1 Vulcan 6-barrel rotary cannon , 940 rounds
Total 9: two under-wing (each with additional two missile launch rails), four under-fuselage (for semi-recessed carriage of AIM-7 or AIM-120) and a single centerline pylon station, optional fuselage pylons (which may include conformal fuel tanks ) with a capacity of 16,000 lb (7,300 kg), with provisions to carry combinations of: Missiles: 4× AIM-7 Sparrow and 4× AIM-9 Sidewinder or 6× AIM-120 AMRAAM and 2× AIM-9 Sidewinder or 8× AIM-120 AMRAAM Other: up to 3 × 600 US gallons (2,300 L) external drop tanks for ferry flight or extended range/loitering time. MXU-648 Cargo/Travel Pod – to carry personal belongings, and small pieces of maintenance equipment. ADM-160 MALD - Family of decoy missiles which can be equipped with electronic countermeasures
root: NACA 64A006.6 ; tip: NACA 64A203
+9
73.1 lb/sq ft (357 kg/m 2 )
1.07 (1.26 with loaded weight and 50% internal fuel)
4× AIM-7 Sparrow and 4× AIM-9 Sidewinder or 6× AIM-120 AMRAAM and 2× AIM-9 Sidewinder or 8× AIM-120 AMRAAM
up to 3 × 600 US gallons (2,300 L) external drop tanks for ferry flight or extended range/loitering time. MXU-648 Cargo/Travel Pod – to carry personal belongings, and small pieces of maintenance equipment. ADM-160 MALD - Family of decoy missiles which can be equipped with electronic countermeasures
Hughes (now Raytheon ) AN/APG-63 or AN/APG-70 or Raytheon AN/APG-63(V)1 or Raytheon AN/APG-63(V)2 Active Electronically Scanned Array (AESA) or Raytheon AN/APG-63(V)3 Active Electronically Scanned Array (AESA)
Northrop Grumman Electronic Systems AN/ALQ-131 electronic countermeasures pod Magnavox AN/ALQ-128 Electronic Warfare Warning Set (EWWS) – part of Tactical Electronic Warfare Systems (TEWS) Loral AN/ALR-56 Radar warning receivers (RWR) – part of TEWS Northrop Grumman Electronic Systems AN/ALQ-135 Internal Countermeasures System (ICS) – part of TEWS Marconi (now Tracor ) AN/ALE-45 Chaff / Flare dispenser system – part of TEWS
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
The system in detail
The F-15EX Eagle II combines the Eagle airframe’s external stores capacity with digital flight controls, an electronically scanned radar and modern electronic warfare. It is a distinct production configuration; earlier F-15C/D and F-15E fleets should not be counted as F-15EX aircraft.
The F-15EX Eagle II technical profile documents the configuration, subsystems, development and source limitations. Open the variant below for the complete research and its original references.
Visual reference

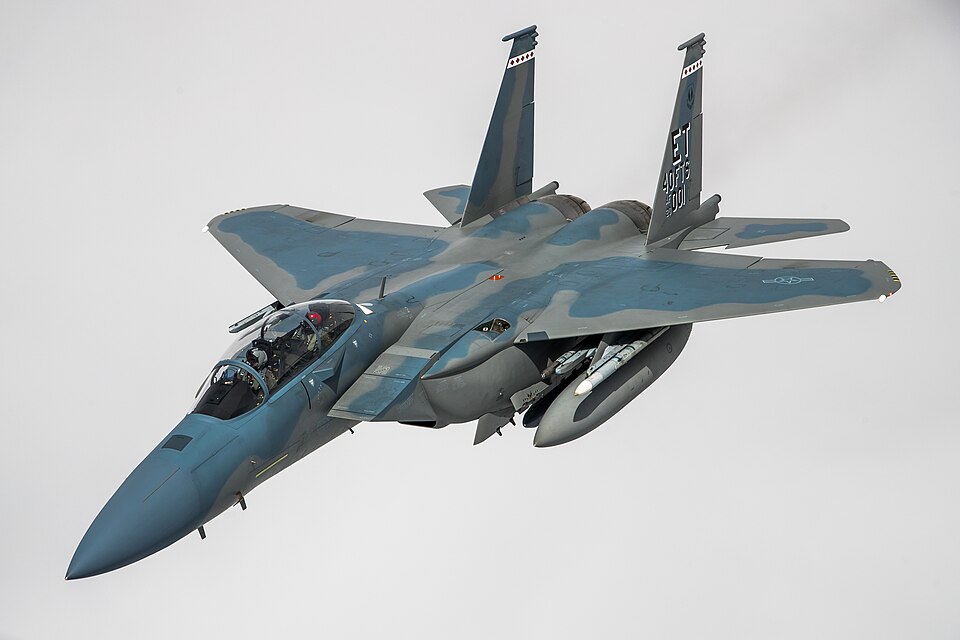

F-15EX Eagle II during a US Air Force test flight.
Ethan Wagner / Wikimedia Commons · Public domain · Source ↗ · ModifiedF-15 Eagle equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
IsraelAir Force exact named equipment holdings: F-15A Eagle (Baz); F-15B Eagle (Baz); F-15C Eagle (Baz); F-15D Eagle (Baz). Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: AIRCRAFT / FGA. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
Reported count for F-15 Eagle · F-15B/D. Service scope: Israeli Air Force; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): in service: 21. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. Dates are the count-cell citations' stated source period (2025), not the article revision. 2025 cited publication year. Edition or publication years do not claim an exact inventory census day.
JapanReported count for F-15 Eagle · F-15J / F-15 Eagle · F-15DJ. Service scope: Japan Air Self-Defense Force; does not replace a national total. 2 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): in service: 155 / in service: 44. Origin: United States / Japan. The listed variants/roles are the scope, not an immediately deployable count. Dates are the count-cell citations' stated source period (2026), not the article revision. 2026 cited source edition. Edition or publication years do not claim an exact inventory census day.
Saudi ArabiaAir Force exact named equipment holdings: F-15C/D Eagle. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: AIRCRAFT / FTR. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
United StatesAir National Guard 104,850 reservists exact named equipment holdings: F-15C Eagle; F-15D Eagle. Active, operational-reserve and training units excluding equipment in store; November 2025 IISS assessment. Named service only; no parent-force or national total inferred. Source role: AIRCRAFT / FTR. Original estimates, ranges, reporting names, reserve, lease and employment scopes retained; nested included counts are not added. Missile-system quantities mean launchers, not rounds. No readiness, crew, carried weapon, payload, factory-production or future order count inherited.
United States Air Force Japan Air Self-Defense Force Royal Saudi Air Force Israeli Air Force
Equipment reference ↗Reported count for F-15EX Eagle II. Service scope: Air Force; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): inventory: 8. Origin: USA. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
