Armoured vehicles2017-Present
Wheeled armoured personnel carrier

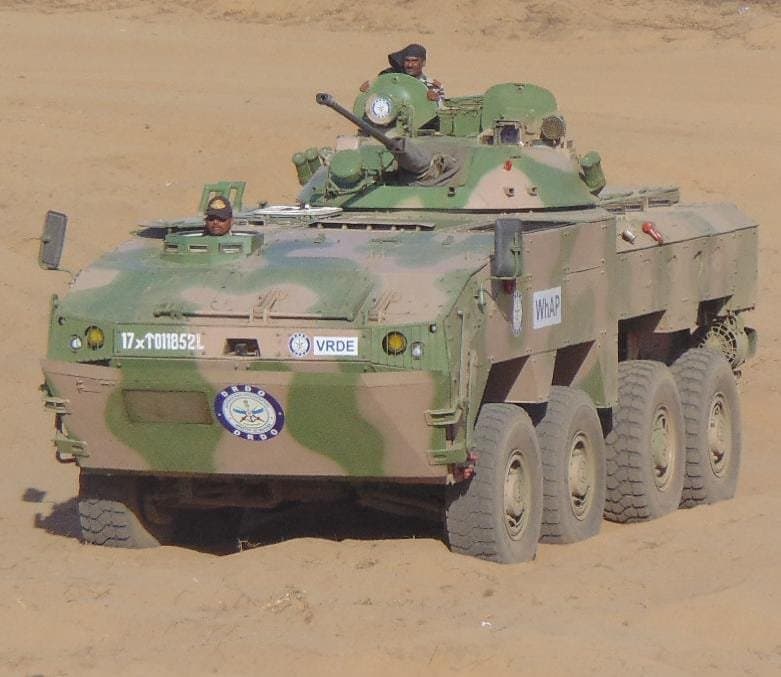

DRDO WhAP is a wheeled armoured personnel carrier originating in India. It was built by Tata Advanced Systems Mahindra Defence Systems.
IndiaTrue scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 7.85 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 7.85 m | Wikipedia contributors | approved |
| 28 Sept 2026 | 7.85 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 7.85 m | Wikipedia contributors | superseded |
Wheeled armoured personnel carrier
India
2017-Present
Indian Army Central Reserve Police Force Royal Moroccan Army
Combat Vehicle Research and Development Establishment
Tata Advanced Systems Mahindra Defence Systems
2014-Present
50
24 tonnes (26 tons)
7.85 metres (25.8 ft)
3.00 metres (9.84 ft)
2.3 metres (7 ft 7 in)
10-12
Applique and composites along with welded steel Modular armour for mine and ballistic protection of up to level III and IV, respectively ( STANAG 4569 )
30mm autocannon turret (WhAP variant) (or) 7.62 mm medium machine gun RCWS (IPMV variant)
WhAP variant 7.62 mm coaxial machine gun Twin anti-tank guided missile launcher or an automatic grenade launcher
Cummins ISXe 600 diesel engine (or) CVRDE - Ashok Leyland 600hp engine (future) 600 hp @ 1800-2000RPM / 2508nm torque @ 1100-1600RPM
24 hp/ton
Allison 4500SP automatic transmission CVRDE - L&T Automatic Transmission (future)
Live axle with independent hydropneumatic suspension
0.45 meters
500km (Onroad) 250km (Offroad)
100 km/h (62 mph) on road 10 km/h (6.2 mph) in water
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
DRDO WhAP equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
Indian Army Central Reserve Police Force Royal Moroccan Army
