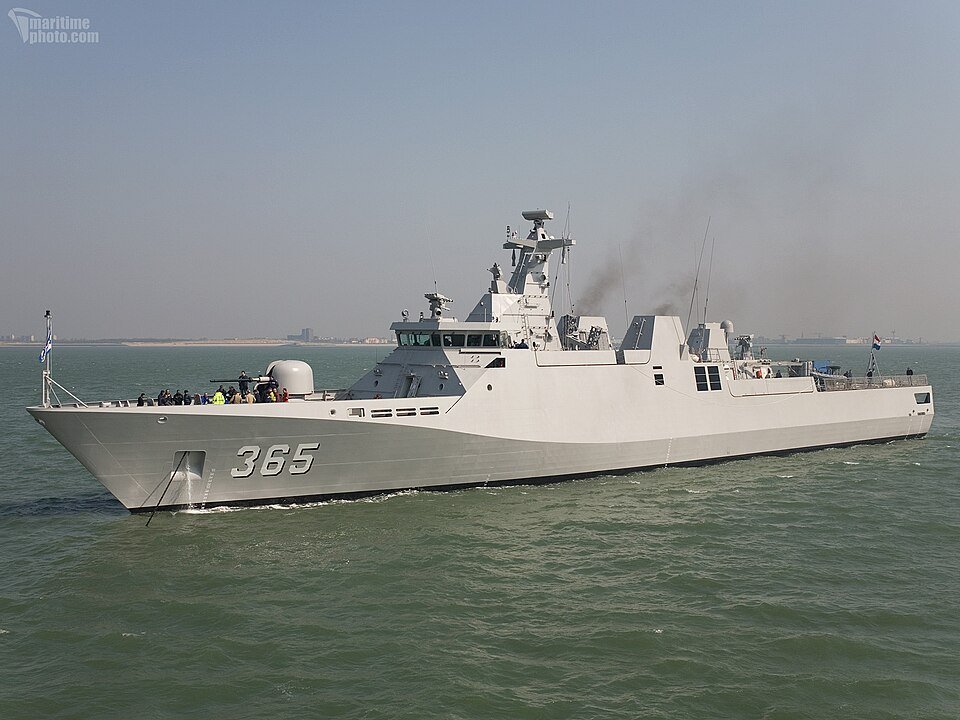

Diponegoro-class corvette

1. Diponegoro-class corvette · Wikipedia revision 1337573779 ↗

   Name

   Infobox · Name

   Diponegoro class

   Builders

   Infobox · Builders

   Damen Schelde Naval Shipbuilding

   Operators

   Infobox · Operators

   Indonesian Navy

   Preceded by

   Infobox · Preceded by

   Fatahillah class Dewantara class

   Succeeded by

   Infobox · Succeeded by

   Bung Tomo class

   Cost

   Infobox · Cost

   $222 million

   Built

   Infobox · Built

   2005–2008

   In commission

   Infobox · In commission

   2007–present

   Planned

   Infobox · Planned

   8

   Completed

   Infobox · Completed

   4

   Active

   Infobox · Active

   4

   Type

   Infobox · Type

   Multi-purpose corvette / frigate

   Displacement

   Infobox · Displacement

   1,692 tons

   Length

   Infobox · Length

   90.71 m (297 ft 7 in)

   Beam

   Infobox · Beam

   13.02 m (42 ft 9 in)

   Draft

   Infobox · Draft

   3.60 m (11 ft 10 in)

   Propulsion

   Infobox · Propulsion

   2 × SEMT Pielstick 20PA6B STC rated at 8910 kW each driving a lightweight Geislinger coupling combination BE 72/20/125N + BF 110/50/2H (steel – composite coupling combination) 4 × Caterpillar 3406C TA generator rated at 350 kW each 1 × Caterpillar 3304B emergency generator rated at 105 kW 2 × shaft with Rolls-Royce Kamewa 5 bladed controllable pitch propeller 2 × Renk ASL94 single step reduction gear with passive roll stabilization

   Speed

   Infobox · Speed

   Maximum : 28 knots (52 km/h; 32 mph) Cruising : 18 knots (33 km/h; 21 mph) Economy : 14 knots (26 km/h; 16 mph)

   Range

   Infobox · Range

   Cruising speed at 18 kn (33 km/h; 21 mph): 3,600 nmi (6,700 km; 4,100 mi) Economy speed at 14 kn (26 km/h; 16 mph): 4,800 nmi (8,900 km; 5,500 mi)

   Complement

   Infobox · Complement

   20, up to 80

   Sensors & processing systems

   Infobox · Sensors & processing systems

   Combat System : Thales Group TACTICOS with 4 x Multifunction Operator Console Mk 3 2H Search radar : MW08 3D multibeam surveillance radar IFF : Thales TSB 2525 Mk XA (integrated with MW08) Navigation radar : Sperry Marine BridgeMasterE ARPA radar Fire control radar : LIROD Mk 2 tracking radar Data Link : LINK Y Mk 2 datalink system Sonar : Thales UMS 4132 Kingklip medium frequency active/passive ASW hull mounted sonar Internal Communications : Thales Communication's F ibre O ptical CO mmunications N etwork (FOCON) or EID ' s ICCS where on-board users have access to internal and/or external communication channels and integrated remote control of communications equipment Satellite Comms : Nera F series Navigation System : Raytheon Anschutz integrated navigation Integrated Platform Management System : Imtech UniMACs 3000 Integrated Bridge System

   Electronic warfare & decoys

   Infobox · Electronic warfare & decoys

   ESM : Thales VIGILE 100 ECM : Racal Scorpion 2L Decoy : TERMA SKWS, DLT-12T 130mm decoy launchers, port, starboard

   Armament

   Infobox · Armament

   Guns : 1 × Oto Melara 76 mm gun (A position) 2 × 20 mm Denel GI-2 gun (B position) Missiles : 2 × quad (8) Mistral TETRAL Anti-air missile, forward & aft 4 × Exocet MM40 Block III anti-surface vessel missile Torpedoes : 2 × triple launchers for WASS A244-S mod.3

   Aviation facilities

   Infobox · Aviation facilities

   Landing pad, optional hangar

2. Wikidata contributors ↗

   Country of origin

   Wikidata P495 · Q12060440$0B392E4D-C3EF-4409-9B64-FE31ABCE9722

   Netherlands 0 references
