Canberra-class landing helicopter dock

1. Canberra-class landing helicopter dock · Wikipedia revision 1362838253 ↗

   Builders

   Infobox · Builders

   Navantia , Ferrol , Spain and BAE Systems Australia , Victoria

   Operators

   Infobox · Operators

   Royal Australian Navy

   Preceded by

   Infobox · Preceded by

   HMAS Tobruk , Kanimbla class

   Cost

   Infobox · Cost

   A$ 3.1 billion (2007) for two units A$ 1.55 billion (2007) per unit

   Built

   Infobox · Built

   2009–2015

   In commission

   Infobox · In commission

   2014–present

   Planned

   Infobox · Planned

   2

   Completed

   Infobox · Completed

   2

   Active

   Infobox · Active

   2

   Type

   Infobox · Type

   Landing helicopter dock

   Displacement

   Infobox · Displacement

   27,500 t (27,100 long tons ) at full load

   Length

   Infobox · Length

   230.82 m (757 ft 3 in)

   Beam

   Infobox · Beam

   32.0 m (105 ft 0 in)

   Draft

   Infobox · Draft

   7.08 m (23 ft 3 in)

   Installed power

   Infobox · Installed power

   1 × GE LM2500 gas turbine 19.1 MW (25,600 shp ) 2 × Navantia MAN 16V32/40 diesel generators , 7.4 MW (9,900 shp ) each

   Propulsion

   Infobox · Propulsion

   Integrated Electric Propulsion 2 × Siemens Navantia azimuth thrusters , 11 MW (15,000 shp ) each

   Speed

   Infobox · Speed

   Over 20 knots (37 km/h; 23 mph) maximum 19 knots (35 km/h; 22 mph) full-load sustained 15 knots (28 km/h; 17 mph) economical

   Range

   Infobox · Range

   9,000 nmi (17,000 km; 10,000 mi) at 15 knots (28 km/h; 17 mph)

   Boats & landing craft carried

   Infobox · Boats & landing craft carried

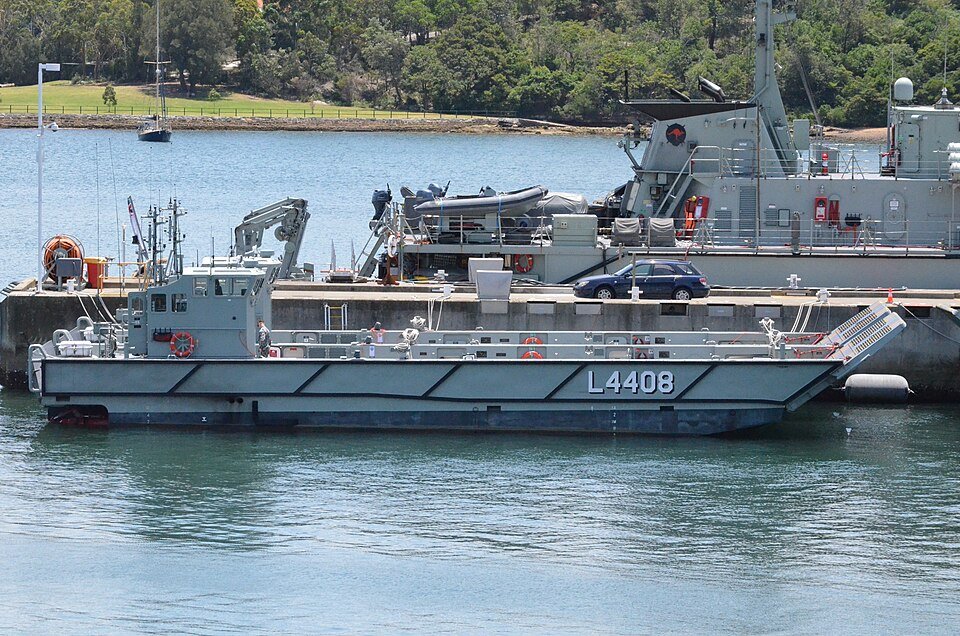

   4 × LHD Landing Craft 2 x 7.2m RHIBs in port and starboard boat bays

   Capacity

   Infobox · Capacity

   Up to 110 vehicles Heavy vehicle deck: 1,410 m 2 (15,200 sq ft) Light vehicle deck: 1,880 m 2 (20,200 sq ft)

   Troops

   Infobox · Troops

   1,046 standard 1,600 overload

   Complement

   Infobox · Complement

   358 personnel; 293 RAN, 62 Australian Army, 3 RAAF

   Sensors & processing systems

   Infobox · Sensors & processing systems

   Giraffe AMB radar Saab 9LV combat system

   Electronic warfare & decoys

   Infobox · Electronic warfare & decoys

   AN/SLQ-25C Nixie towed torpedo decoy Nulka missile decoy

   Armament

   Infobox · Armament

   4 × Rafael Typhoon 25 mm (1.0 in) remote weapons systems 6 × 12.7 mm (0.5 in) machine guns

   Aircraft carried

   Infobox · Aircraft carried

   8 helicopters (standard) 18 helicopters (maximum hangar space)

   Aviation facilities

   Infobox · Aviation facilities

   Flight deck with 13-degree ski-jump , 6 in-line deck landing spots

   Landing craft carried

   Infobox · Boats & landing craft carried

   Boats & landing craft carried 4 × LHD Landing Craft 2 x 7.2m RHIBs in port and starboard boat bays

   Troop capacity

   Infobox · Troops

   Troops 1,046 standard 1,600 overload
