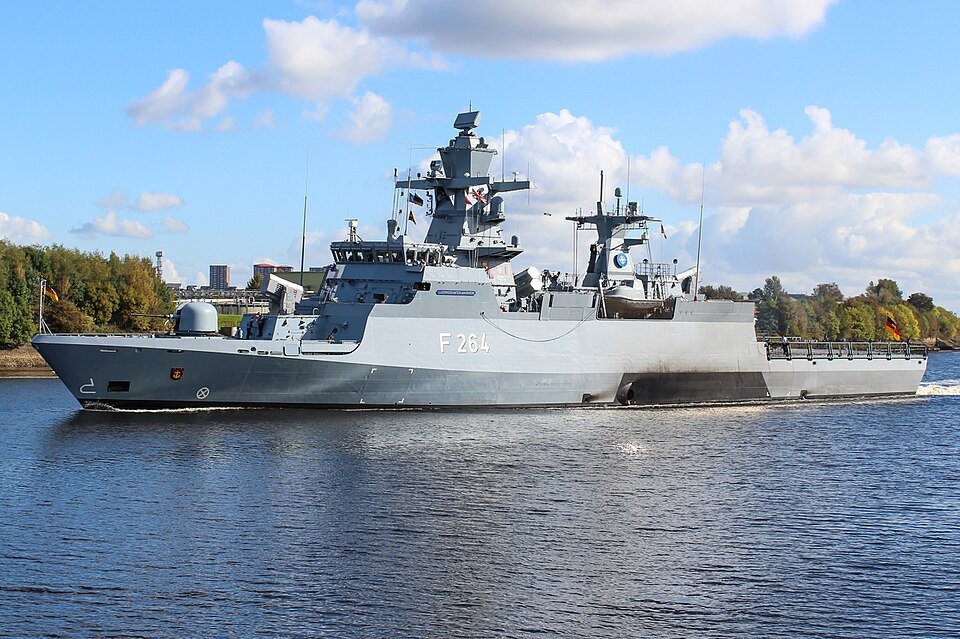

Braunschweig-class corvette

1. Braunschweig-class corvette · Wikipedia revision 1372202084 ↗

   Builders

   Infobox · Builders

   Blohm and Voss Lürssen Werft Nordseewerke Emden German Naval Yards Kiel

   Operators

   Infobox · Operators

   German Navy Israeli Navy

   Preceded by

   Infobox · Preceded by

   Gepard class

   Subclasses

   Infobox · Subclasses

   Sa'ar 6 class

   Cost

   Infobox · Cost

   € 240 million (2001) (equivalent to € 166.5 million in 2021) per ship (Batch 1) € 400 million (2017) (equivalent to € 427.84 million in 2021) per ship (Batch 2)

   Built

   Infobox · Built

   2004–present

   In commission

   Infobox · In commission

   2008–present

   Planned

   Infobox · Planned

   10

   Building

   Infobox · Building

   4

   Completed

   Infobox · Completed

   6

   Active

   Infobox · Active

   6

   Type

   Infobox · Type

   Corvette

   Displacement

   Infobox · Displacement

   1,840 t (1,810 long tons )

   Length

   Infobox · Length

   89.12 m (292 ft 5 in)

   Beam

   Infobox · Beam

   13.28 m (43 ft 7 in)

   Draft

   Infobox · Draft

   3.4 m (11 ft 2 in)

   Propulsion

   Infobox · Propulsion

   2 MTU 20V 1163 TB 93 diesel engines producing 14.8MW, driving two controllable-pitch propellers.

   Speed

   Infobox · Speed

   26 knots (48 km/h; 30 mph)

   Range

   Infobox · Range

   4,000 nmi (7,400 km; 4,600 mi) at 15 kn (28 km/h; 17 mph)

   Endurance

   Infobox · Endurance

   7 days; 21 days with tender

   Complement

   Infobox · Complement

   65 : 1 commander , 10 officers , 16 chief petty officers , 38 enlisted

   Sensors & processing systems

   Infobox · Sensors & processing systems

   Cassidian TRS-3D (Batch 1) Passive electronically scanned array Hensoldt TRS-4D (Batch 2) multifunction NATO C-band AESA radar 2 navigation radars MSSR 2000 i IFF system MIRADOR electro-optical sensors UL 5000 K ESM suite Link 11 and Link 16 communications

   Electronic warfare & decoys

   Infobox · Electronic warfare & decoys

   2 × TKWA/MASS (Multi Ammunition Softkill System) decoy launcher UL 5000 K ECM suite

   Armament

   Infobox · Armament

   Guns: 1 × OTO Melara 76 mm gun 2 × Mauser BK-27 autocannons Anti-ship: 4 × RBS-15 Mk.3 anti-ship missiles Close-in weapon system : 2 × RAM Block II launchers, 21 missiles each Mine laying capability; 2 mine racks of 34 naval mines Mk 12

   Aircraft carried

   Infobox · Aircraft carried

   Helicopter pad and hangar for two drones
