Radar & sensorsIn service
3D phased array

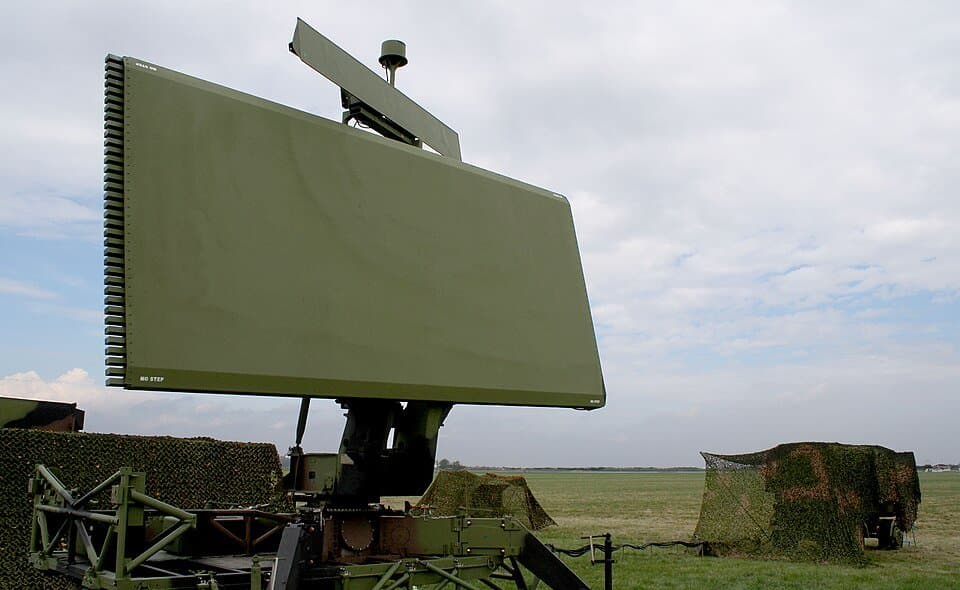

AN/TPS-70 is a 3D phased array originating in United States. It was built by Northrop Grumman.
United StatesTechnical data
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 29 Sept 2026 | 5.5 m | Wikipedia contributors | superseded |
| 29 Sept 2026 | 5.5 m | Wikipedia contributors | approved |
United States
Northrop Grumman
1986 ( 1986 )
3D phased array
2.9–3.0 GHz (10.34–9.99 cm) ( S band )
250–275 pps
1.5º
6.5 μs
6 rpm
280 mi (450 km)
100,000 ft (30,000 m)
8.3 feet (2.54 m)
18 ft (5.5 m)
3.5 MW peak 6.2 kW average
AN/TPS-43 predecessor AN/TPS-78 successor
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
AN/TPS-70 equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
Morocco
SwitzerlandReported count for AN/TPS-70 Tactical Flight Radar ( TAFLIR ). Service scope: Swiss Army; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Retired, wholly reserve and on-order rows are excluded; the reported count retains any explicitly mixed stock scope in the quoted row. Count column(s): quantity (2024): 5. Origin: United States. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
