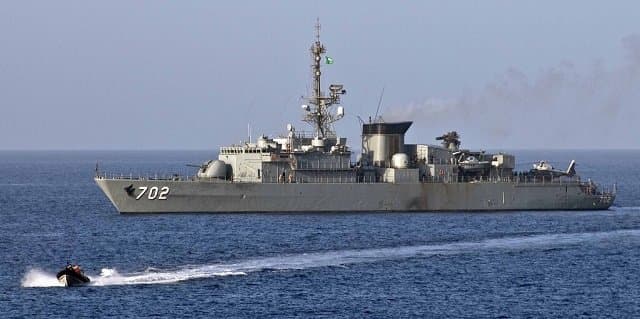

Al Madinah-class frigate

1. Al Madinah-class frigate · Wikipedia revision 1371485596 ↗

   Name

   Infobox · Name

   Al Madinah class

   Builders

   Infobox · Builders

   Arsenal de Lorient , France CNIM , La Seyne , France

   Operators

   Infobox · Operators

   Royal Saudi Navy

   Succeeded by

   Infobox · Succeeded by

   Al Riyadh class

   Built

   Infobox · Built

   1981–1986

   In commission

   Infobox · In commission

   1985–present

   Planned

   Infobox · Planned

   4

   Completed

   Infobox · Completed

   4

   Active

   Infobox · Active

   4

   Type

   Infobox · Type

   Frigate

   Displacement

   Infobox · Displacement

   1,990 tons standard 2610 tons full load

   Length

   Infobox · Length

   377 ft 4 in (115.01 m)

   Beam

   Infobox · Beam

   41 ft (12 m)

   Draught

   Infobox · Draught

   15 ft 4 in (4.67 m)

   Installed power

   Infobox · Installed power

   32,500 bhp (24,200 kW)

   Propulsion

   Infobox · Propulsion

   2 shaft, SEMT Pielstick diesel engines

   Speed

   Infobox · Speed

   30 knots (56 km/h; 35 mph)

   Range

   Infobox · Range

   8,000 nmi (15,000 km; 9,200 mi) at 15 kn (28 km/h; 17 mph)

   Complement

   Infobox · Complement

   179

   Sensors & processing systems

   Infobox · Sensors & processing systems

   Radars 2 x Decca 1226, Thompson CSF – Sea Tiger DRBV-15, DRBC-32E Castor 2 (fire control) Sonar Hull-mounted Thompson CSF Diodon, Diodon-Sorel VDS

   Electronic warfare & decoys

   Infobox · Electronic warfare & decoys

   Thompson CSF DR4000 ESM, SENIT VI CCS, Decoys: Two CSEE Dagaie chaff launchers

   Armament

   Infobox · Armament

   8 × Otomat mk 2 anti ship missiles 1 × 100 mm/55 compact gun 2 × twin 40 mm/70 Breda Bofors guns 1 × 8-cell Crotale surface to air missile launcher (24 missiles) 4 × 550 mm torpedo tubes (F17P torpedoes)

   Aircraft carried

   Infobox · Aircraft carried

   1 × SA365F Dauphin helicopter

   Aviation facilities

   Infobox · Aviation facilities

   Flight deck and hangar
