The slender cylindrical body has cruciform aerodynamic surfaces. This external illustration does not expose internal seeker, propulsion or fuze construction.1
FORCETALLY
Loading the evidence…
Preparing your view.
Preparing your view.
MissilesIn serviceProfile in progress
AIM-120C-7 is a version of the AMRAAM radar-guided air-to-air missile. Its compact clipped-fin configuration supports carriage on several fighter types.

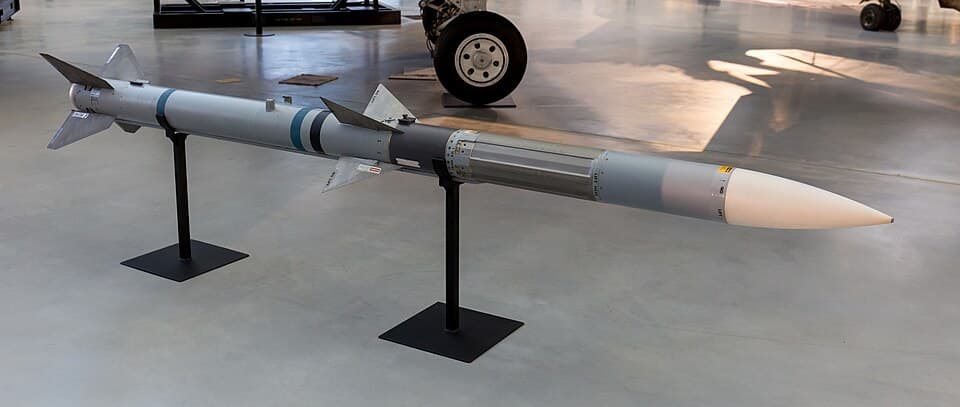

United StatesAn AIM-120 AMRAAM on display at the National Air and Space Museum Steven F. Udvar-Hazy Center in Chantilly, Virginia. Historical equipment reference photograph. It does not establish current availability or every detail of the named variant.
Balon Greyjoy · CC0 · Wikimedia Commons · CC0 · Source ↗ · ModifiedMedium range radar guided air-to-air missile / surface-to-air missile (AMRAAM-ER and SLAMRAAM )
United States
September 1991 ( 1991-09 ) –present
See § Operators
Gulf War Bosnian War Kosovo War Syrian civil war 2019 Jammu and Kashmir airstrikes Russo-Ukrainian War Russian invasion of Ukraine Yemeni civil war (2014–present) Saudi-led intervention in the Yemeni civil war 2025 Russian drone incursion into Poland
1991–97 – Hughes 1997–present – Raytheon
US$1,095,000 (AIM-120D FY 2019)
AIM-120A, AIM-120B, AIM-120C, AIM-120D, AMRAAM-ER
356 lb (161.5 kg)
12 ft (3.65 m)
7 in (178 mm)
1 ft 7 in (484 mm)
High explosive blast-fragmentation
44 lb (20 kg)
FZU-49 Proximity fuze , impact fuse system
Solid-fuel rocket motor. AIM120A/B/C-1 through C-4, boost-sustainer configuration. AIM120C-5 and later/D, booster only.
Reduced smoke hydroxyl-terminated poly-butadiene (HTPB) binder
AIM-120A/B 40 nmi (75 km) AIM-120C 49 nmi (90 km) AIM-120D 70–86 nmi (130–160 km)
Mach 4 (4,501 ft/s; 1,372 m/s)
Inertial guidance , terminal active radar homing , optional mid-course update datalink
AIM-120C-5/6/7 40G maximum overload via forward and rear canards
Janes C-5 performance assessment ->
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
The system in detail
The slender cylindrical body has cruciform aerodynamic surfaces. This external illustration does not expose internal seeker, propulsion or fuze construction.1
Inertial guidance and updates support the midcourse phase, followed by active-radar terminal guidance. Aircraft integration and software are part of the supported configuration.1
This page covers C-7 air launch. AIM-120D changes and ground-launched NASAMS performance must not be copied into the same specification.1
Launch altitude, speed and target motion strongly affect reach. A single unsourced range value would create a misleading comparison with another missile.1
