Anti-tank weapons2005–present
Anti-tank guided missile

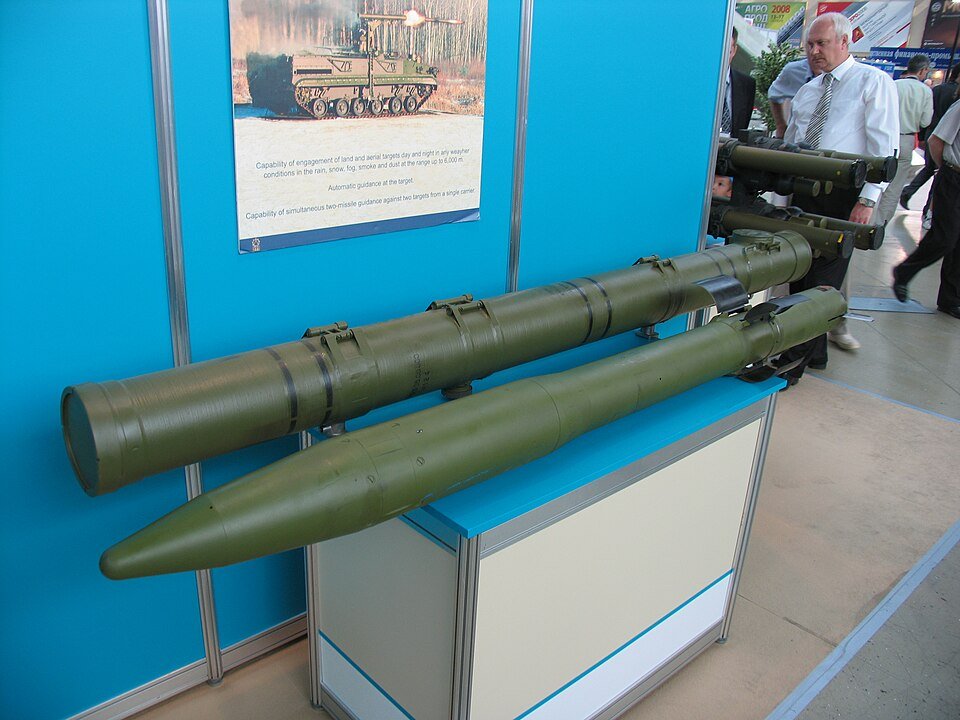

9M123 Khrizantema is a anti-tank guided missile originating in Russia. It was built by KBMN. Reported operators include Russia.
Technical data
True scale
Sourced dimensions beside a 1.75 m human reference.
Points represent sourced observations, including revisions. Revisions on the same effective date are not separate inventory events. Ranges appear in the table and are not plotted as exact points.
| Observation / report period | Value | Source | Claim state |
|---|---|---|---|
| 28 Sept 2026 | 2.357 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 2.357 m | Wikipedia contributors | superseded |
| 28 Sept 2026 | 2.357 m | Wikipedia contributors | approved |
Anti-tank guided missile
Russia
2005–present
Russia
Libyan civil war (2011)
KBM ( Kolomna )
1996 ( 1996 )
KBMN
2005-present
9M123, 9M123-2, 9M123F, 9M123F-2
46 kg (101 lb) (54 kg (119 lb) with launch tube)
2,357 mm (7.733 ft)
150 mm (5.9 in)
310 mm (12 in)
Tandem-charge HEAT (9M123), thermobaric (9M123F)
8 kg (18 lb) (9M123) 6 kg (13 lb) (9M123F)
Impact fuze
Solid-fuel rocket
400-6,000 m (3.7 mi)
400 m/s (Mach 1.2)
ACLOS radar beam riding , SACLOS laser beam riding
Two control surfaces
<5 m
9P157-2 tank destroyer (based on BMP-3 chassis), Mil Mi-28 , Ka-52 Alligator
Azerbaijan
Libya
Russia
Reference text from Wikipedia contributors, used under CC BY-SA 4.0.
9M123 Khrizantema equipment records. Variants, orders and quantities are shown as reported in each inventory source; coverage is incomplete.
AzerbaijanReported count for 9M123 Khrizantema. Service scope: Azerbaijani Land Forces; does not replace a national total. 1 distinct count cell(s) from the same source list; shared rowspan cells counted once. Excludes retired/reserve/on-order rows. Count column(s): number: 37. Origin: Russia. The listed variants/roles are the scope, not an immediately deployable count. The components do not establish one inventory census date; the stored date is the retrieved source snapshot.
Libya Russia
