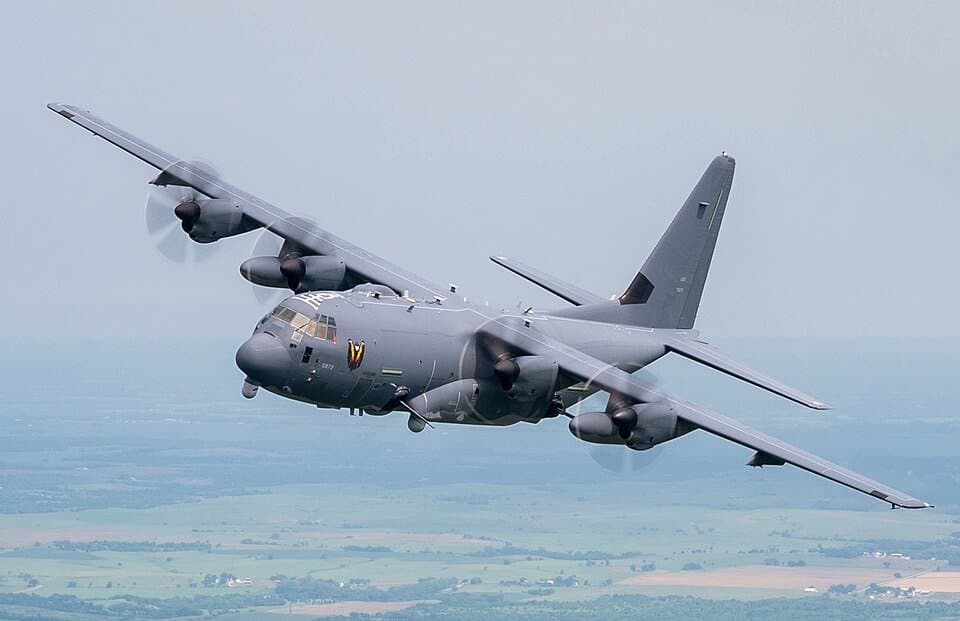

MSgt Christopher Boitz · Public domain · Resized · Public domain · Source ↗ · Modified
FORCETALLY
Loading the evidence…
Preparing your view.
Preparing your view.
At a glance
Measured figures
AC-130 · Length
Single source97 ft 9 in (29.79 m)[source]
KAAN development aircraft; manufacturer technical data, configuration not stated · Length
Single sourceConfiguration
| Specification | Lockheed AC-130 | TAI TF Kaan |
|---|---|---|
| Type | Ground-attack aircraft and close air support gunship for SOF teams[source] | Stealth multirole / air superiority fighter[source] |
| National origin | United States[source] | Turkey[source] |
| Manufacturer | Lockheed Martin Boeing[source] | Turkish Aerospace Industries[source] |
| Status | In service (AC-130J)[source] | Under development |
Preliminary specifications (KAAN development aircraft) · Length
Single source20.3 m (66 ft 7 in)[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration
20,3 m (66 ft)[source]KAAN development aircraft; manufacturer technical data, configuration not stated
AC-130 · Wingspan
Single source132 ft 7 in (40.41 m)[source]
KAAN development aircraft; manufacturer technical data, configuration not stated · Wingspan
Single sourcePreliminary specifications (KAAN development aircraft) · Wingspan
Single source13.4 m (44 ft 0 in)[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration
13,4 m (44 ft)[source]KAAN development aircraft; manufacturer technical data, configuration not stated
AC-130 · Height
Single source38 ft 6 in (11.73 m)[source]
KAAN development aircraft; manufacturer technical data, configuration not stated · Height
Single sourcePreliminary specifications (KAAN development aircraft) · Height
Single source5 m (16 ft 5 in)[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration
5 m (16 ft)[source]KAAN development aircraft; manufacturer technical data, configuration not stated
Maximum take-off; AC-130 · Max takeoff weight
Single source155,000 lb (70,307 kg)[source]
Maximum take-off; Preliminary specifications (KAAN development aircraft) · Maximum takeoff weight
Single source34,750 kg (76,500 lb)[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration
34.750 kg (76,500 lb)[source]KAAN development aircraft; manufacturer technical data, configuration not stated
AC-130 · Officers: 4 (Two Pilots, Two Combat Systems Officers) Enlisted: 3 (Special Mission Aviators)
Single source7 Officers: 4 (Two Pilots, Two Combat Systems Officers) Enlisted: 3 (Special Mission Aviators)[source]
One[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration
Maximum; AC-130 · Maximum speed
Single source362 kn (416 mph, 669 km/h)[source]
AC-130 · 4 × Allison T56 -A-15 turboprop engine, 4,300 shp ( ) each (AC-130U
Single source4 × Allison T56 -A-15 turboprop engine, 4,300 shp (3,200 kW) each (AC-130U)[source]
Preliminary specifications (KAAN development aircraft) · 2 × General Electric F110-GE-129 Turbofan thrust each dry
Single sourcePreliminary specifications (KAAN development aircraft) · with afterburner
Single source2 × General Electric F110-GE-129 Turbofan , 76.3 kN (17.155 lbf) thrust each dry, 131 kN (29,000 lbf) with afterburner[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration
2 x 13.150 kgf (2 x 29,000 lb)[source]KAAN development aircraft; manufacturer technical data, configuration not stated
AC-130 · Wing area
Single source1,745.5 sq ft (162.16 m 2 )[source]
KAAN development aircraft; manufacturer technical data, configuration not stated · Wing area
Single sourcePreliminary specifications (KAAN development aircraft) · Wing area
Single source71.6 m 2 (770 sq ft)[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration
71,6 m2 (771 ft2)[source]KAAN development aircraft; manufacturer technical data, configuration not stated
AC-130 · Service ceiling
Single source39,000 ft (12,000 m)[source]
KAAN development aircraft; manufacturer technical data, configuration not stated · Service ceiling
Manufacturer claimPreliminary specifications (KAAN development aircraft) · Service ceiling
Single source16,764 m (55,000 ft)[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration
16.764 m (55,000 ft)[source]KAAN development aircraft; manufacturer technical data, configuration not stated
Bars compare reported quantities only. A larger figure does not make a system better; configurations and test conditions differ.
| Primary user | United States Air Force[source] | Turkish Air Force[source] |
|---|
| Introduction date | AC-130A: 1968 AC-130H: 1969 AC-130U: 1995 AC-130W: 2012 AC-130J: 2017[source] | 2030s (planned)[source] |
|---|
| First flight | AC-130A: 1967[source] | 21 February 2024[source] |
|---|
| Retired | AC-130A: 1995 AC-130H: 2015 AC-130U: 2020 AC-130W: 2022[source] | — |
|---|
| Developed from | Lockheed C-130 Hercules Lockheed Martin C-130J Super Hercules[source] | — |
|---|
| Officers | 4 (Two Pilots, Two Combat Systems Officers)[source] | — |
|---|
| Enlisted | 3 (Special Mission Aviators)[source] | — |
|---|
| Propellers | 6-bladed Dowty R391 featuring ARA-D/A airfoils[source] | — |
|---|
| Navigation systems | Teledyne Ryan (now part of Northrop Grumman ) AN/APN-218 radar – doppler navigation radar[source] | — |
|---|
| Previously installed systems | AN/APN-59 radar – search and weather radar[source] | — |
|---|
| Mission systems | Raytheon AN/APQ-180 multimode attack radar – enhanced version of AN/APG-70 radar (used on F-15E Strike Eagle ) incorporating several enhanced air-to-ground modes such as fixed target track, ground moving target indication and track, projectile impact point position, beacon track, and a weather detection Raytheon AN/AAQ-26 IDS – LWIR FLIR (mounted on port side of the nose landing gear door) Lockheed Martin AN/AAQ-39 Gunship Multispectral Sensor System (GMS2) – EO/IR fire control system consists of mid-wave infrared (MWIR) FLIR, two Image-Intensified Television (I2TV) cameras ( CCD-TV ), laser target designator/rangefinder with eyesafe mode (1064 and 1570 nm dual mode laser emitter), and near-infrared (NIR) laser pointer/marker (860 nm laser emitter) (mounted under the nose of port landing gear sponson)[source] | — |
|---|
| Countermeasures | Raytheon AN/ALR-69 – digital Radar warning receiver (RWR) L-3 Communications AN/AAR-44 – UV-based Missile Approach Warning System (MAWS) ITT Exelis AN/ALQ-172 – Digital radio frequency memory (DRFM) jammer-based Electronic countermeasure (ECM) incorporating integrated Electronic Warfare (EW) self-protection function of detection, processing, warning, prioritization, jamming, and threat display BAE Systems AN/ALQ-196 Low-Band Jammer (LBJ) – low frequency DRFM jammer-based ECM Northrop Grumman AN/AAQ-24 Nemesis – laser-based Directional Infrared Counter Measures (DIRCM) (mounted on the port and starboard rear fuselage) BAE Systems AN/ALE-47 Countermeasure Dispensing System (CMDS) – chaff/flare dispenser[source] | — |
|---|
| Other name | — | TF or MMU[source] |
|---|
| Designer | — | BAE Systems TAI[source] |
|---|
| Prototypes | — |
|---|
| Flights | — |
|---|
| Initiated | — | 2010[source] |
|---|
| g limits | — | +9,0 g & −3,5 g[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration |
|---|
| Wing loading | — | 485 kg/m 2 (99 lb/sq ft)[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration |
|---|
| Thrust/weight | — | 0,75[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration |
|---|
| Guns | — | 30x113 mm[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration |
|---|
| Hardpoints | — | 8 internal; 3 per wing, total 6 external[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration |
|---|
| Missiles | — | Air-to-air missiles : GÖKTUĞ missile program: Gökdoğan BVR active radar homing Gökhan ramjet engine powered BVR active radar homing Bozdoğan short-range infrared homing Air-to-surface missiles : SOM Cruise Missile (B1, B2, and J variants) KUZGUN-TJ, Turbojet-powered Air-to-surface missile KUZGUN-KY, Solid fuel Rocket-powered Air-to-surface missile KUZGUN-ER, Turbojet-powered , Air-to-surface missile (According to TUBITAK-SAGE, this missile will be equivalent to Penguin Missiles .) KUZGUN-EW, KUZGUN-EW will be able to carry miniaturised EW payload which will act as a stand-in jammer and suppress enemy air defences to significantly increase the survivability of the aircraft of the Turkish Air Force . AKBABA, Air-to-surface , Anti-radiation Missile (ARM) ROKETSAN ÇAKIR Missile Family , Anti-ship , Air-to-surface , surface-to-surface Cruise Missile .[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration |
|---|
| Bombs | — | Teber-81 ( Mark 81 bomb w/ ROKETSAN Laser Guidance Kit) HGK-82 ( Mark 82 bomb w/ TUBITAK-SAGE Precision Guidance Kit ) KGK-82 ( Mark 82 bomb w/ TUBITAK-SAGE Wing Assisted Guidance Kit) Teber-82 ( Mark 82 bomb w/ ROKETSAN Laser Guidance Kit) HGK-83 ( Mark 83 bomb w/ TUBITAK-SAGE Precision Guidance Kit ) KGK-83 ( Mark 83 bomb w/ TUBITAK-SAGE Wing Assisted Guidance Kit) HGK-84 ( Mark 84 bomb w/ TUBITAK-SAGE Precision Guidance Kit ) LHGK-84 ( Mark 84 bomb w/ TUBITAK-SAGE Laser Sensitive Guidance Kit) SARB-83, Bunker buster NEB-84, Bunker buster MAM (Smart Micro Munition) (MAM-T variant) KUZGUN-SS, Glide bomb ASELSAN Miniature Bomb[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration |
|---|
| Integrated RF System (IRFS) | — | MURAD-600A AESA radar Radar warning receiver[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration |
|---|
| Integrated Electro-Optical System (IEOS) | — | KARAT-200 Infrared Search and Track (IRST) TOYGUN Electro-optical reconnaissance, surveillance and targeting system İRİS-300 Missile approach warning system (IR-MWS/360° day/night imaging) YILDIRIM-300 Directional Infrared Counter Measures (DIRCM) LİAS-300 Laser warning receiver (LWS)[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration |
|---|
| Integrated Communications Navigation and IFF (ICNI) | — | ICNAir-ASQ9683 communications suite ARVEN radio-navigation equipment IdentIFF Mode-5 identification friend or foe[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration |
|---|
| Advanced Cockpit / Human Machine Interface | — | TULGAR Helmet-mounted display (HMDS) LAD-208 Large area display (LAD)[source]Preliminary specifications; development aircraft, not a verified production Block 10 configuration |
|---|
| Positive / Negative G Limit | — | +9 / -3,5 G[source]KAAN development aircraft; manufacturer technical data, configuration not stated |
|---|
