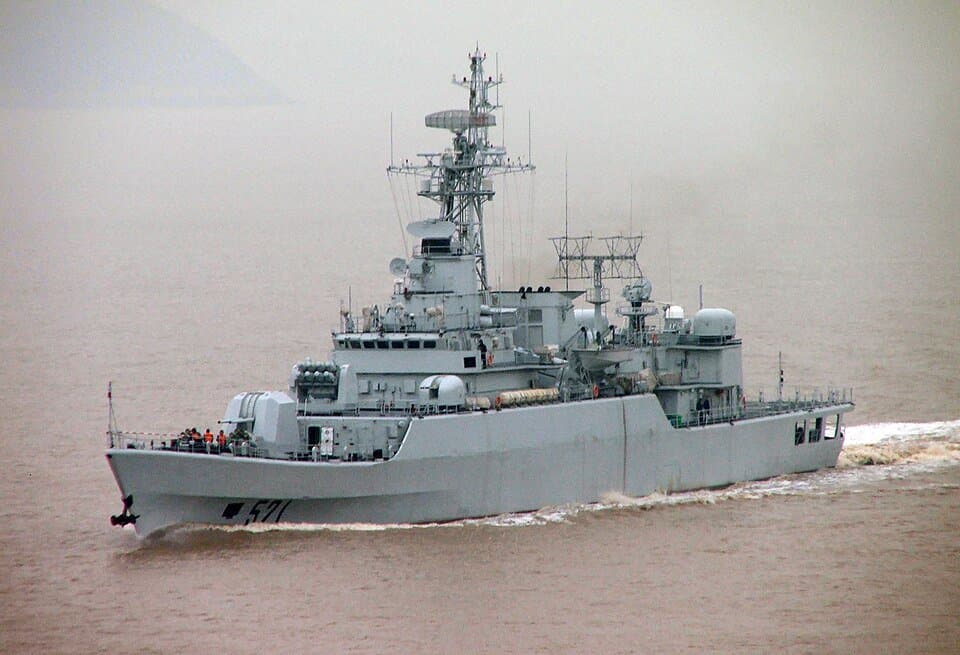

Type 053H3 frigate — licensed reference photograph

AWarships

Type 053H3 frigate

Frigate

Credit

SteKrueBe · CC BY-SA 3.0 · Resized · CC BY-SA 3.0 · Source ↗ · Modified

Type 054A frigate — licensed reference photograph

BWarships

Type 054A frigate

Frigate

Credit

日本防衛省・統合幕僚監部 · CC BY 4.0 · Resized · CC BY 4.0 · Source ↗ · Modified

First system

Second system

At a glance

Side by side

Length comparisonOne shared metre scale

Type 053H3 frigateLength

112 m

Length source ↗

Type 054A frigateLength

134 m

Length source ↗

Lengths retain their source configuration and measurement scope.

Type 053H3 frigatelarger figure on 1 of 4

Speed+4%

Type 054A frigatelarger figure on 3 of 4

Length+20%
Beam+29%
Draught+16%

Counts only measures both sources give with the same scope. A larger figure is not a better system.

Measured figures

Head to head

20 of 30 rows sourced on both sides

112m

134m

Length+20%

All recorded figures & sources

112 m

Length

Single source

112 m (367 ft 5 in)^[source]

134 m

Length

Single source

Configuration

Details

Type 053H3 frigate and Type 054A frigate configuration
Specification	Type 053H3 frigate	Type 054A frigate
Power	CODAD , 2 shaft, 2 x 18E390VA diesel at 23,600 hp (17,600 kW) 2 x MTU diesel at 8,715 hp (6,499 kW)^[source]	CODAD , 4 × SEMT Pielstick 16 PA 6V 280 STC diesels, 20.7 MW (28,200 hp) total, 2 shafts^[source]
Name	Type 053H3^[source]	—
Operators	People's Liberation Army Navy Surface Force Bangladesh Navy^[source]	People's Liberation Army Navy China Coast Guard Pakistan Navy^[source]
Preceded by	Type 053H2G^[source]	Type 054 frigate^[source]

Succeeded by	Type 054^[source]	Type 054B frigate^[source]

Subclasses	Zulfiquar class ( Pakistan Navy )^[source]	Tughril class (Pakistan) Type 818 Cutter (China Coast Guard)^[source]

Planned	10^[source]	50^[source]

Completed	10^[source]	—

Active	8 (PLAN Surface Force) 2 (Bangladesh Navy)^[source]	46^[source]

Type	Frigate^[source]	Frigate^[source]

Endurance	21^[source]	—

Sensors & processing systems	Type 360 Radar (SR60) surface search, E/F band Type 517H-1 (Knife Rest) 2D long-range air search, A-band Type 345 Radar (MR35) HQ-7 surface-to-air missile fire-control, J-band Type 352 Radar (Square Tie) surface search and SSM fire control, I-band Type 343GA (Wasp Head) fire control radar for main gun, G/H-band 2 × Type 347G/EFR-1 (Rice Lamp) dual 37 mm AA gun fire control, I-band 2 × Racal RM-1290 navigation radar, I-band^[source]	Type 382 Radar Type 344 Radar (Mineral-ME Band Stand ) target acquisition and SSM fire control radar 4 × MR-90 Front Dome SAM fire control radars MR-36A surface search radar, I-band Type 347G 76 mm gun fire control radar 2 × Racal RM-1290 navigation radars, I-band MGK-335 medium frequency active/passive sonar system H/SJG-206 towed array sonar ZKJ-4B/6 (developed from Thomson-CSF TAVITAC) combat data system HN-900 Data link (Chinese equivalent of Link 11 A/B, to be upgraded) SNTI-240 SATCOM AKD5000S Ku band SATCOM^[source]

Electronic warfare & decoys	Data link : HN-900 (Chinese equivalent of Link 11 A/B, to be upgraded) Communication : SNTI-240 SATCOM Combat Data System: ZKJ-3C RWD-8 (Jug Pair) intercept Type 981-3 EW Jammer SR-210 Radar warning receiver Type 651A IFF 2 × Type 946/PJ-46 15-barrel decoy rocket launchers^[source]	2 × Type 726-4 18-tube decoy rocket launchers Type 922-1 radar warning receiver HZ-100 ECM & ELINT system Kashtan-3 missile jamming system^[source]

Armament	8 × YJ-83 SSM in 2 x 4-cell box launchers 1 × 8-cell HQ-7 surface-to-air missile system (replaced with 1 x 8-cell HQ-10 on PLA ships) 1 × H/PJ-33B dual 100 mm gun (automatic) 4 × Type 76A dual 37 mm AA guns (replaced with 2 x Type 630 30mm guns on PLA ships) 2 × 6-tube Type 3200 ASW rocket launchers (36 rockets) 2 × DC racks & launcher^[source]	1 × 32-cell H/AKJ-16 VLS HHQ-16 SAM Yu-8 anti-submarine missile 2 × 4 YJ-83 anti-ship missiles 1 × H/PJ-26 76 mm naval gun (Type 054A and Type 054A+) or 1 x H/PJ-87 100 mm naval gun (Type 054AG) 2 × 30 mm Type 730 7-barrel gun-based CIWS or Type 1130 11-barrel gun-based CIWS 2 × 3 324 mm Yu-7 torpedo launchers 2 × 6 Type 87 240mm anti-submarine rocket launcher^[source]

Aircraft carried	Harbin Z-9 C^[source]	Type 054A: Harbin Z-9 C or Kamov Ka-28 'Helix' Type 054AG: Harbin Z-20 family helicopter including Z-20F anti-submarine version and the Z-20J naval utility version^[source]
