APatrol & mine warfare vessels

Fast patrol boat

BPatrol & mine warfare vessels

Patrol vessel

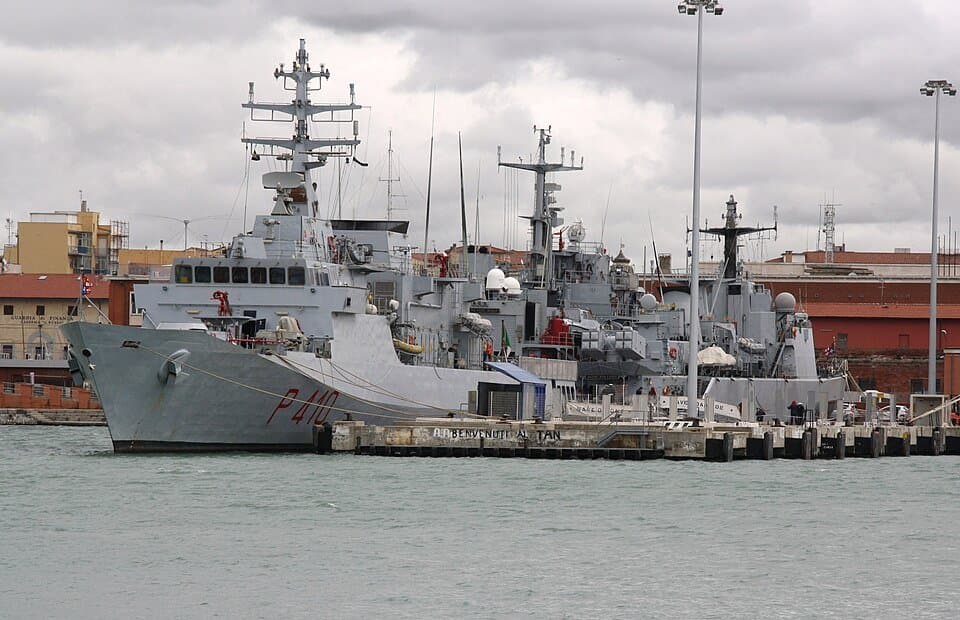

Credit

Piergiuliano Chesi · CC BY 3.0 · Resized · CC BY 3.0 · Source ↗ · Modified

First system

Second system

At a glance

Length comparisonOne shared metre scale

Pashe-class speedboatLength

19.5 m

Sirio-class patrol vesselLOA

88.6 m

Lengths retain their source configuration and measurement scope.

Pashe-class speedboatlarger figure on 1 of 4

Sirio-class patrol vessellarger figure on 3 of 4

Measured figures

12 of 22 rows sourced on both sides

19.5m

88.6mLOA

Length

All recorded figures & sources

19.5 m

Length

Single source

19.5 m (64 ft 0 in)^[source]

88.6 m

LOA

Single source

Configuration

Pashe-class speedboat and Sirio-class patrol vessel configuration
Specification	Pashe-class speedboat	Sirio-class patrol vessel
Power	Diesel^[source] 2 × MWM TBD 234 V12 engines, 1,646 horsepower (1.227 MW) 2 × shafts^[source]	- 2 shaft and 2 variable-pitch propellers - 2 x rudders - 2 x active-fin stabilizers - 2 x Wärtsilä -NSD W12-V-26 XN diesel engines (4,320 kW (5,790 hp) each) - 3 x Isotta Fraschini V1708 T2 M2 diesel generators (600 kW (800 hp) each)^[source]
Builders	Marine Industries Organization^[source]	Fincantieri , Riva Trigoso and Muggiano ( La Spezia )^[source]
Operators	Navy of the Islamic Revolutionary Guard Corps^[source]	Italian Navy

Type	Fast patrol boat^[source]	Patrol vessel^[source]

Sensors & processing systems	Surface search radar , I-band^[source]	1 × Selex ES RAN-30X/I (RASS) - MM/SPS-791 - multi-mode radar operating at X band, search radar with over-the-horizon (OTH) detection mode 2 × navigation radar GEM Elettronica SPN-753 (since 2012, GEM Elettronica Gemini-DB, X/Ku dual band radar) since 2012, Selex ES JANUS-N IRST system Selex ES CMS Elmer Integrated Communication System since 2012, Leonardo-Finmeccanica TDL M-DLP link 11/16/22^[source]
