At a glance

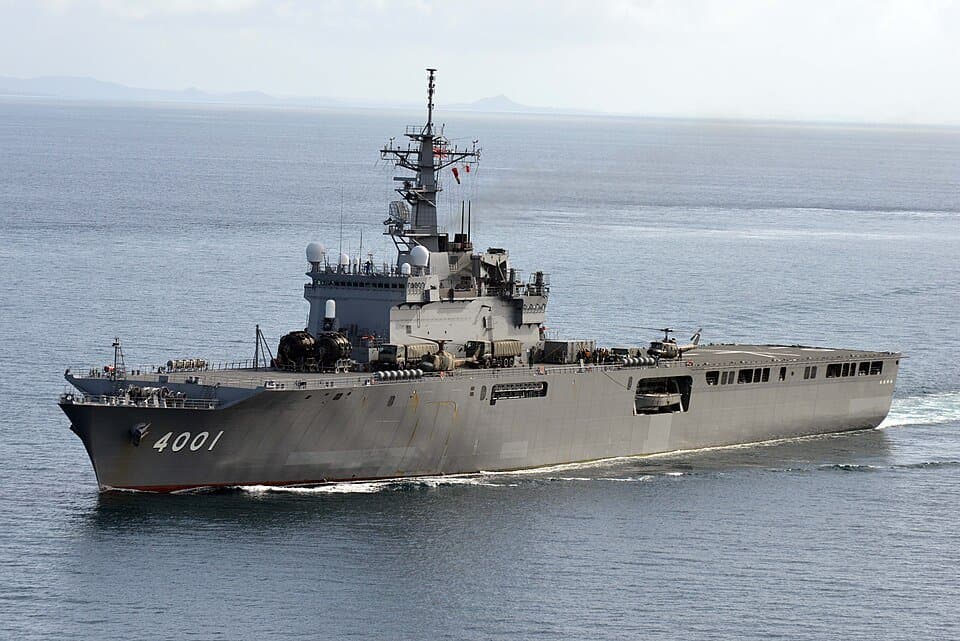

Ōsumi-class tank landing shiplarger figure on 3 of 4
Type 054A frigatelarger figure on 1 of 4
Counts only measures both sources give with the same scope. A larger figure is not a better system.
Measured figures
Unspecified
Single source180人[source]Unspecified
estimated at 18 kn (33 km/h; 21 mph)
Single source3,800 nautical miles (4,400 mi; 7,000 km) estimated at 18 kn (33 km/h; 21 mph)[source]
Bars compare reported quantities only. A larger figure does not make a system better; configurations and test conditions differ.
Configuration
| Specification | Ōsumi-class tank landing ship | Type 054A frigate |
|---|---|---|
| Power | 2 × Mitsui 16V42M-A Diesel , 26,000 bhp (19,000 kW )) 2 shafts 1 × bow thruster[source] | CODAD , 4 × SEMT Pielstick 16 PA 6V 280 STC diesels, 20.7 MW (28,200 hp) total, 2 shafts[source] |
| Builders | Mitsui , Tamano Hitachi , Maizuru[source] | Hudong-Zhonghua Shipyard Huangpu Shipyard[source] |
| Operators | Japan Maritime Self-Defense Force[source] | People's Liberation Army Navy China Coast Guard Pakistan Navy[source] |
| Preceded by | Miura class[source] | Type 054 frigate[source] |
| Built | 1993–1999[source] | 2005–present[source] |
| In commission | 1998–present[source] | 2008–present[source] |
| Planned | 50[source] | |
| Completed | — | |
| Active | 46[source] | |
| Type | Tank landing ship[source] | Frigate[source] |
| Boats & landing craft carried | 2 × Landing Craft Air Cushion (LCAC)[source] | — |
| Capacity | up to 10 main battle tanks[source] | — |
| Troops | 330 personnel[source] | — |
| Sensors & processing systems | OPS-14C air search radar OPS-28D surface-search radar OPS-20 navigation radar TACAN[source] | Type 382 Radar Type 344 Radar (Mineral-ME Band Stand ) target acquisition and SSM fire control radar 4 × MR-90 Front Dome SAM fire control radars MR-36A surface search radar, I-band Type 347G 76 mm gun fire control radar 2 × Racal RM-1290 navigation radars, I-band MGK-335 medium frequency active/passive sonar system H/SJG-206 towed array sonar ZKJ-4B/6 (developed from Thomson-CSF TAVITAC) combat data system HN-900 Data link (Chinese equivalent of Link 11 A/B, to be upgraded) SNTI-240 SATCOM AKD5000S Ku band SATCOM[source] |
| Electronic warfare & decoys | 4 × Mark 36 SRBOC[source] | 2 × Type 726-4 18-tube decoy rocket launchers Type 922-1 radar warning receiver HZ-100 ECM & ELINT system Kashtan-3 missile jamming system[source] |
| Armament | 2 × 20 mm Phalanx CIWS 2 × M2 Browning machine gun[source] | 1 × 32-cell H/AKJ-16 VLS HHQ-16 SAM Yu-8 anti-submarine missile 2 × 4 YJ-83 anti-ship missiles 1 × H/PJ-26 76 mm naval gun (Type 054A and Type 054A+) or 1 x H/PJ-87 100 mm naval gun (Type 054AG) 2 × 30 mm Type 730 7-barrel gun-based CIWS or Type 1130 11-barrel gun-based CIWS 2 × 3 324 mm Yu-7 torpedo launchers 2 × 6 Type 87 240mm anti-submarine rocket launcher[source] |
| Aircraft carried | Up to 8 helicopters tied topside[source] | Type 054A: Harbin Z-9 C or Kamov Ka-28 'Helix' Type 054AG: Harbin Z-20 family helicopter including Z-20F anti-submarine version and the Z-20J naval utility version[source] |
| Aviation facilities | Hangar and helipad[source] | hangar[source] |
| National origin | Japan[source] | — |
| Landing craft carried | 2 × Landing Craft Air Cushion (LCAC)[source]Source-stated capacity; all configurations and qualifiers retained | — |
| Troop capacity | 330 personnel[source]Source-stated capacity; all configurations and qualifiers retained | — |
| Succeeded by | — | Type 054B frigate[source] |
| Subclasses | — | Tughril class (Pakistan) Type 818 Cutter (China Coast Guard)[source] |
| Cost | — | US$348 million (est. 2015)[source] |
| Country of origin | — | People's Republic of China[source] People's Republic of China[source] |
