At a glance

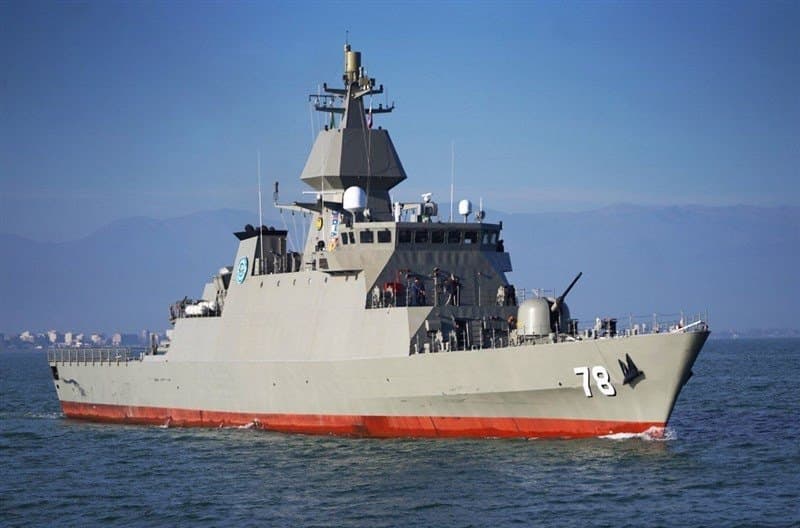

Moudge-class frigatelarger figure on 1 of 5

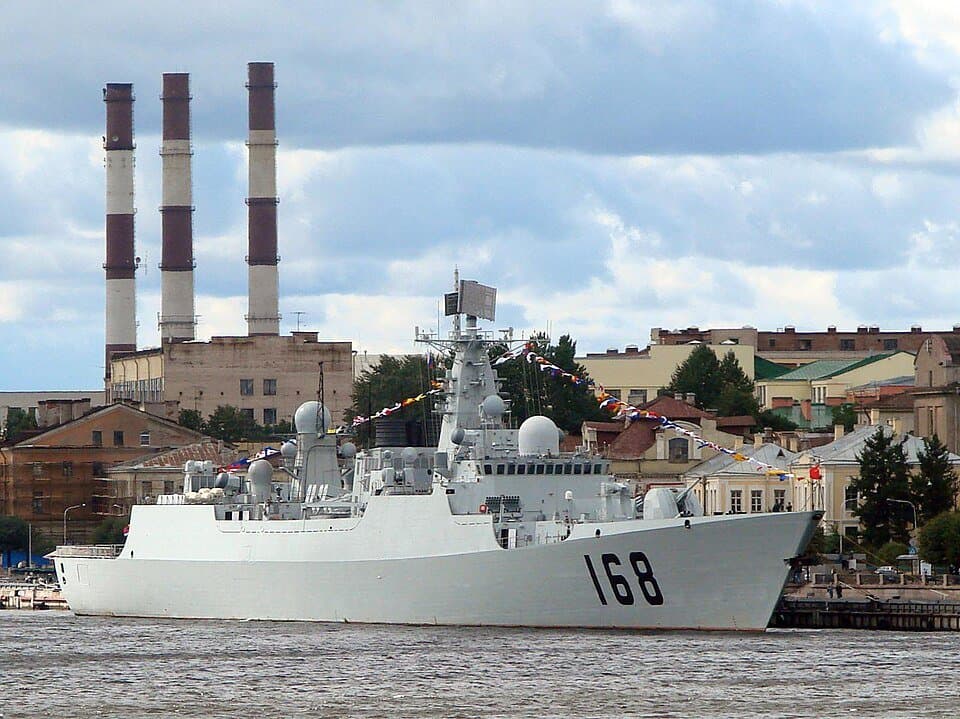

Type 052B destroyerlarger figure on 4 of 5
Measured figures
Length
Single source95 m (311 ft 8 in)[source]
Length
Single sourceConfiguration
| Specification | Moudge-class frigate | Type 052B destroyer |
|---|---|---|
| Range | — | 4500 nm at 14 kn[source] |
| Power | 2 × 10,000 hp (7,500 kW) engines 4 × 740 hp (550 kW) diesel generators[source] | Combined diesel or gas 2 × DA80 gas turbines (35.7 MW) 2 × MTU 1163 TB 83 diesel engines (10 MW)[source] |
| Name | Moudge[source] | — |
| Builders | Iranian Navy's Factories Marine Industries Organization[source] | Jiangnan Shipyard[source] |
| Operators | Islamic Republic of Iran Navy |
Counts only measures both sources give with the same scope. A larger figure is not a better system.
155 m (509 ft)[source]
Bars compare reported quantities only. A larger figure does not make a system better; configurations and test conditions differ.
People's Liberation Army Navy Surface Force[source] |
| Preceded by | Alvand class[source] | Type 052 (based on hull family) Type 956E / 956EM (based on commissioning date)[source] |
|---|
| Built | 2001–present[source] | 2001–2004[source] |
|---|
| In service | 2010–present[source] | July 2004–present[source] |
|---|
| Planned |
|---|
| Building | — |
|---|
| Completed |
|---|
| Active | 0?[source] |
|---|
| Lost | 6 (1 unconfirmed)[source] | — |
|---|
| Type | Frigate[source] | Guided-missile destroyer[source] |
|---|
| Sensors & processing systems | Asr 3D PESA long-range radar[source] | Fregat MAE-3 (Top Plate) 3D air search radar Type 364 search radar Front-Dome fire control radar Mineral-ME (Band Stand) fire control radar Type 344 fire control radar Type 347G(2) fire control radar Bow-mounted sonar Towed array sonar[source] |
|---|
| Electronic warfare & decoys | 2 × 8 tube chaff launcher[source] | SRW 210A ESM Type 984 jammer Type 985 jammer[source] |
|---|
| Armament | Naval guns 1 × 76 mm Fajr-27 naval gun 1 × 40 mm Fath-40 AAA or 1 × 30mm Kamand CIWS 2 × 20 mm cannons Oerlikon 2 × 12.7 mm heavy machine guns Surface to air missiles 4 × Mehrab SAM , a naval version of the Sayyad-2 or 4 × Sayyad-3 SAM Anti-ship missiles 4 × Noor or Qader anti-ship missiles (Some ships are equipped with 8 anti-ship missiles) Anti-submarine warfare 2 × triple 324 mm torpedoes[source] | 16 × YJ-83 anti-ship missiles 2 × Shtil-1 single-arm surface-to-air missile launchers (total 48 missiles) 1 × H/PJ87 100 mm main gun 2 × Type 730 CIWS 4 × multiple rocket launchers 2 × triple B515 324mm antisubmarine torpedo tubes ( Yu-7 )[source] |
|---|
| Aircraft carried | 1 × Bell 214 ASW helicopter[source] | 1 helicopter : Harbin Z-9 or Kamov Ka-28[source] |
|---|
| Aviation facilities | Helicopter landing pad[source] | Flight deck and hangar[source] |
|---|
| Succeeded by | — | Type 052C (based on hull family and commissioning date)[source] |
|---|
| Country of origin | — | People's Republic of China[source] |
|---|
