ATrainer aircraft
Lockheed CP-140 Aurora
Maritime patrol aircraft (CP-140) MPA trainer aircraft (CP-140A)
Credit
Ken Mist · CC BY-SA 2.0 · Resized · CC BY-SA 2.0 · Source ↗ · Modified
FORCETALLY
Loading the evidence…
Preparing your view.
Preparing your view.
ATrainer aircraft
Maritime patrol aircraft (CP-140) MPA trainer aircraft (CP-140A)
At a glance
Measured figures
CP-140 Aurora · Length
Single sourceCP-140 · Length
Single sourceConfiguration
| Specification | Lockheed CP-140 Aurora | Yakovlev Yak-130 |
|---|---|---|
| Type | Maritime patrol aircraft (CP-140) MPA trainer aircraft (CP-140A)[source] | Lead-in fighter trainer / Light combat aircraft[source] |
| Manufacturer | Lockheed Corporation[source] | Yakovlev, Sokol, Yakovlev Corporation[source] |
| Status | Active (CP-140M only)[source] | Active[source] |
| Primary user | Royal Canadian Air Force[source] | — |

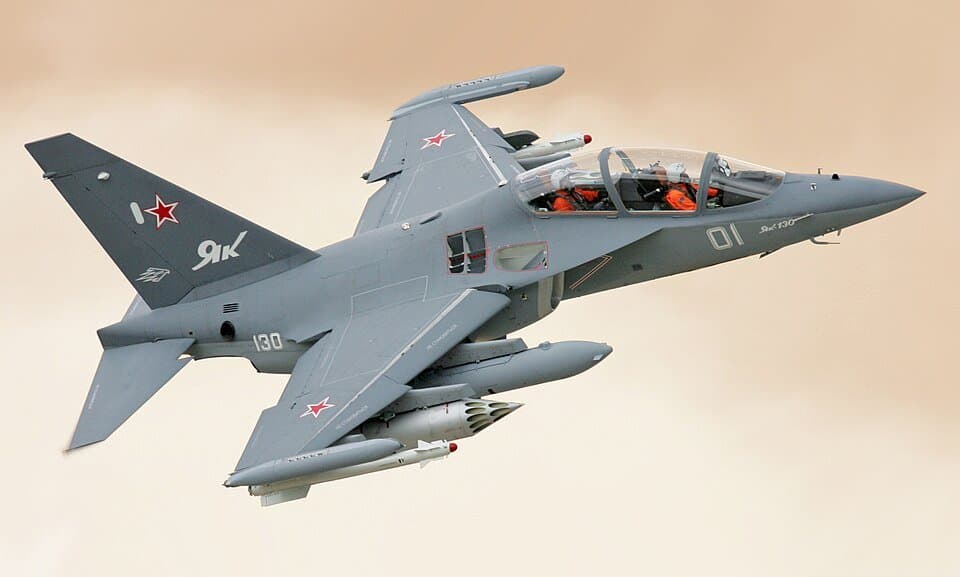

Yak-130 · Length
Single source11.49 m (37 ft 8 in)[source]
Gross; CP-140 Aurora · Gross weight · Maximum gross weight
Single sourceGross; CP-140 · Gross weight
Single source61,362 lb (27,833 kg)[source]
64,410 kg[source]CP-140 Aurora · Maximum gross weight
Empty; Yak-130 · Empty weight
Single sourceGross; Yak-130 · Gross weight
Single sourceMaximum; CP-140 Aurora · Maximum speed · Maximum speed
Single sourceMaximum; CP-140 · below cruise ceiling
Single source375 kn (432 mph, 694 km/h) below cruise ceiling[source]
750 km/h[source]CP-140 Aurora · Maximum speed
Cruise; Yak-130 · Cruise speed
Single sourceMaximum; Yak-130 · Maximum speed
Single sourceCP-140 · 4 × Allison T56-A-14-LFE turboprop engines each
Single source4 × Allison T56-A-14-LFE turboprop engines, 4,909 hp (3,661 kW) each[source]
Yak-130 · 2 × Ivchenko-Progress AI-222-25 turbofan engines thrust each
Single source2 × Ivchenko-Progress AI-222-25 turbofan engines, 24.52 kN (5,510 lbf) thrust each[source]
CP-140 · on station at 1,000 nmi (1,151 mi; 1,852 km) radius
Single source8 hours 12 minutes on station at 1,000 nmi (1,151 mi; 1,852 km) radius[source]
CP-140 · Hardpoints: 8 in weapons bay; 10 under-wing from capacity with a capacity of
Single sourceCP-140 · total in weapons bay, with provisions to carry combinations of
Single sourceHardpoints: 8 in weapons bay; 10 under-wing from 611 to 2,450 lb (277 to 1,111 kg) capacity with a capacity of 4,800 lb (2,177 kg) total in weapons bay, with provisions to carry combinations of:[source]
Yak-130 · 12,800 ft/min
Single source65 m/s (12,800 ft/min)[source]
Bars compare reported quantities only. A larger figure does not make a system better; configurations and test conditions differ.
| Number built | 21 (18 CP-140M + 3 CP-140A)[source] | 219[source] |
|---|
| Introduction date | 1980[source] | 19 February 2010[source] |
|---|
| First flight | 22 March 1979 (CP-140)[source] | 25 April 1996 ( 1996-04-25 ) (Yak/AEM-130) 30 April 2004 ( 2004-04-30 ) (Yak-130)[source] |
|---|
| Retired | 2011 (CP-140A only)[source] | — |
|---|
| Developed from | Lockheed P-3 Orion[source] | — |
|---|
| Fuel capacity | 7,661 imp gal (9,200 US gal; 34,828 L) usable fuel in one fuselage tank and four wing integral tanks[source] | — |
|---|
| Hardpoints | 8 in weapons bay; 10 under-wing from 611 to 2,450 lb (277 to 1,111 kg) capacity with a capacity of 4,800 lb (2,177 kg) total in weapons bay, with provisions to carry combinations of: Other: signal chargers, smoke markers , illumination flares[source] | 8 (1 on each wingtip, usable only for flares/chaff, 3 under each wing) with a capacity of up to 3,000 kg (6,614 lb), with provisions to carry combinations of: Rockets: 80 mm S-8 rocket, S-25 rocket Missiles: R-73 infrared-homing short-range air-to-air missiles Bombs: FAB-M62, ZB-500, KAB-500Kr[source] |
|---|
| Aspect ratio | 7.5[source] | — |
|---|
| Airfoil | root: NACA 0014 (modified) ; tip: NACA 0012 (modified)[source] | — |
|---|
| Propellers | 4-bladed Hamilton Standard 54H60, 13 ft 6 in (4.11 m) diameter constant-speed fully-feathering reversible-pitch propellers[source] | — |
|---|
| Maximum transit speed | 395 kn (455 mph; 732 km/h) at optimum altitude[source] | — |
|---|
| FAR balanced field length | 7,900 ft (2,408 m)[source] | — |
|---|
| Take-off distance to 50 ft (15 m) | 6,000 ft (1,829 m)[source] | — |
|---|
| Landing distance from 50 ft (15 m) | 3,200 ft (975 m) at 114,000 lb (51,710 kg) landing weight[source] | — |
|---|
| Other | signal chargers, smoke markers , illumination flares[source] | — |
|---|
| Rockets | air-to-surface rockets can be fitted after a minor retrofit.[source] | 80 mm S-8 rocket, S-25 rocket[source] |
|---|
| Bombs | Mk 46 Mod V torpedoes, conventional bombs[source] | FAB-M62, ZB-500, KAB-500Kr[source] |
|---|
| Country of origin | United States[source] United States[source] | — |
|---|
| National origin | — | Russia[source] |
|---|
| Designer | — | Yakovlev[source] |
|---|
| Built by | — | Irkut Corporation Sokol Aircraft Plant[source] |
|---|
| Primary users | — | Russian Aerospace Forces Bangladesh Air Force Algerian Air Force Myanmar Air Force Islamic Republic of Iran Air Force[source] |
|---|
| Variant | — | Alenia Aermacchi M-346 Master[source] |
|---|
| Guns | — | SNPU-130 gun pod[source] |
|---|
| Stall speed | — | 165 km/h (103 mph, 89 kn)[source] |
|---|
| g limits | — | + 8.0 − 3.0[source] |
|---|
| Wing loading | — | 276.4 kg/m 2 (56.6 lb/sq ft)[source] |
|---|
| Thrust/weight | — | 0.70[source] |
|---|
| Missiles | — | R-73 infrared-homing short-range air-to-air missiles[source] |
|---|
| Alternative designation | — | Yak-130[source] |
|---|
Maximum take-off; Yak-130 · Max takeoff weight
