At a glance
Measured figures
CP-140 Aurora · Length
Single sourceCP-140 · Length
Single sourceConfiguration

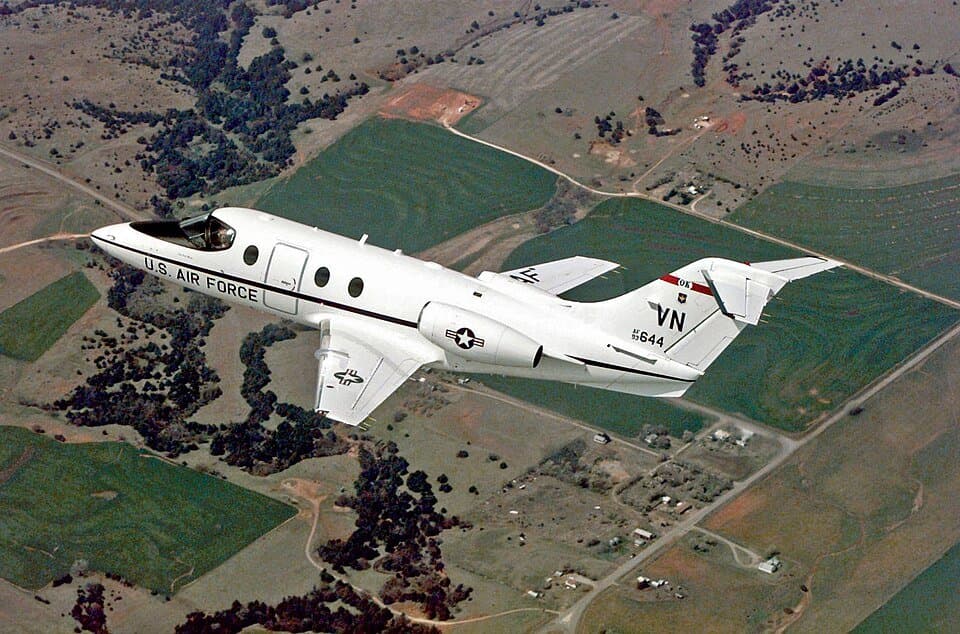

| Specification | Lockheed CP-140 Aurora | Raytheon T-1 Jayhawk |
|---|---|---|
| Type | Maritime patrol aircraft (CP-140) MPA trainer aircraft (CP-140A)[source] | Trainer aircraft[source] |
| Manufacturer | Lockheed Corporation[source] | Raytheon Hawker Beechcraft[source] |
| Status | Active (CP-140M only)[source] | Active service[source] |
| Primary user | Royal Canadian Air Force[source] | — |
T-1A · Length
Single source48 ft 5 in (14.76 m)[source]
Gross; CP-140 Aurora · Gross weight · Maximum gross weight
Single sourceGross; CP-140 · Gross weight
Single source61,362 lb (27,833 kg)[source]
64,410 kg[source]CP-140 Aurora · Maximum gross weight
Empty; T-1A · Empty weight
Single sourceMaximum take-off; T-1A · Max takeoff weight
Single sourceMaximum; CP-140 Aurora · Maximum speed · Maximum speed
Single sourceMaximum; CP-140 · below cruise ceiling
Single source375 kn (432 mph, 694 km/h) below cruise ceiling[source]
750 km/h[source]CP-140 Aurora · Maximum speed
Cruise; T-1A · long range cruise at 41,000 ft (12,000 m)
Single sourceMaximum; T-1A · at 27,000 ft (8,200 m)
Single sourceCP-140 · 4 × Allison T56-A-14-LFE turboprop engines each
Single source4 × Allison T56-A-14-LFE turboprop engines, 4,909 hp (3,661 kW) each[source]
T-1A · 2 × Pratt & Whitney Canada JT15D -5B turbofan thrust each
Single source2 × Pratt & Whitney Canada JT15D -5B turbofan , 2,900 lbf (13 kN) thrust each[source]
CP-140 · on station at 1,000 nmi (1,151 mi; 1,852 km) radius
Single source8 hours 12 minutes on station at 1,000 nmi (1,151 mi; 1,852 km) radius[source]
CP-140 · Hardpoints: 8 in weapons bay; 10 under-wing from capacity with a capacity of
Single sourceCP-140 · total in weapons bay, with provisions to carry combinations of
Single sourceHardpoints: 8 in weapons bay; 10 under-wing from 611 to 2,450 lb (277 to 1,111 kg) capacity with a capacity of 4,800 lb (2,177 kg) total in weapons bay, with provisions to carry combinations of:[source]
Bars compare reported quantities only. A larger figure does not make a system better; configurations and test conditions differ.
| Number built | 21 (18 CP-140M + 3 CP-140A)[source] | 180[source] |
|---|
| Introduction date | 1980[source] | 17 January 1992[source] |
|---|
| First flight | 22 March 1979 (CP-140)[source] | 5 July 1991[source] |
|---|
| Retired | 2011 (CP-140A only)[source] | — |
|---|
| Developed from | Lockheed P-3 Orion[source] | Beechjet/Hawker 400A[source] |
|---|
| Fuel capacity | 7,661 imp gal (9,200 US gal; 34,828 L) usable fuel in one fuselage tank and four wing integral tanks[source] | — |
|---|
| Hardpoints | 8 in weapons bay; 10 under-wing from 611 to 2,450 lb (277 to 1,111 kg) capacity with a capacity of 4,800 lb (2,177 kg) total in weapons bay, with provisions to carry combinations of: Other: signal chargers, smoke markers , illumination flares[source] | — |
|---|
| Aspect ratio | 7.5[source] | 7.5:1[source] |
|---|
| Airfoil | root: NACA 0014 (modified) ; tip: NACA 0012 (modified)[source] | Mitsubishi MAC510[source] |
|---|
| Propellers | 4-bladed Hamilton Standard 54H60, 13 ft 6 in (4.11 m) diameter constant-speed fully-feathering reversible-pitch propellers[source] | — |
|---|
| Maximum transit speed | 395 kn (455 mph; 732 km/h) at optimum altitude[source] | — |
|---|
| FAR balanced field length | 7,900 ft (2,408 m)[source] | — |
|---|
| Take-off distance to 50 ft (15 m) | 6,000 ft (1,829 m)[source] | — |
|---|
| Landing distance from 50 ft (15 m) | 3,200 ft (975 m) at 114,000 lb (51,710 kg) landing weight[source] | — |
|---|
| Other | signal chargers, smoke markers , illumination flares[source] | — |
|---|
| Rockets | air-to-surface rockets can be fitted after a minor retrofit.[source] | — |
|---|
| Bombs | Mk 46 Mod V torpedoes, conventional bombs[source] | — |
|---|
| Country of origin | United States[source] United States[source] | Vereinigte Staaten[source]Country of design · Entwurfsland |
|---|
| Primary users | — | United States Air Force Japan Air Self-Defense Force[source] |
|---|
| Manufactured | — | 1992–1997[source] |
|---|
| Capacity | — | 4 passengers[source] |
|---|
| Stall speed | — | 93 kn (107 mph, 172 km/h) CAS[source] |
|---|
