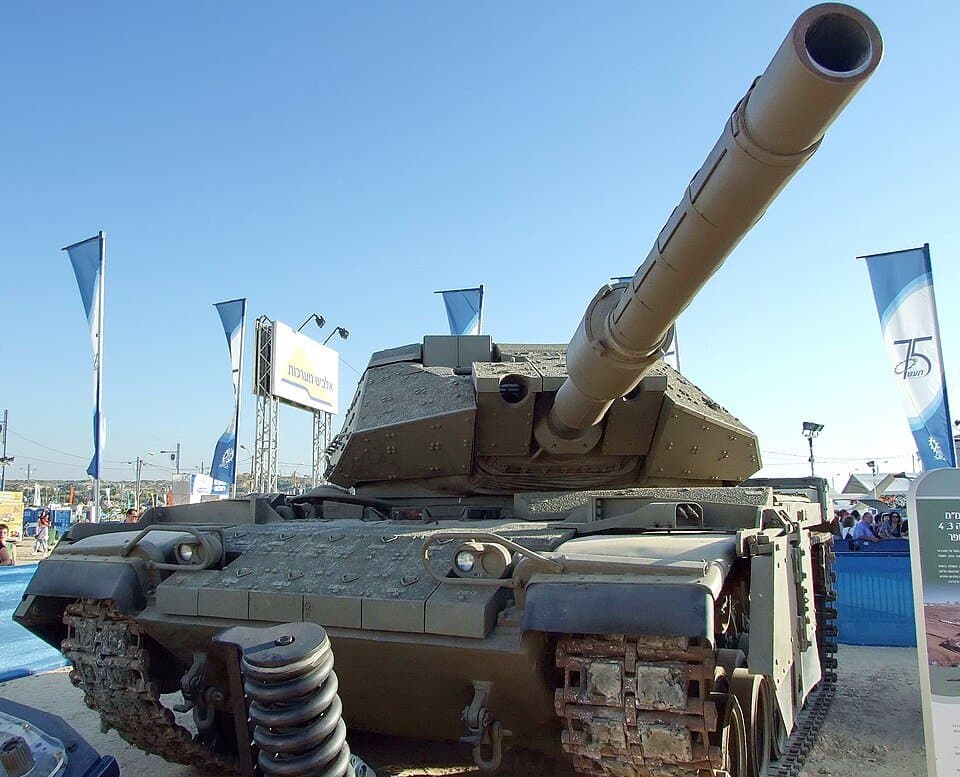

Reference photo · Configuration may differ
Credit
Staff Sgt. Jason Cochran · Public domain · Resized · Public domain · Source ↗ · Modified
FORCETALLY
Loading the evidence…
Preparing your view.
Preparing your view.
At a glance
K2 Black Pantherlarger figure on 0 of 1
Measured figures
Chassis
Single sourceOverall
Single sourceConfiguration
| Specification | K2 Black Panther | Sabra (tank upgrade package) |
|---|---|---|
| Type | Main battle tank[source] | Main battle tank[source] |
| Place of origin | South Korea[source] | — |
| In service | 2014–present[source] | 2007–present[source] |
| Used by | See Operators[source] | Turkish Land Forces[source] |
Sabra (tank upgrade package)larger figure on 1 of 1
Counts only measures both sources give with the same scope. A larger figure is not a better system.
Overall: 10.8 meters (35 ft 5 in) Chassis : 7.5 meters (24 ft 7 in)[source]
Length
Single source6.95 m (22.8 ft)[source]
Combat weight
Single sourceCurb weight
Single sourceCurb weight : 55 metric tons (54 long tons; 61 short tons) Combat weight: 56 metric tons (55 long tons; 62 short tons)[source]
Mk I
Single sourceMk II
Single sourceMaximum; Cross country Acceleration from
Single sourceMaximum; Paved road
Single sourcePaved road: 70 km/h (43 mph) Cross country: 50 km/h (31 mph) Acceleration from 0–32 km/h (0–20 mph) in 7.47 seconds (MT883 Ka-501) or 8.77 seconds (DV27K)[source]
Maximum; Mk I
Single sourceMaximum; Mk II & III
Single sourceBatch I: STX Engine/ MTU Friedrichshafen MT883 Ka-501 4- short stroke , 12-cylinder water-cooled diesel, dry weight: 2,064 kg Batch II-IV: HD Hyundai Infracore DV27K 4- long stroke , 12-cylinder water-cooled diesel, dry weight: 2,550 kg
Single sourceEngine
Single sourceBatch I: STX Engine/ MTU Friedrichshafen MT883 Ka-501 4- short stroke , 12-cylinder water-cooled diesel, dry weight: 2,064 kg 1,500 hp (1,103 kW) Batch II-IV: HD Hyundai Infracore DV27K 4- long stroke , 12-cylinder water-cooled diesel, dry weight: 2,550 kg 1,500 hp (1,110 kW)[source]
Continental AVDS-1790-5A diesel engine (Mk I) MTU MT 881 KA-501 diesel engine (Mk II & III) Mk I
Single sourceMk II & III
Single sourceBars compare reported quantities only. A larger figure does not make a system better; configurations and test conditions differ.
| Designer |
|---|
Agency for Defense Development Hyundai Rotem Poongsan Corporation Hanwha Systems Samyang Comtech Hyundai WIA Doosan Mottrol[source] |
Israel Military Industries[source] |
| Designed | 1995–2008[source] | — |
|---|
| Manufacturer | Hyundai Rotem[source] | Israel Military Industries ROKETSAN (under license)[source] |
|---|
| Unit cost | ₩ 7.8 billion (production batch 1) US$ 8.5 million (constant 2009 USD)[source] | $3.13 million (Sabra Mk. 1) $3.36 million (Sabra Mk. 2)[source] |
|---|
| Produced | 2008–present[source] | — |
|---|
| No. built | Republic of Korea Army : Batch I: 100, Batch II: 106, Batch III: 54, Batch IV: 150 (ordered) Polish Land Forces : Batch I: 180, Batch II: 180 (ordered) Total: 440[source] | — |
|---|
| Armor | MIL-12560H armor steel and silicon carbide non-oxide ceramic plate along with ERA add-on armor[source] | Steel laminate (Mk I) Explosive reactive armor (Mk II~)[source] |
|---|
| Main armament | Hyundai WIA CN08 120 mm 55 caliber smoothbore gun (40 rounds, 16 available in the bustle autoloader )[source] | 120 mm MG253 gun[source] |
|---|
| Secondary armament | 1× 12.7×99mm NATO K6 heavy machine gun (3,200 rounds) 1× 7.62×51mm NATO coaxial machine gun (12,000 rounds)[source] | 7.62 mm M240 coaxial weapon 7.62 mm MG3 A1 machine gun 12.7 mm M85 machine gun 60 mm internal mortar[source] |
|---|
| Power/weight | 27.3 hp/t (20.35 kW/t)[source] | 16.95 hp/ton (Mk.II)[source] |
|---|
| Transmission | Batch I-III: RENK HSWL 295 TM (5 forward, 5 reverse gears), dry weight: 2,450 kg Batch IV: SNT Dynamics EST15K (6 forward, 3 reverse gears), dry weight: 2,500 kg[source] | Allison CD850-6BX (Mk. I) Renk 304S transmission (Mk II & III)[source] |
|---|
| Suspension | Semi-active in-arm suspension unit (ISU) with dynamic track tension system (DTTS)[source] | Independent, trailing arm[source] |
|---|
| Fuel capacity | 1,296 liters (342 U.S. gal)[source] | 200 L (44 imp gal; 53 US gal) (internal fuel)[source] |
|---|
| Payload capacity | — | 42 rounds (main gun) 900 rounds (secondary gun)[source] |
|---|
| Country of origin | — | United States, Israel, Turkey[source] |
|---|
| Reported operators | — |
|
|---|
55 tonnes (61 short tons ; 54 long tons ) (Mk I) 59 tonnes (65 short tons ; 58 long tons ) (Mk II)[source]
48 km/h (30 mph) (Mk I) 55 km/h (34 mph) (Mk II & III)[source]
Continental AVDS-1790-5A diesel engine (Mk I) MTU MT 881 KA-501 diesel engine (Mk II & III) 908 hp (677 kW) (Mk I) 1,000 hp (750 kW) (Mk II & III)[source]
